Today, ZMotion shares how to do hardware wiring for EtherCAT motion control card ECI2828 and how to use LabVIEW to process motion development of continuous interpolation for small segments.

Let's begin, learn together !

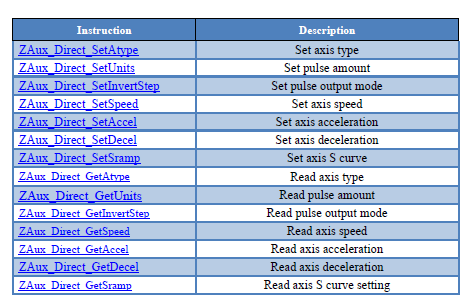

④ Operate link handle "g_handle" through instructions that are relative to axis parameters configuration, set axis parameters for controller, and look-ahead modes are below.

set corner deceleration:

set corner deceleration angle:

set small-round speed limit radius:

read global variables:

(3) Look ahead motion of small-segment continuous interpolation through LabVIEW.

① new build Vi, in the front board, right click mouse to select widget to do UI design. Please see image, the left is connection interface, the right is the position of point corresponding to multiple segments.

② right-click in the program edit box, select "Programming" - "Structure" - "Tile Sequence Structure", and select "Add Frame in Behind", then add "while" loop in added frame, add "event structure" in "while" loop.

Through "timeout" processing in event structure, watch controller's motion status, motion speed, motion position, remain buffers and current mark running line No..

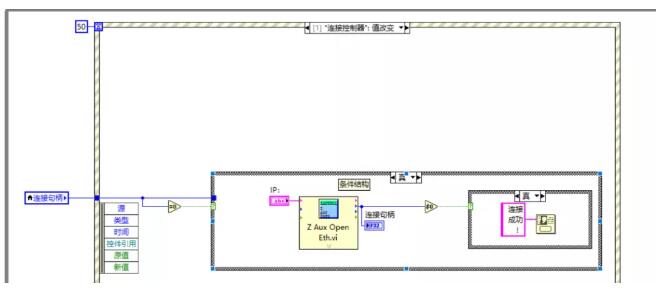

③ select event structure, right click to select "add event branch", then select "connect" value changing. In this event branch, use "Z Aux Open Eth.vi" function to do connection with controller for achieving "connect to controller" button function.

④ select event structure, right click to select "add event branch", and select "disconnect"value changing. Then, use "ZAux Close.vi" function to disconnect to controller, which means controller disconnection button function can be achieved.

⑤ select event structure, right click to select "add event branch", and select "coordinate clearing" value changing. Then, use "Z Aux Direct Set Dpos.vi" function to set axis position of controller as 0, which means controller coordinate clearing button function can be achieved.

⑥ select event structure, right click to select "add event branch", and select "stop" value changing. Then, use "Z Aux Direct Single Cancel.vi" function to achieve axis motion stop function.

⑦ select event structure, right click to select timeout event, and select "start" value changing. Then, use relative Vi functions in this event branch to set motion parameters of controller and to move, which means controller "move" button function can be achieved.

A. call the Vi function related to the axis parameter setting in the 0th frame of the "cascade sequence structure "in the event branch, and first set the controller axis parameters and open continuous interpolation function.

B. call frame 1 of "cascade sequence structure "in the event branch to set relative look-ahead mode and other parameters that correspond to Vi function, such as, acceleration and deceleration, initial speed, deceleration angle, stop angle, etc., motion process becomes smoother.

C. call "action" small-segment continuous interpolation motion in frame 2 of "cascade sequence structure "in the event branch, and judge whether remain buffer is enough for keeping loading and entering, also read the current motion mark No. and show in the interface.

Compile running routine, at the same time, connect to ZDevelop software to debug, then watch motion control axis parameters and motion situation.

(1) "CornerMode" function -- look-ahead configuration description

The speed look-ahead function of the system can carry out overall planning for instructions, namely, the overall planning of the speed of each segment, and then cooperate with the acceleration and deceleration control in the command segment, then the machine tool can maintain high-speed operation, improve efficiency, and make the load movement smoother, the system is realized through the Merge speed fusion function.

On the other hand, on the basis of ensuring high-speed operation, in order to limit mechanical impact and overcut, etc., it is necessary to perform deceleration identification, and identify trajectory changes in advance.

Thereby decelerating in advance according to the safe deceleration rate, and the system realizes it through the deceleration/stop fusion function and the shock suppression function. On the whole, the speed forward function can not only improve the efficiency of the whole machine, but also reduce the impact and increase flexibility, reduce the wear and tear of parts, and increase the service life of equipment.

Corner deceleration function can solve problems, when the angle between the commands is too large, if it is still running at a high speed, a large mechanical impact will be generated at the angle, and the trajectory will deviate.

Then the controller will identify the included angle of trajectory changes between commands in advance, compare its relationship with the deceleration/stop angle, and decide whether to decelerate in advance to ensure a smooth transition at the command connection.

(2) Watch axis motion through oscilloscope

As shown in the figure below, when OA transitions to position AB, the angle is smaller than the deceleration angle, and S1-S2 does not decelerate. When AB transitions to BC, the angle is greater than the deceleration angle, and the deceleration process is performed. For example, S2-S3, BC transitions to CD If the angle is greater than the stop angle, the speed needs to be reduced to 0, as in S3-S4 section position processing.

Connect the ZDevelop software to monitor the controller status through the axis parameters on the right side of the software, or click "View" → "Scope" to open the oscilloscope to watch the axis movement.

A. After opening chamfer mode, image running effect will process chamfer in the corner, please see below.

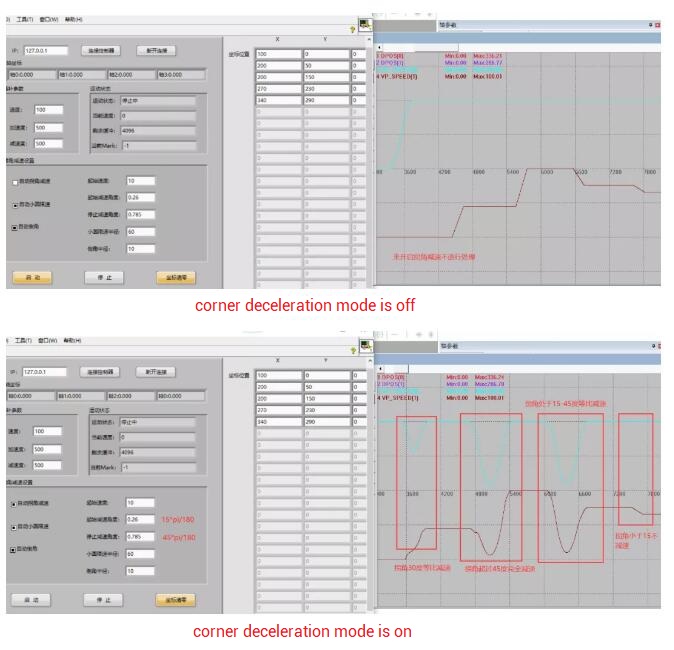

B. After opening corner deceleration mode, corner position will process when the angle of corner achieved one certain deceleration angle or stop angle.

C. Video Description: zmotionglobal@7322
