Zmotion Laser Processing


Laser processing is a non-contact processing method, which will not generate frictional resistance between the tool and the surface of the workpiece, also will not directly impact the workpiece. The workpiece will hardly be deformed, and the laser processes locally, which means there is no influence on the non-laser irradiated part basically, so laser processing is a high-speed, high-efficiency, and high-precision workpiece processing method.

What’s more, laser technology combines light with electromechanical technology. While processing, laser beam’s moving speed, power density and direction all can be adjusted flexibly.

At the same time, laser can be matched with CNC system easily to process complex workpieces. In this way, realize corresponding applications under different layers and ranges.

-------------------------------------------------------------------------------------------------------------------------

Based on Zmotion motion control algorithm, plus laser processing and galvanometer technology R&D,  Zmotion develops one motion controller specialized for laser – ZMC408SCAN-V22, which integrates motion control with laser galvanometer control.

According to the hardware controller,  you can achieve differentiated, efficient, accurate, and flexible laser applications, even that can be customized solution.


[Zmotion Open Laser Galvanometer Motion Controller | Hardware Interface]



ZMC408SCAN-V22


ZMC408SCAN-V22

ZMC4XX   Laser Galvanometer High-Performance Motion Controller

Basic Info

Ø   Motion Axis: 32 EtherCAT & pulse axes (4 / 6 / 8 / 12 / 16 / 32 axes)

Ø   IO: 24 IN & 12 OUT

Ø   Motion Control Functions: jog, interpolation (linear, circular, continuous), electronic cam, electronic gear, robotic arm.

Ø   Programming: online / simulation, by RTBasic in  RTSys or by C++ / C# / LabView / Python, etc.

Performance

ü   high-precision PSO inside: equal-space precise output

ü   flexibly control all kinds of mainstream lasers: FIBER, IPG, YLR, YLS, etc.

ü   hybrid interpolation: Scan-Axis + Pulse-Axis + EtherCAT-Axis

ü   multi-controller & multi-scan process at the same time: efficiency doubled

ü   2 galvanometer interfaces: 2D/3D scan, XY2-100 protocol

ü   control laser scan and get galvanometer feedback: complete efficient & accurate laser control

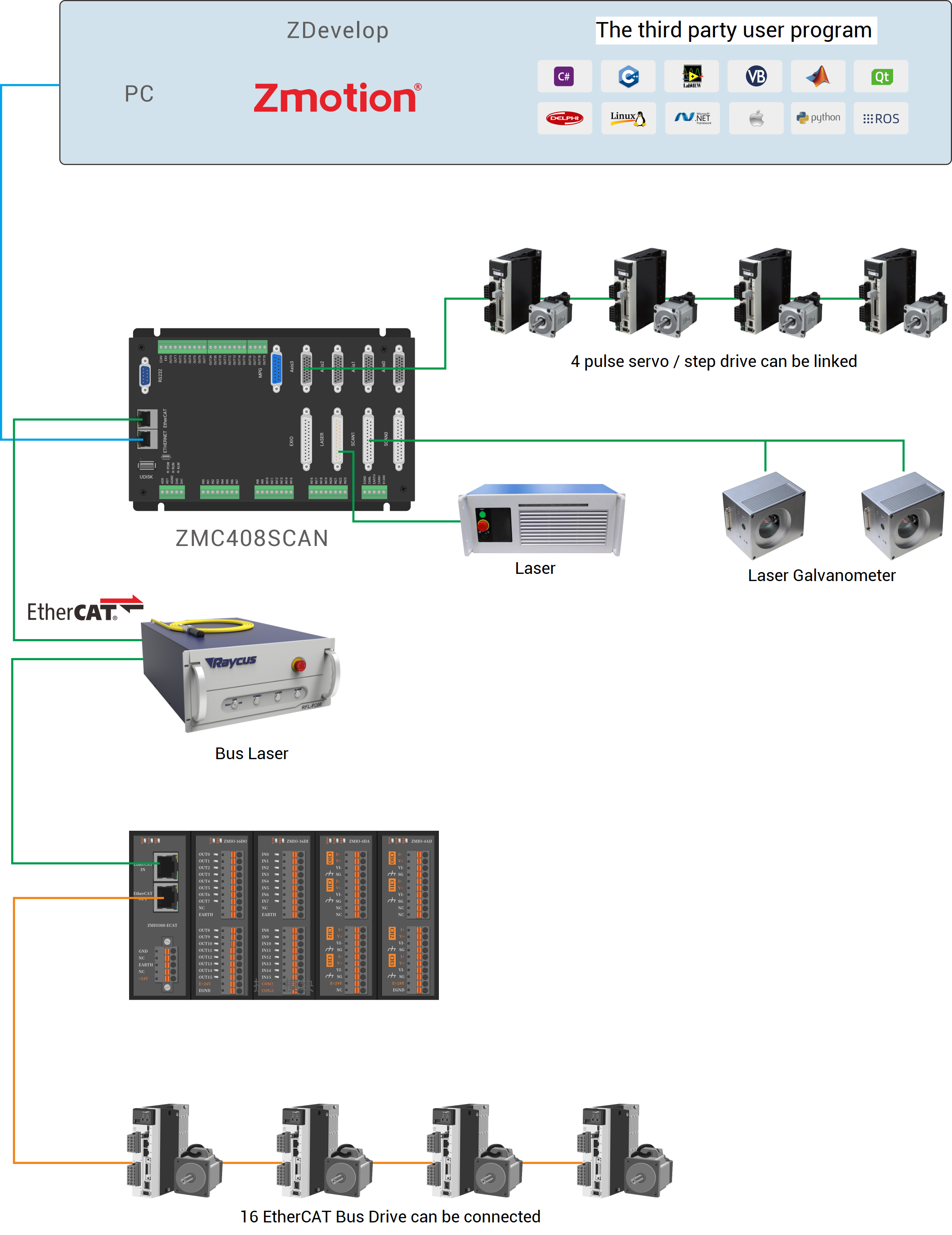

[Zmotion Open Laser Galvanometer Motion Controller | Application Reference Diagram]





[Zmotion Open Laser Galvanometer Motion Controller | Applications & Solutions]


A.      In industry of 3C electronics, semi-conductor, new energy, photovoltaics, automobiles, medical care, etc.

Ø   laser galvanometer marking

Ø   laser galvanometer welding

Ø   laser galvanometer cutting

Ø   linkage laser processing in large-format XY + scan-Axis

Ø   XYZAC 5-axis interpolation


B.      In industry of Lithium Battery

Ø   tab welding

Ø   top cover welding

Ø   module and PACK welding

Ø   tab cutting

Ø   tab marking

Ø   laser cleaning




[Zmotion Open Laser Galvanometer Motion Controller | Motion Control & Laser Galva Solution]


*Zmotion Catalogue of Laser Galvanometer Solution*


“Zmotion always puts quality at the first place, regards customer requirements as the first-priority, bases on creating value and pursues improvement of products performance. What we do is to supply smart manufacturing with more valuable motion control products, solutions and services”.


“Tips”

n    "Support"  &  "Download" & “Contact Us” can help you.
