Here, the same hardware is used, ECI2828 motion control card.

Let's review it briefly.

--Basic Introduction--

ECI2828 not only belongs to economical motion control card, but also supports rich motion control functions, such as, up to 16 axes linear interpolation, any circular interpolation, space arc, helical interpolation, electronic cam, synchronous follow, virtual axis, robot instructions, etc. And real-time motion control can be achieved through optimized network communication protocol.

--Hardware Configuration--

ECI2828 motion control card is linked with PC through ethernet and RS232, then card can receive the command from PC to run. When there is no enough motion axes, IO or analog resources, expansion modules can be connected through EtherCAT bus and CAN bus.

--Programming Method--

For Zmotion motion controller and motion control card, there are two programming methods, host computer programming languages or ZBasic, ZPLC, ZHMI that are developed by Zmotion. Here, upper computer programming platform QT is used for ECI2828, and VC, VB, VS, C++, C# , and others all can be used. It only needs to call dynamic library "zmotion.dl" when programming is running. While debugging, we could connect ECI2828 to  ZDevelop that is  one free programming software launched by Zmotion itself for debugging and observing.

(1) New Build Qt Project

a. build one new Qt project

b. select project path

c. select Qt compile set (kits)

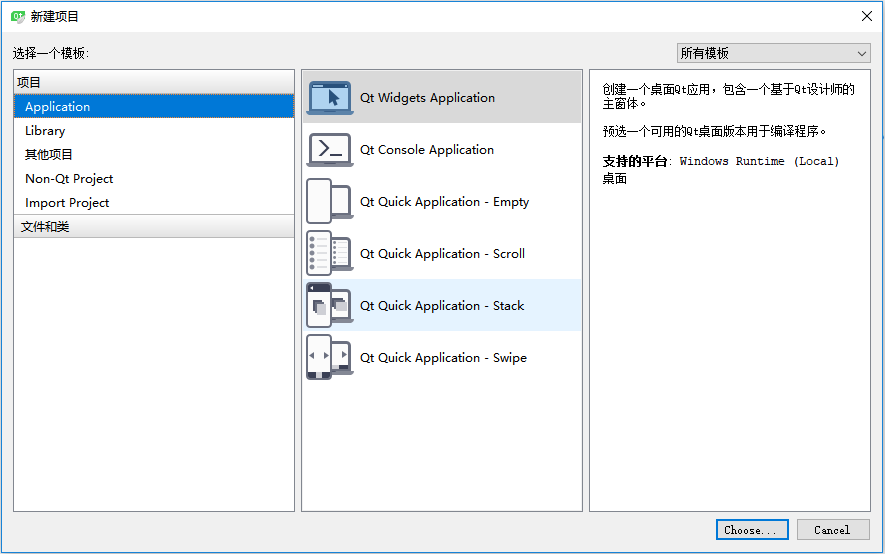

d. select basic type

(2) Copy Files Related to Function Library to New Created Project

(3) Add Static Library (zmotion.lib) of Function Library to New Created Project

a. add function library 1

b. add function library 2

c. add function library 3

d. add head file related to function library to project

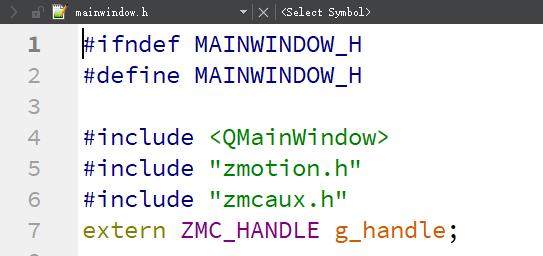

e. state head file and define connection handle

For host computer development, Zmotion provides one uniform PC function library, there are PC programming manual and examples of each platform and each programming language. They can be referred from here or contact us directly.

Generally, ethernet is used to connect controller to IPC, the corresponding connection interface is  ZAux_OpenEth(), if the connection is successful, the interface will return one link handle, then it can control the controller through this handle.

Next, let's see some basic operation PC commands related to continuous trajectory processing, pause and resume.

(1) how to build the connection

(2) how to achieve continuous interpolation and S curve

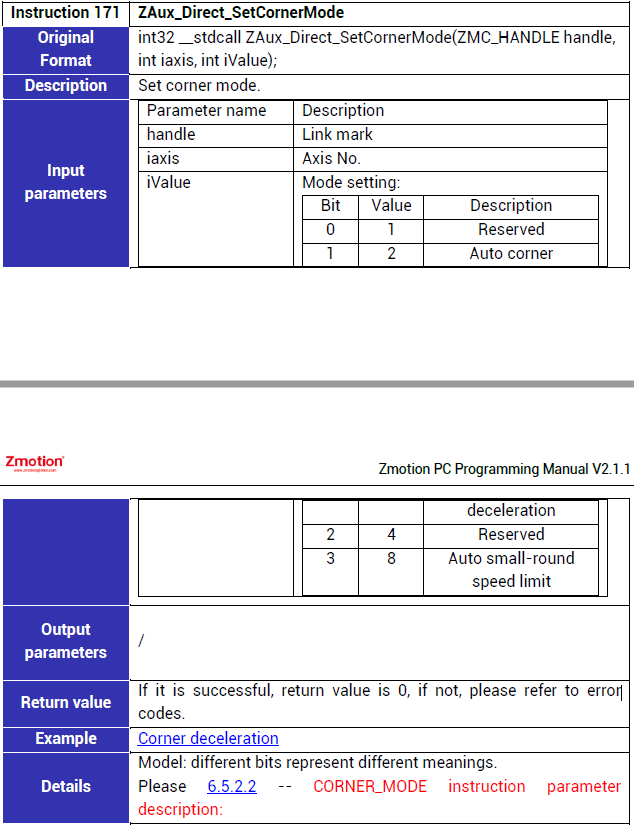

(3) how to set corner mode

(1) Routine in Qt Interface

(2) Development Steps

a. call controller link interface  "ZAux_OpenEth()" in construct function to build the connection with controller, when connected successfully, open timer to monitor controller axis information.

b. update each axis' position and speed information through the timer.

(3) Processing of Continuous Small-Segment

a. use  ZCADToMore2.0 mapping tool to export dxf format as Z3P format and download it into controller, the file name in controller should be ZCAD.z39 (for CAD usage, you could refer to "How To Use Zmotion CAD Mapping Software with Motion Controller" -- CAD Video Description)

b. search Z3P file in controller

c. open Z3P file through "open" button"

d. call stop command to stop axis motion through stop button

(4) Pause & Resume of Small-Segment Continuous Trajectory Processing

(1) Copy Corresponding Linux Library to Project Folder

(2) Add Function Library's Static Library (libzmotion.so) to New Created Project.

a. add function library 1

b. add function library 2

c. add function library 3

d. compile again, then run directly.

(3) Debug & Monitor

Compile and run the routine, at the same time connect to ZDevelop software to debug. In this way, axis parameters and motion situation all can be watched in real-time.

a. small-segment trajectory processing X-Y position waveform

b. small-segment trajectory processing speed waveform (corner deceleration is  OFF in continuous interpolation)

c. small-segment trajectory processing speed waveform (corner deceleration is  ON in continuous interpolation)

That's all, thank you for your reading -- EtherCAT Motion Control Card Development Tutorial QT (2) | Small-Segment Continuous Trajectory Processing & Pause & Resume
