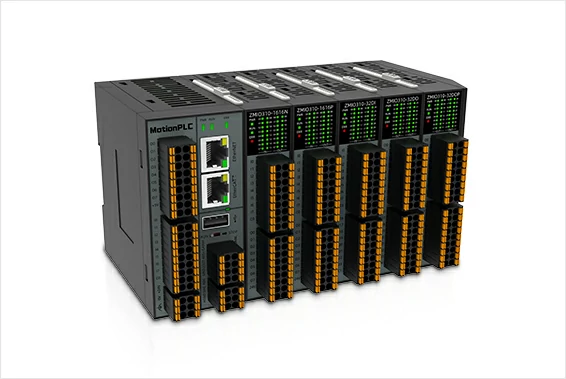

Product name ：XPLC300H
XPLC300H high-performance multi-axis motion controller is a stand-alone motion controller that is compatible EtherCAT with pulse type. The controller itself supports 16 axes at most to achieve complex continuous trajectory control requirements.
XPLC300 series high-performance multi-axis motion controllers can be applied in electronic semiconductor equipment (testing equipment, assembly equipment, locking equipment, soldering machine), dispensing equipment, printing and packaging equipment, textile and garment equipment, stage entertainment equipment, medical equipment, assembly line, etc.
It has EtherCAT axis, single-ended pulse axis, and single-ended encoder interface.
Basic Motion Control Functions: point motion, electronic cam, linear interpolation, circular interpolation, continuous interpolation, SCARA, etc.
Special Motion Control Function: HW hardware comparison output, high-speed latch, PWM, etc., (HW model)
UDISK can be used to write and read files, and update the program, which is convenient to remote support and maintain.
It can be programmed in multi-file and multi-task by BASIC, also, PC program and controller inner controller can work at the same time.
Model | XPLC308H | XPLC308H-HW | |
Basic Axes | 8 | ||
All Axes | 16 (basic axis + virtual axis) | ||
EtherCAT | √ | ||
OUT (single-ended pulse axis) | 8 | ||
IN (single-ended encoder axis) | 4 | ||
Digital IN | 16 (8 high-speed + 8 general) | ||
Digital OP | 16 (16 high-speed) | ||
Max Digital IN to be Expanded | ≤4096 | ||
Max Digital OP to be Expanded | ≤4096 | ||
AD Input | 2 (0-10V, 12bit) | ||
DA Output | 2 (0-10V, 12bit) | ||
Max AD to be Expanded | ≤512 | ||
Max DA to be Expanded | ≤512 | ||
EtherNET | 1 | ||
EtherCAT | 1 | ||
CAN | 1 | ||
RS232 | 1 | ||
RS485 | 1 | ||
UDISK | 1 | ||
High-Speed Latch | 4 | ||
Hardware Comparison Output HW | 0 | 4 (OUT0-3) | |
General PWM | 0 | 4 (OUT0-3) | |
Point Motion | √ | ||
Electronic Cam | √ | ||
Linear Interpolation | √ | ||
Circular Interpolation | √ | ||
Continuous Interpolation | √ | ||
Robotic Arm | XPLC308H-R | XPLC308H-HW-R | |
Program Space | 15M Byte | ||
Power Down Storage | √ | ||
Dimensions | 95*93*46 | ||
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| XPLC300H Vertical EtherCAT Motion Controller User Manual V2.0.2 | VV2.0.2 | 2.62M | Download |
Features
Parameters

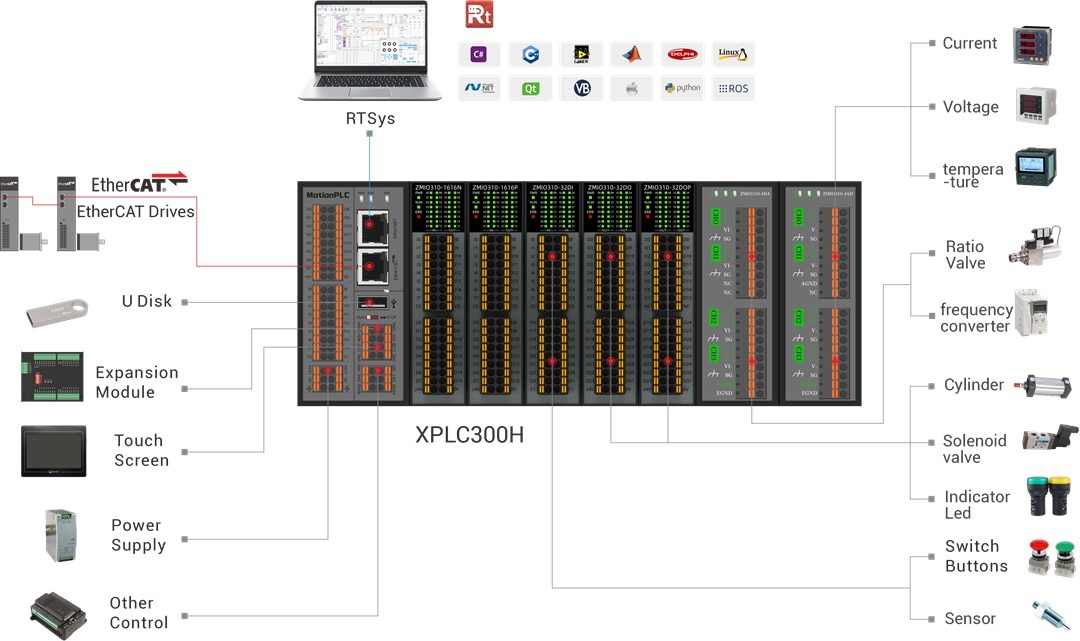

System Architecture
