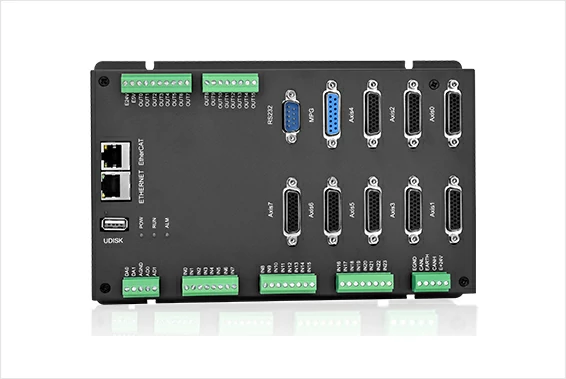

Product name ：ZMC308H
ZMC308H high-performance multi-axis motion controller is a stand-alone motion controller that is compatible EtherCAT with pulse type. The controller itself supports 8 axes at most to achieve complex continuous trajectory control requirements.
ZMC3 series high-performance multi-axis motion controllers can be applied in robots (SCARA, Delta, 6 joints), electronic semiconductor equipment (testing equipment, assembly equipment, locking equipment, soldering machine), dispensing equipment, non-standard equipment, printing and packaging equipment, textile and garment equipment, stage entertainment equipment, medical equipment, assembly line, etc.
There are EtherCAT axis, single-ended pulse axes, differential pulse axes and differential encoder interfaces.
It supports MPG handwheel encoder specialized interface.
Basic Motion Control Functions: point motion, electronic cam, linear interpolation, circular interpolation, continuous interpolation, Robot instruction, etc.
Special Motion Control Functions: HW hardware comparison output, high-speed latch, PWM, etc., and for special models, it supports 5V/ 24V laser PWM output (ZMC308HL series).
Built-in Linux system.
Model | ZMC308H | ZMC308H-HW | ZMC308HLx-HW |
Basic Axes | 8 | ||
All Axes | 32 (basic axis + virtual axis) | ||
EtherCAT | √ | ||
AXIS (differential pulse axes) | 8 (directional pulse + encoder + digital I/O) | ||
OUT (single-ended pulse axes) | 4 | ||
MPG ( handwheel encoder) | 1 | ||
Digital IN | 24 (General) + 16 (AXIS ) + 12(MPG) | ||
Digital OP | 24 (General) + 16 (AXIS ) | ||
Max Extended Digital IN | ≤4096 | ||
Max Extended Digital OP | ≤4096 | ||
AD Input | 2 (0-10V, 12bit) | ||
DA Output | 2 (0-10V, 12bit) | ||
Max Extended AD | ≤512 | ||
Max Extended DA | ≤512 | ||
EtherNET | 1 | ||
EtherCAT | 1 | ||
CAN | 1 | ||
RS232 | 1 | ||
RS485 | 1 | ||
UDISK | 1 | ||
High-Speed Latch | 8 | ||
Hardware Comparison Output HW | 0 | 4 | 4 |
General PWM | 0 | 8 | 8 |
Laser PWM | 0 | 0 | 6 |
Point Motion | √ | ||
Electronic Cam | √ | ||
Linear Interpolation | √ | ||
Circular Interpolation | √ | ||
Continuous Interpolation | √ | ||
SCARA Robotic Arm | √ | ||
Program Space | 15M Byte | ||
Power Down Storage | √ | ||
Dimensions | 221*114*37 | ||
No. | Models | Description |
1 | ZMC308H | Not support H ardware comparison output, not support laser PWM output. |
2 | ZMC308H-HW | support H ardware comparison output, not support laser PWM output. |
3 | ZMC308HL5 | Not support H ardware comparison output, support 5V laser PWM output. |
4 | ZMC308HL5-HW | support H ardware comparison output, support 5V laser PWM output. |
5 | ZMC308HL24 | Not support H ardware comparison output, support 24V laser PWM output. |
6 | ZMC308HL24-HW | support H ardware comparison output, support 24V laser PWM output. |
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMC308H Motion Controller User Manual V2.2.1 | V2.2.1 | 2.92MB | Download |
Features
Parameters

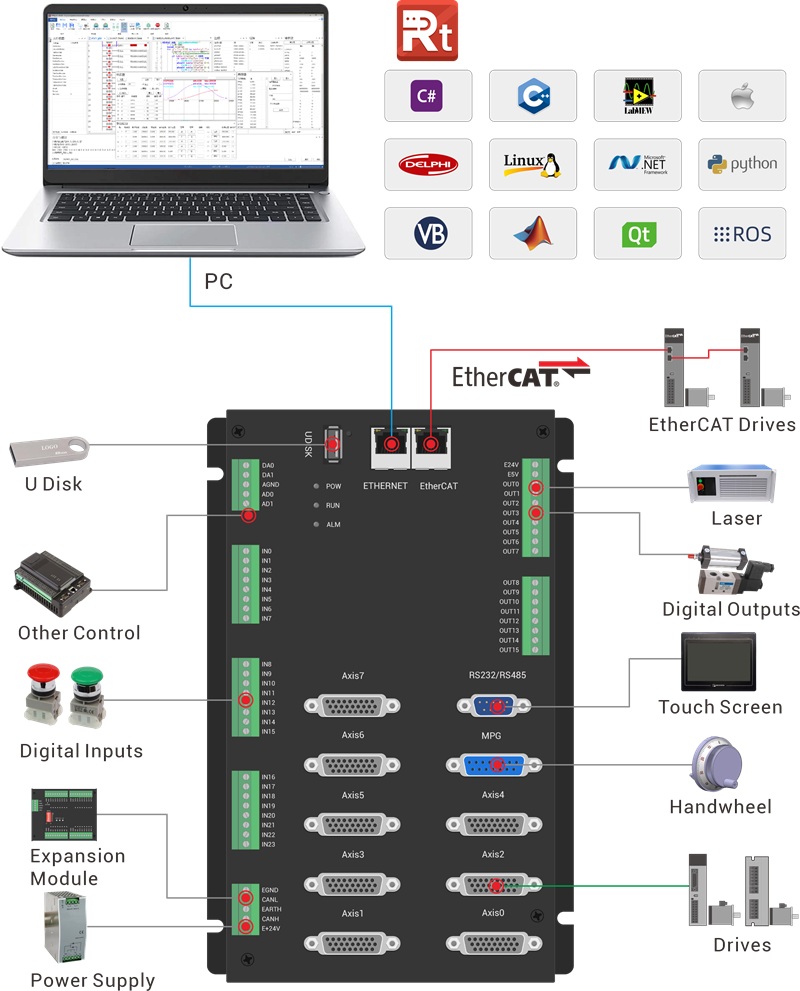

System Architecture
