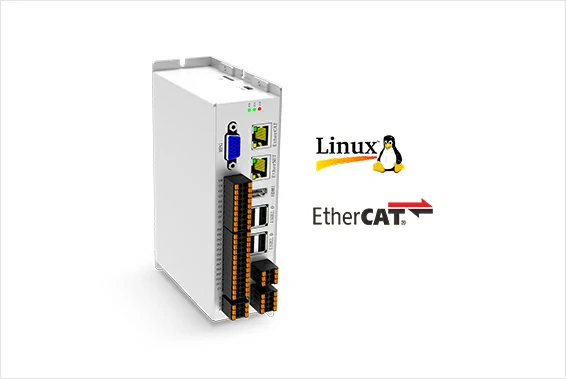

Product name ：ZMC600M
ZMC600M high-performance multi-axis motion controller is a EtherCAT stand-alone motion controller, which supports max 32 axes for complex continuous trajectory control.
ZMC6XX high-performance multi-axis motion controllers can be applied in robots (SCARA, Delta, 6 joints), electronic semiconductor equipment (testing equipment, assembly equipment, locking equipment, soldering machine), dispensing equipment, non-standard equipment, printing and packaging equipment, textile and garment equipment, stage entertainment equipment, medical equipment, assembly line, etc.
Linux system is built in.
There are interfaces of EtherCAT, single-ended pulse axes, single-ended encoders.
Basic Motion Control Functions: point motion, electronic cam, linear interpolation, circular interpolation, continuous interpolation, robot algorithms, etc.
Special Motion Control Functions: HW hardware comparison output, high-speed latch, PWM, etc., and for special models (ZMC600ML series), it supports 5V/ 24V (can't be switched) laser specialized PWM push-pull output.
One UDISK interface is equipped, for writing and reading files, updating the program, easy to do remote support and maintain.
It can be programmed in multi-file and multi-task by BASIC, also, PC program and controller inner RTBasic program can work at the same time.
Model | ZMC600ML24-AX32-MO8-HW (example) |
Basic Motor Axes | 32 |
Total Axes | 32 (basic axis + virtual axis) |
EtherCAT | √ |
OUT (single-ended pulse axis) | 4 |
IN (single-ended encoder axis) | 3 |
Digital IN | 24 |
Digital OP | 16 |
Max Extended DI | ≤4096 |
Max Extended DO | ≤4096 |
AD Input | 2 (0-10V, 12bit) |
DA Output | 2 (0-10V, 12bit) |
Max Extended AD | ≤512 |
Max Extended DA | ≤512 |
EtherNET | 1 |
EtherCAT | 1 |
CAN | 1 |
RS232 | 1 |
RS485 | 1 |
USB | 4 |
Type-C | 1 |
High-Speed Latch | 2 |
Hardware Comparison Output | 4 |
General PWM | 4 |
Laser PWM (pull-push) | 2 (5V/24V – only valid in L5/L24 laser version) |
Point Motion | √ |
Electronic Cam | |
Linear Interpolation | |
Circular Interpolation | |
Continuous Interpolation | |
Robotic Arm | |
Program Space | 4G/8G (storage space for NC user processing file) |
Power Down Storage | √ |
RTC Clock | I t can run one-year continuousl y without power supply. |
Dimensions (mm) | 47*162*102 |
No. | Models | Description |
1 | ZMC600M | optional axes numbers; MO2 / MO8 motion control functions. |
2 | ZMC600ML5 | optional axes numbers; MO2 / MO8 motion control functions; 5V laser PWM, pull-push output. |
3 | ZMC600ML24 | optional axes numbers; MO2 / MO8 motion control functions; 24V laser PWM, pull-push output. |
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMC600M EtherCAT Motion Controller User Manual V2.1.0 | V2.1.0 | 3.20MB | Download |
Features
Parameters

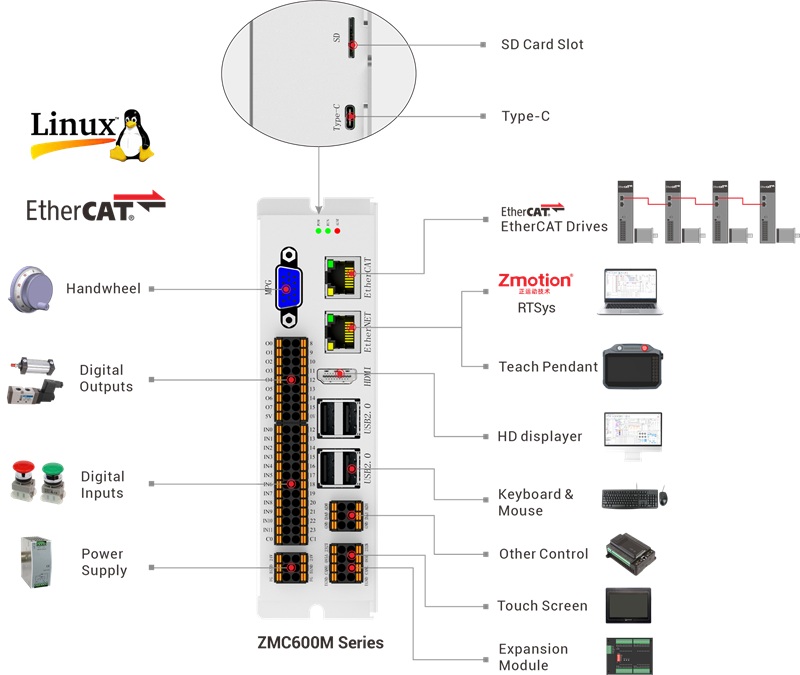

System Architecture
