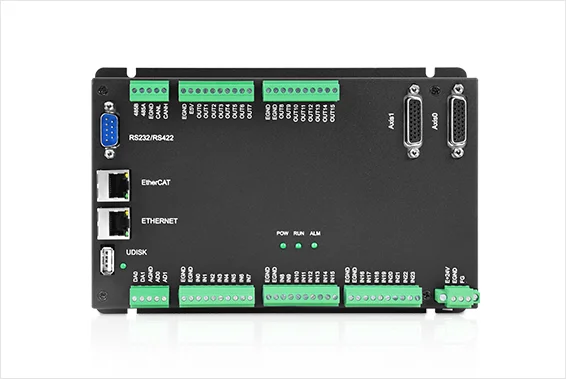

Product name ：ZMC308E & ZMC304E & ZMC306E
Specification: 8-Axis EtherCAT & Pulse Motion Controller
ZMC308E is one 8 axes EtherCAT motion controller.
It also has 4-axis "ZMC304E", and 6-axis "ZMC306E" specifications.
ZMC308E high-performance multi-axis motion controller is a stand-alone motion controller that is compatible with EtherCAT and pulse type. The controller itself supports complex continuous trajectory control requirements of up to 12 axes.
Automation Motion Control Applications:
Robots (SCARA, Delta, 6 joints), Electronic Semiconductor Equipment (testing equipment, assembly equipment, locking equipment, soldering machine), Dispensing Equipment, Non-Standard Equipment, Printing and Packaging Equipment, Textile and Garment Equipment, Stage Entertainment Equipment, Medical Equipment, Assembly Line, etc.
12-Axis Motion Control.
Pulse Output Mode: Pulse / Direction or Dual Pulses.
The fastest refresh cycle of EtherCAT is 500us.
Support encoder position measurement, which can be configured as handwheel input mode.
Maximum pulse frequency output of each axis: 10MHZ.
4096 isolated inputs and 4096 isolated outputs can be extended at most through EtherCAT or CAN.
Axis position limit signal / origin signal port can be configured as any input at will.
The maximum output current of general digital outputs can reach 500mA, which can directly drive some kinds of solenoid valves.
Interfaces: EtherCAT, RS232, RS485, RS422, U Disk, Ethernet.
Support linear interpolation, any circular interpolation and helical interpolation of 12 axes at most.
Support electronic cam, electronic gear, position latch, synchronous follow, virtual axis, etc.
Support hardware comparison output (HW_PSWITCH2), hardware timer, precision output in motion.
Support pulse closed loop, pitch compensation and other functions.
Support multi-file and multi-task programming in Basic.
A variety of program encryption methods to protect the intellectual property rights of customers.
Power failure detection and power failure storage.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMC308E Motion Controller User Manual V1.6.1 | V1.6.1 | 3.46MB | Download |
Features
Parameters

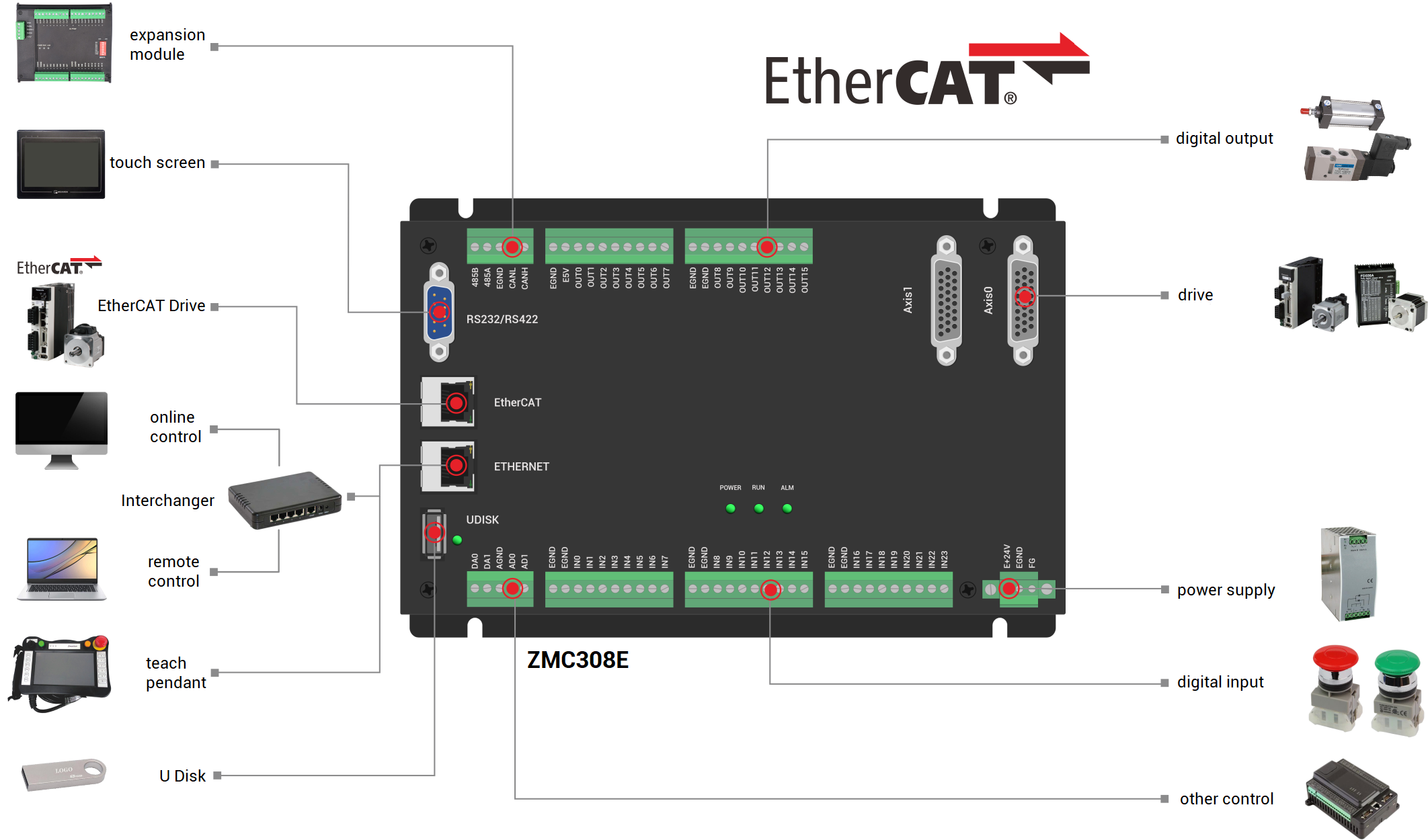

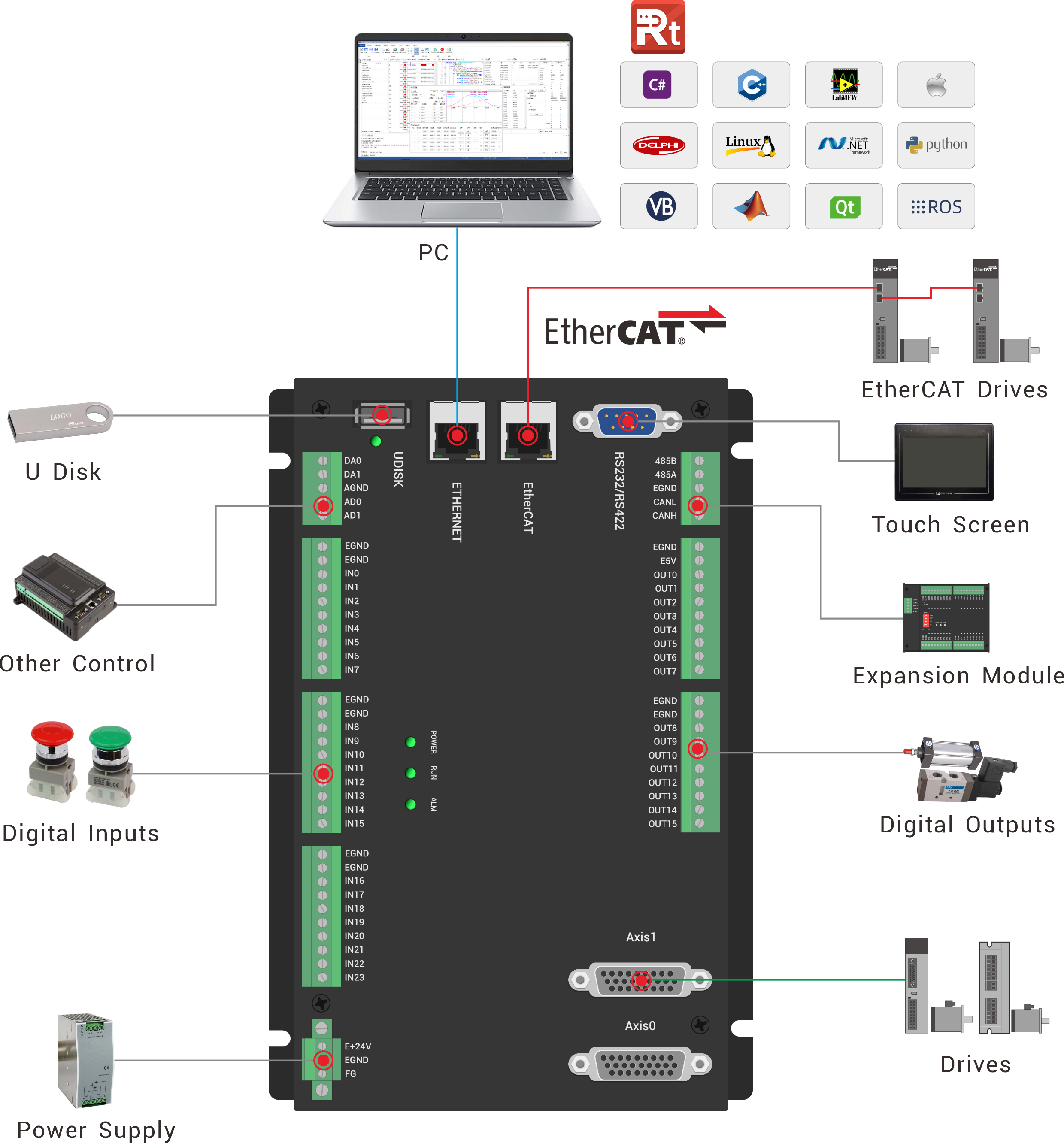

System Architecture
