ZmotionCadV2.0

Product name ：ZmotionCadV2.0

Specification: ZMotionCad

ZmotionCad is a tool of ZDevelop.

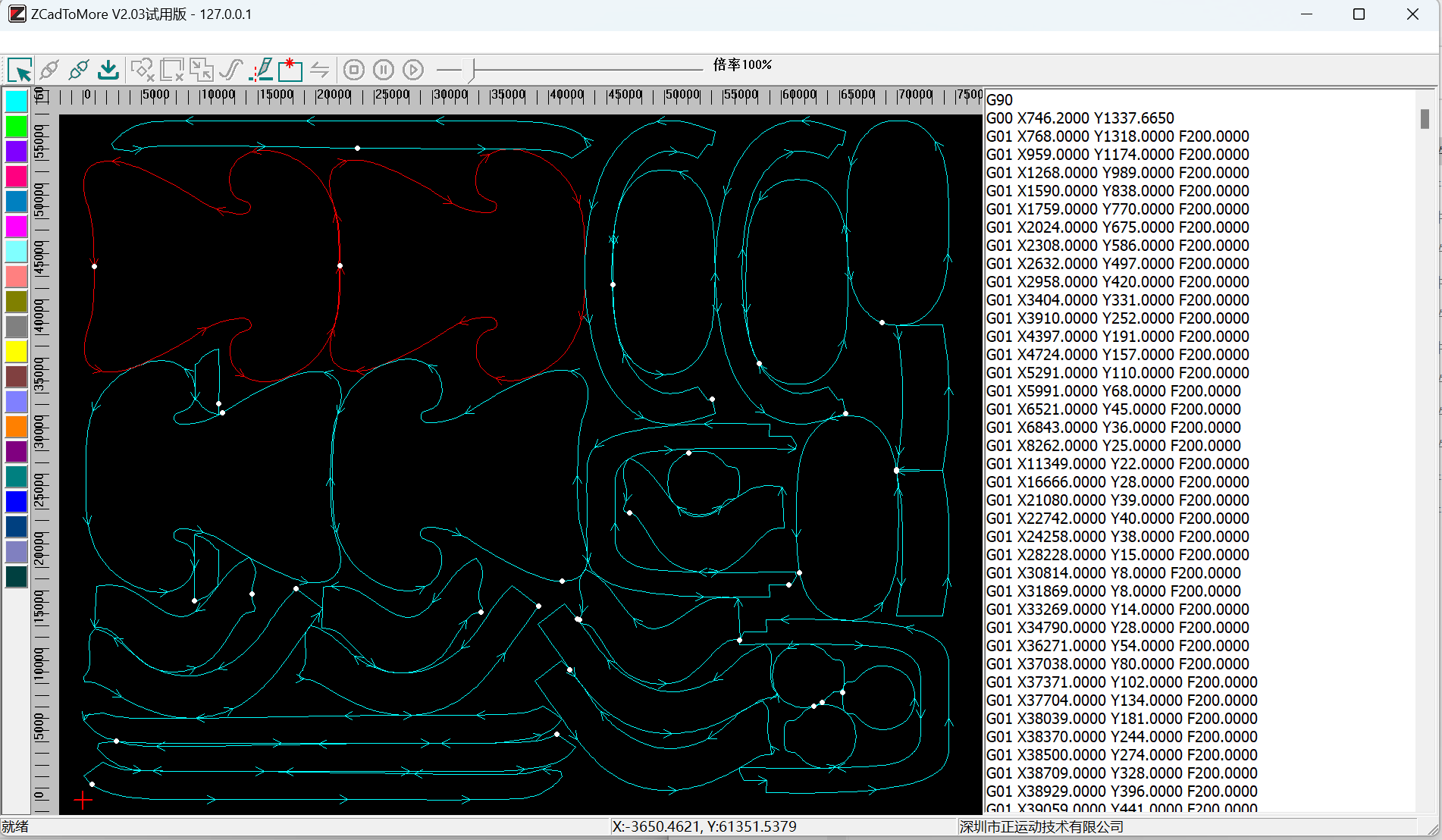

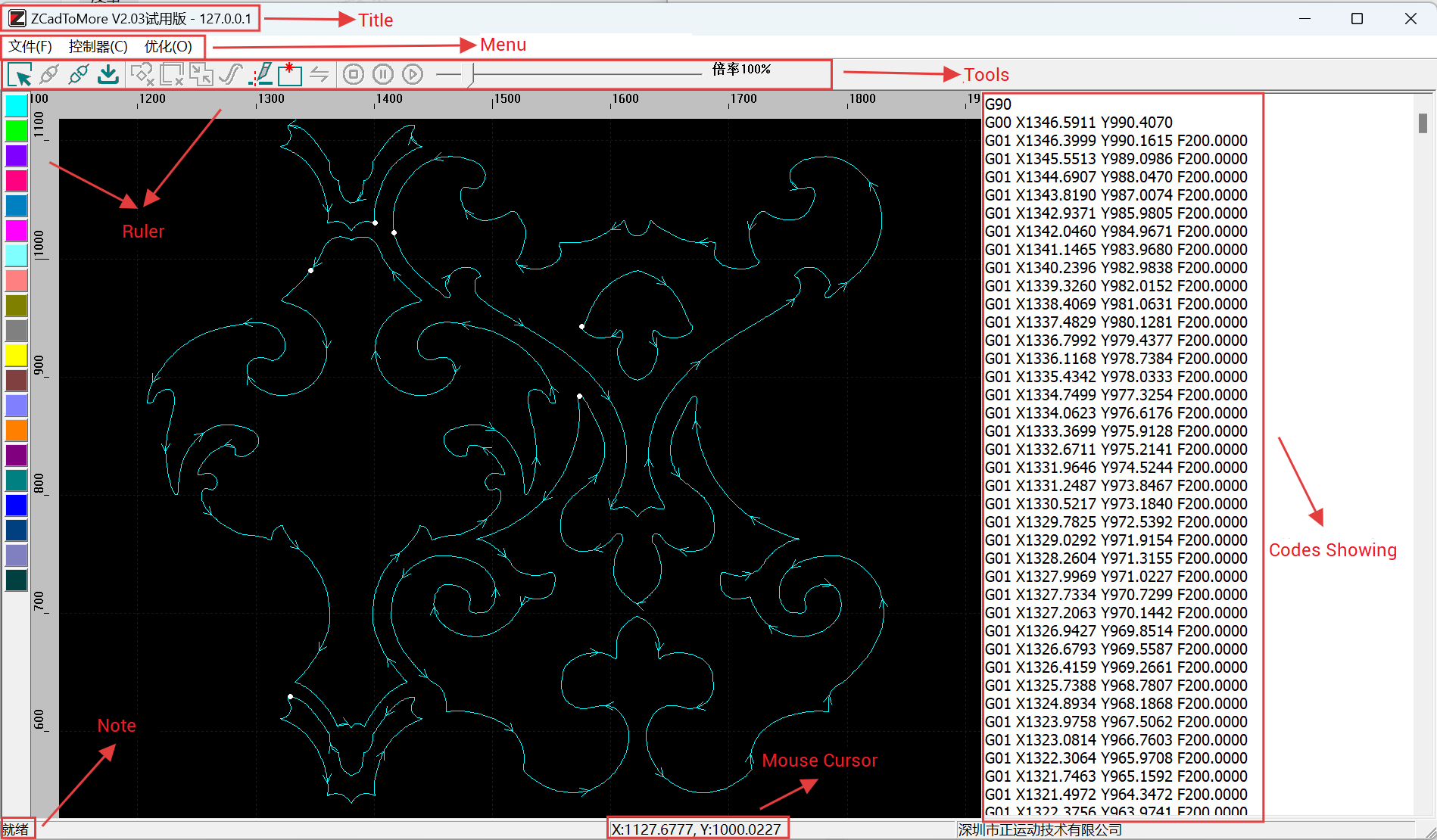

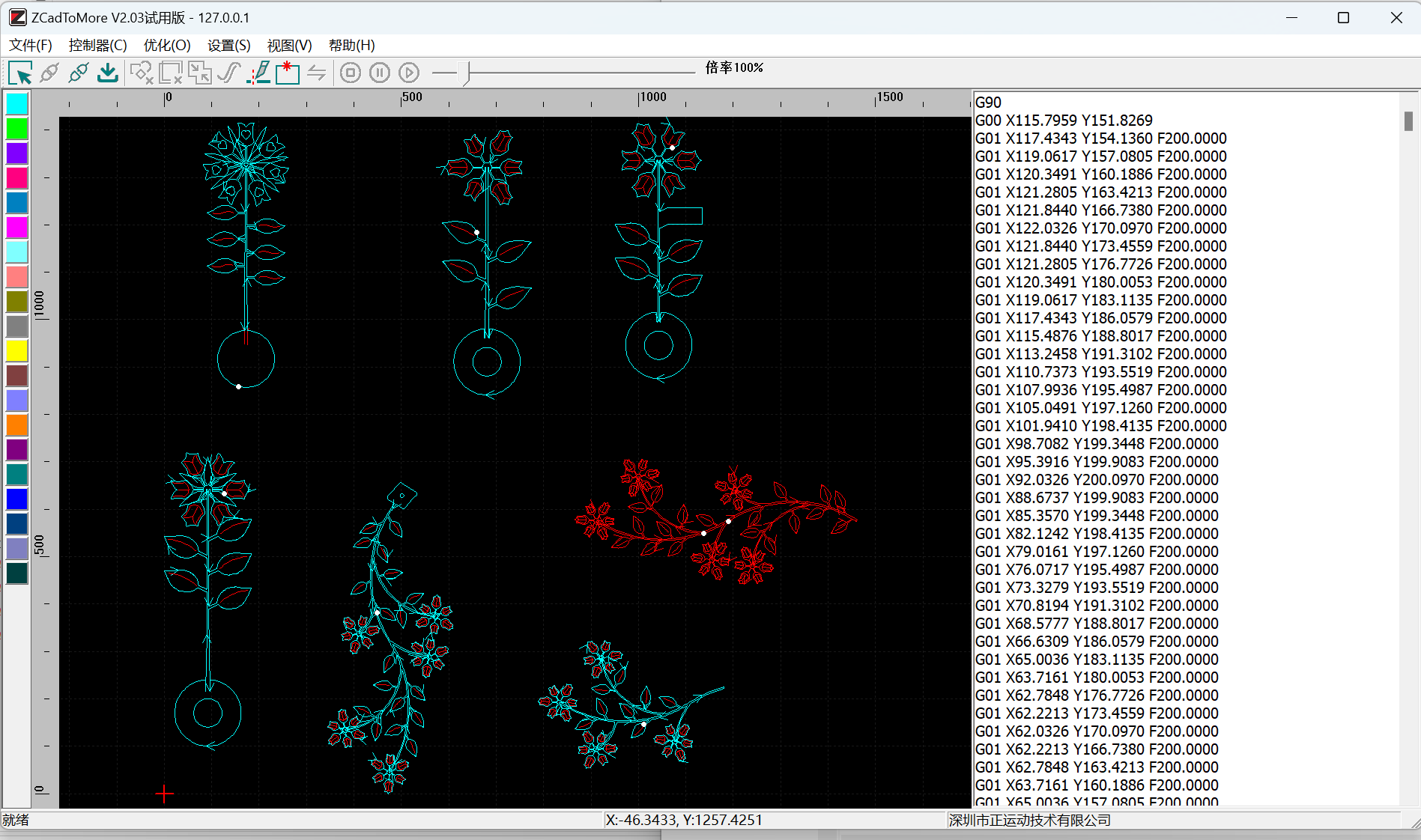

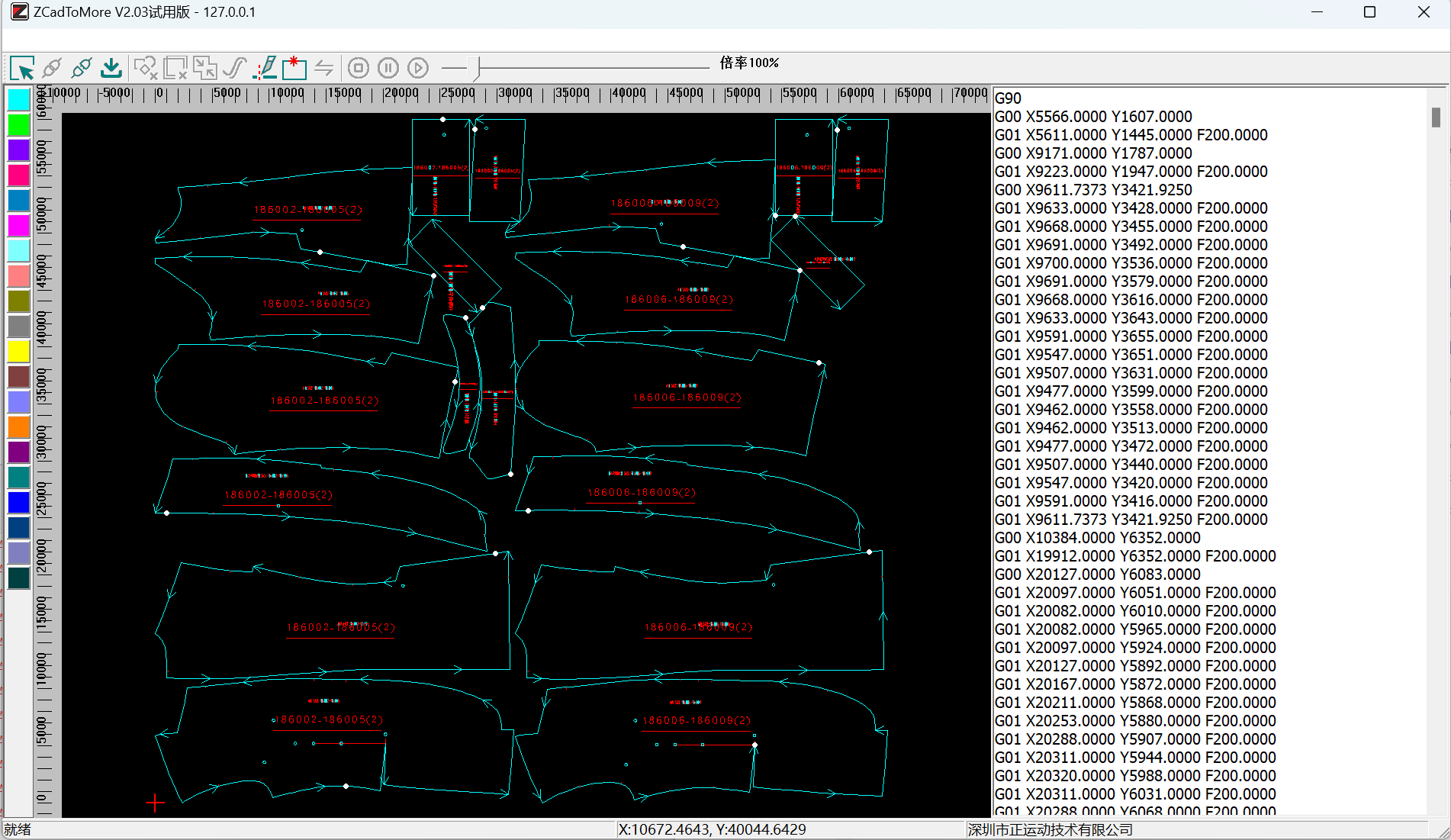

It is mainly used to rapidly convert 2D graphic files to controller needed Basic codes, Bin data, and graphic data through "importing". Graphic Files can be dxf, plt, ai formats.

  • Support Opening and Importing Vector Files with Format of DXF, PLT, AI.
    Support Importing and Exporting Basic Codes and NC Codes.
    It can Set "Automatic Optimization" while Importing, then Easy to Complete "Multi-Step Optimization".
    There are many Methods to Optimize Graphics.
    Support Real-Time Compare Graphics and Codes.
    Support "Automatic Optimization" and "Manual Optimization", Trajectories can be Optimized Flexibly.
    Origin can be Set Flexibly.
    Support Inserting Custom Actions.
    Support Self-Define Axis Z's Height.
    Support Self-Define Each Segment's Speed.
    Support "Simulation" by One Action, Including Analog Processing Control.


  • Lowest Requirements

    		Recommendations

    CPU

    Ptntium  Level CPU, Main Frequency 450MHz

    Ptntium  Level CPU, Main Frequency 1GHz

    Memory

    64MB

    250MB

    Reamin Hard Disk Space

    20MB

    100MB

    Operation System

    Windows 98,Windows xp

    Windows 7

    Displayer

    800 × 600 / 256 Color

    1024 × 768 / 24-Bit Real Color

    Communication Interfaces

    RS232

    RS232/USB/EtherNET (adapt by HUB)



  • Name Version No Format Size Download
    ZCadToMore V2.04 ZIP 7.93MB Download
    ZCadToMore Product Manual V2.0 V2.0 PDF 2.16MB Download
