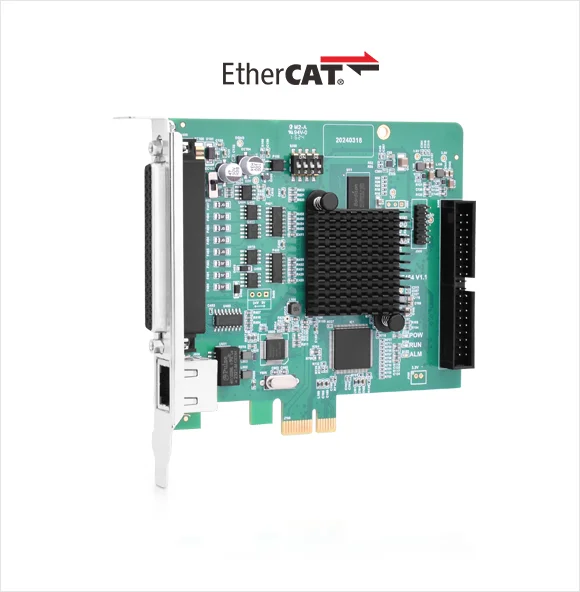

Product name ：PCIE464
Specification: 64-Axis EtherCAT Motion Control Card
PCIE464 motion control card is with EtherCAT bus and pulse, and the interface is PCIE type. Several stepper motors or digital servo motors can be controlled.
PCIE464 motion control card suits to multi-axis point to point, interpolation, trajectory planning, handwheel control, encoder position detection, IO control, position latch, and etc.
Support encoder position measurement, which can be configured as handwheel input mode.
Support HW hardware comparison output, high-speed latch, PWM, and other special functions.
The X400 signal interface supports 32-channel for IN & OUT (for example, connect to ACC37 wiring board to select IO channels).
The max output current of OUT can reach 300mA, which can drive some valves.
Support many motion control functions, such as, point to point, electronic cam, linear interpolation, circular interpolation, continuous interpolation, Scara robot, etc.
Support pulse closed loop, and pitch compensation.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| PCIE464 Motion Control Card User Manual V2.1.4 | V2.1.4 | 3.02MB | Download |
Features
Parameters

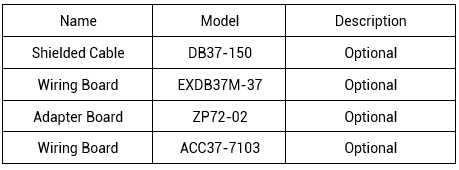

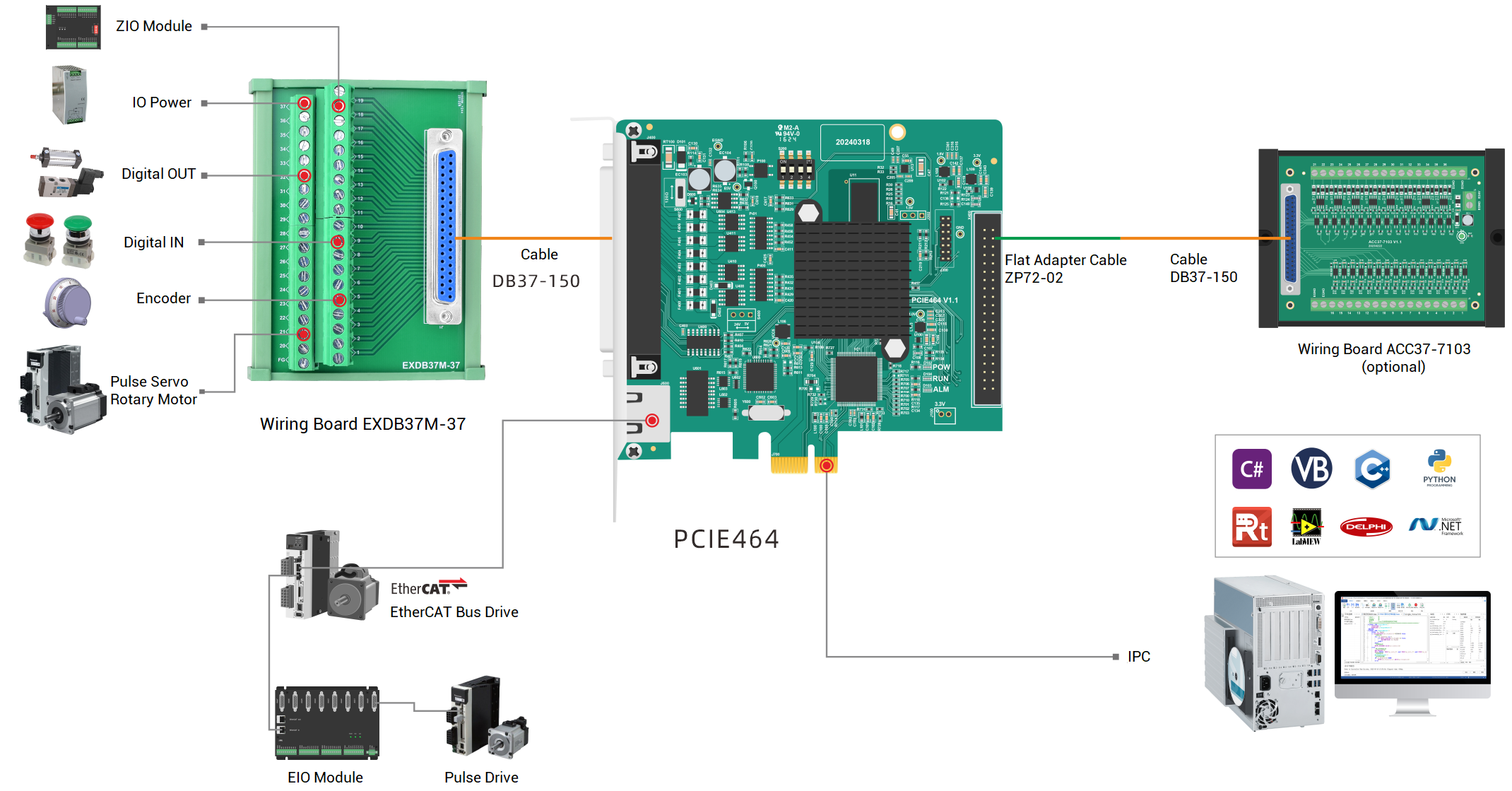

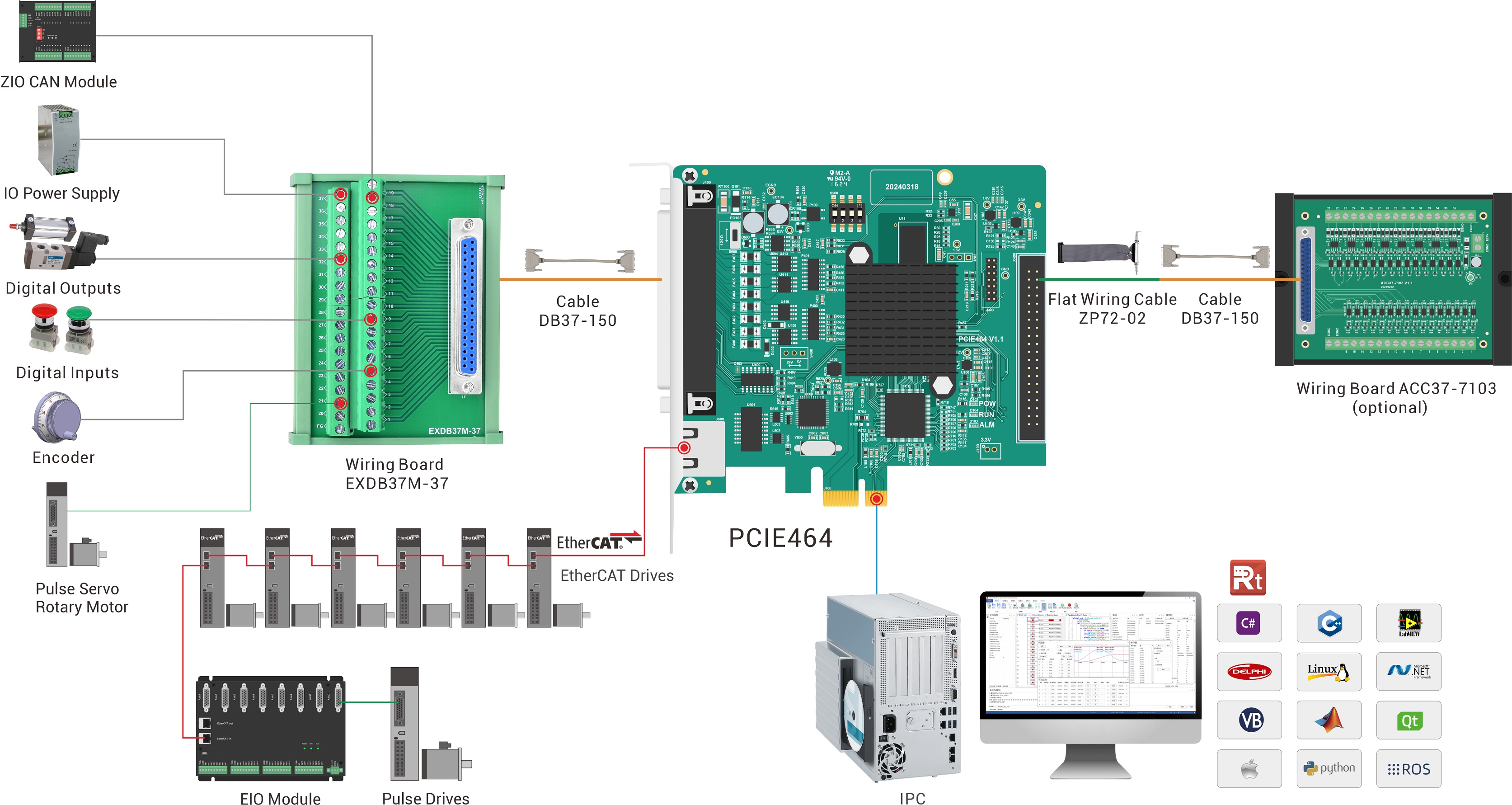

System Architecture
