Product name ：XPCI1C00 Motion Control Card

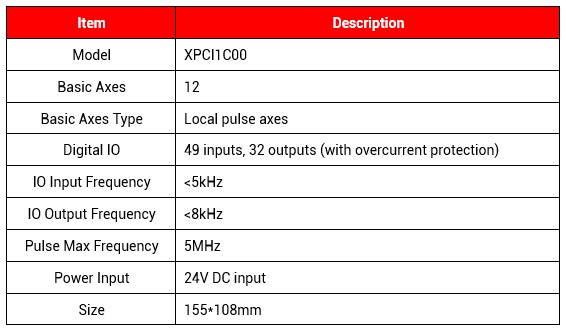

Specifications: 12-axis Pulse Motion Control Card

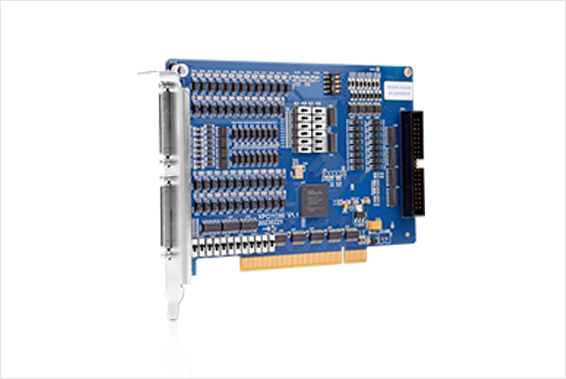

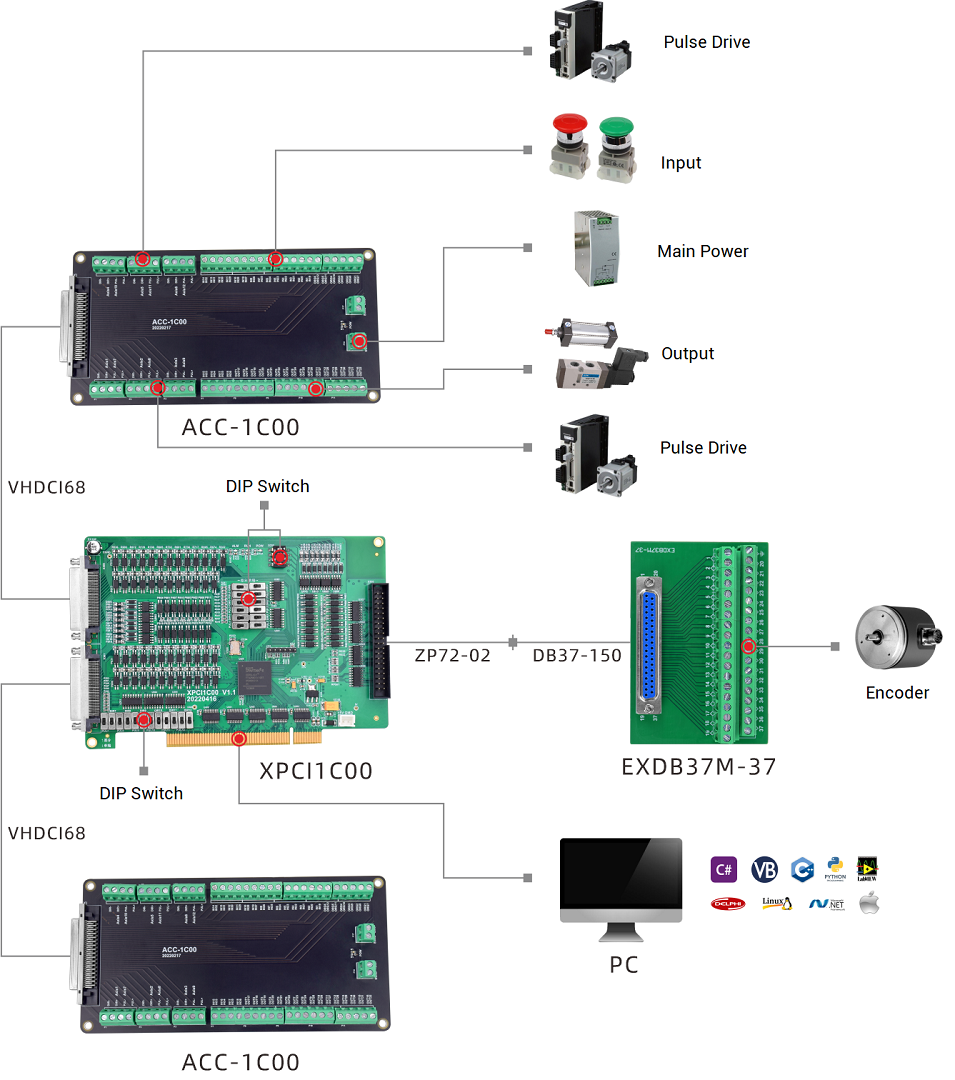

XPCI1C00 motion control card is a new type of cost-effective PCI bus motion control card, which can realize the control of multiple stepper motors or digital servo motors.
The XPCI1C00 motion control card can meet the functional applications of multi-axis point motion, interpolation motion, trajectory planning and IO control required by customers, as well as cost optimization.
Note:
The XPCI1C00 motion control card needs to be used with MotionRT.
Up to 12 axes of motion control.
Pulse axis output mode: pulse/direction
Mechanical control signal input: +/-EL, ORG, +/-SD, photoelectric isolation.
The maximum output pulse frequency of the pulse axis is 5MHz.
The maximum output current can reach 300mA, which can directly drive some solenoid valves.
Support linear interpolation, circular interpolation in any space, and helical interpolation.
Support electronic cam, electronic gear, synchronizaion follow, virtual axis and other functions.
Support pulse closed loop, pitch compensation and other functions.
Support ZBasic multi-file multi-task programming.
A variety of program encryption means to protect the intellectual property rights of customers.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| XPCI1C00 Motion Control Card User Manual V1.0 | V1.0 | 2.51MB | Download |
