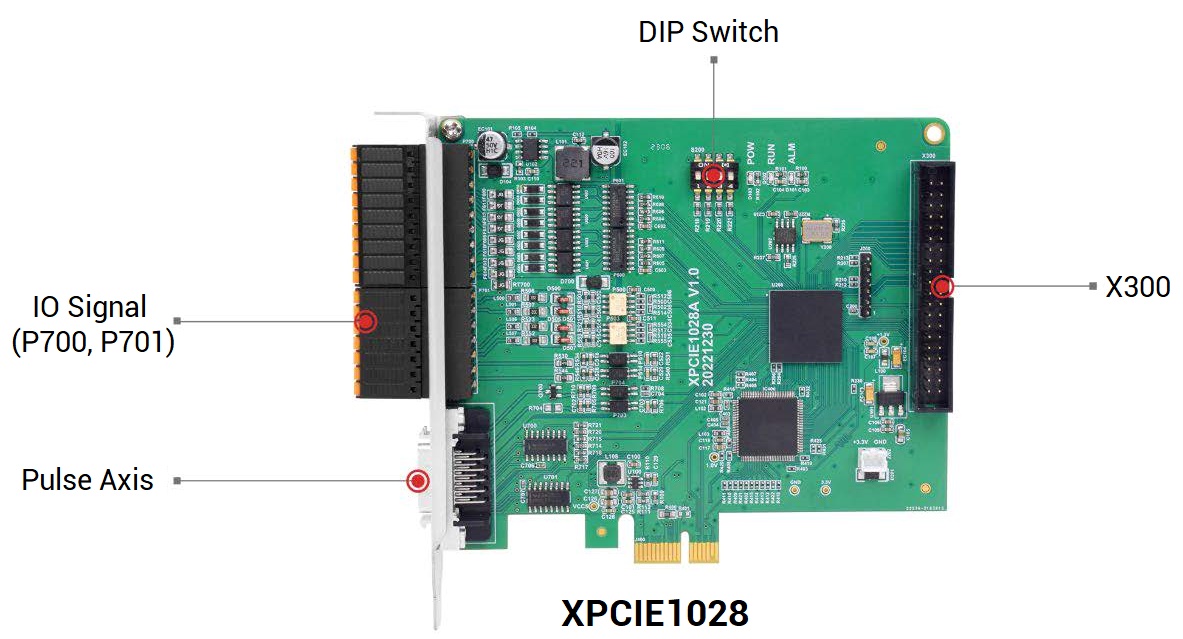

Product name ：XPCIE1028 Motion Control Card
Specification: 4 Axes Pulse Motion Control Card

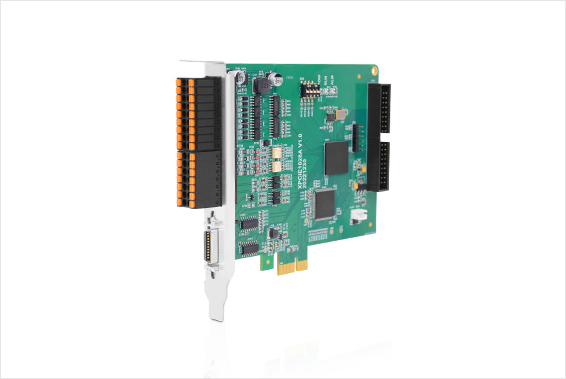

XPCIE1028 motion control card is a 4-axis pulse motion control card with new XPCIE bus interface, which can control multiple stepper motors or digital servo motors.
XPCIE1028 motion control card has excellent control functions such as position latch, high-speed hardware position comparison output PSO, PWM and continuous trajectory planning, which can optimize traditional processing technology and is suitable for linear or rotary platform applications on high-speed and high-precision equipment.
Notes:
XPCIE1028 motion control card adaptation hardware custom configuration requires CPU benchmark i5-4 generation 4 cores or above, main frequency cannot be lower than 2GHZ, running memory requires above 8G and hard disk should be above 256M.
XPCIE1028 motion control card needs to be used with MotionRT7.
Standard: 4-axis motion control
Pulse axis output mode: pulse/direction
Support encode position measurement, which can be configured as handwheel input mode.
The maximum output pulse frequency of the pulse axis is 10MHz.

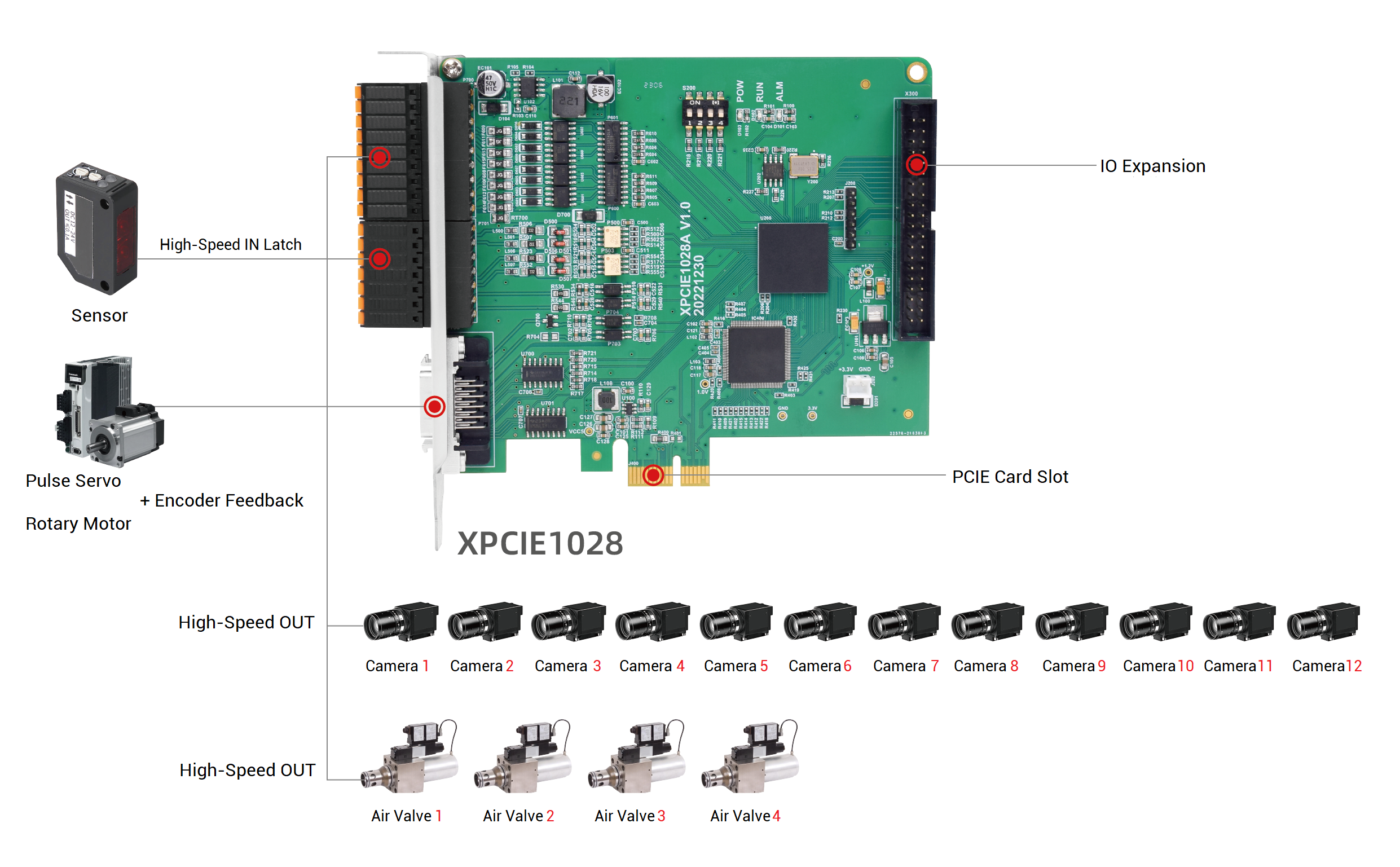

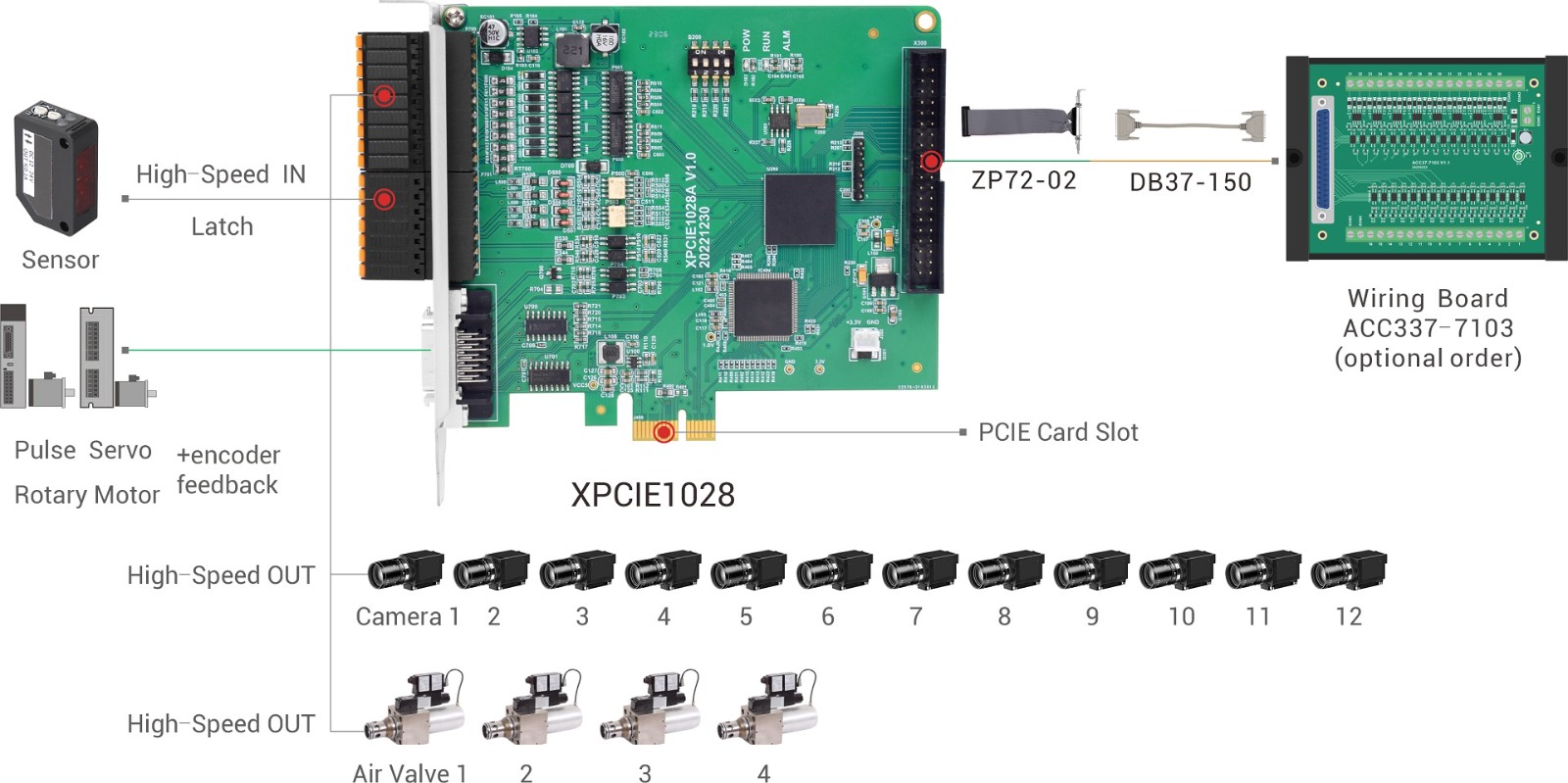

Support 8 high-speed inputs, 4 latch inputs, and support 16 high-speed outputs, 4 PWM outputs.
The maximum output current can reach 300mA, which can directly drive some solenoid valves.
Support linear interpolation, circular interpolation in any space, and helical interpolation.
Support electronic cam, electronic gear, synchronizaion follow, virtual axis and other functions.
Support pulse closed loop, pitch compensation and other functions.
Support ZBasic multi-file multi-task programming.
A variety of program encryption means to protect the intellectual property rights of customers.
Order Information:
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| XPCIE1028 Motion Control Card User Manual V1.1.1 | V1.1.1 | 2.52MB | Download |
