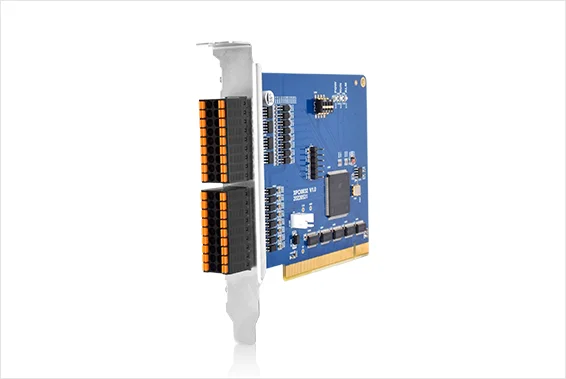

Product name ：XPCI0032-IO Control Card
Specifications: 16 inputs and outputs PCI-IO control card
XPCI0032-IO control card is a kind of new type PCI-IO expansion card for industrial automation control. It has 16 inputs and 16 outputs. And inputs can be connected to all kinds of switch signals, for example, sensor. Outputs also can drive some small switch devices, such as, solenoid valve, relay, cylinder, etc.
XPCI0032 IO control card can be used to expand IO numbers when IO resources are not enough.
Digital expansion: 16 inputs and 16 outputs

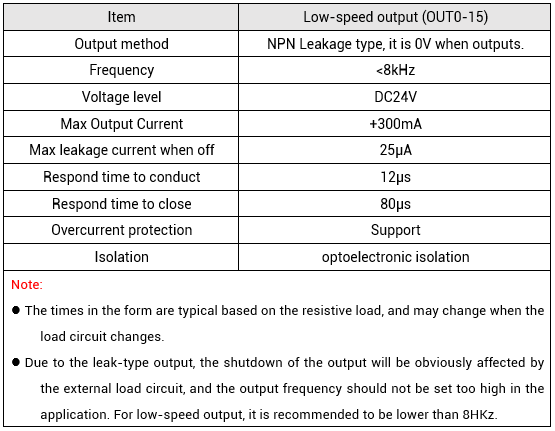

The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Support multi-file and multi-task programming in Basic.
A variety of program encryption methods to protect the intellectual property rights of customers.
The card slot interface is designed according to the PCI V3.0 standard 32-bit card, and it is backward compatible with the standard PCI V2.3.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| XPCI0032-IO Control Card User Manual V1.5 | V1.6.0 | 1.77MB | Download |
Features

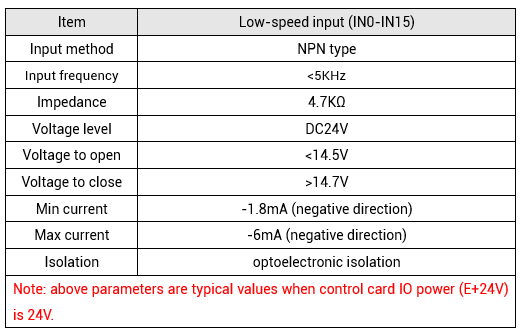

Parameters

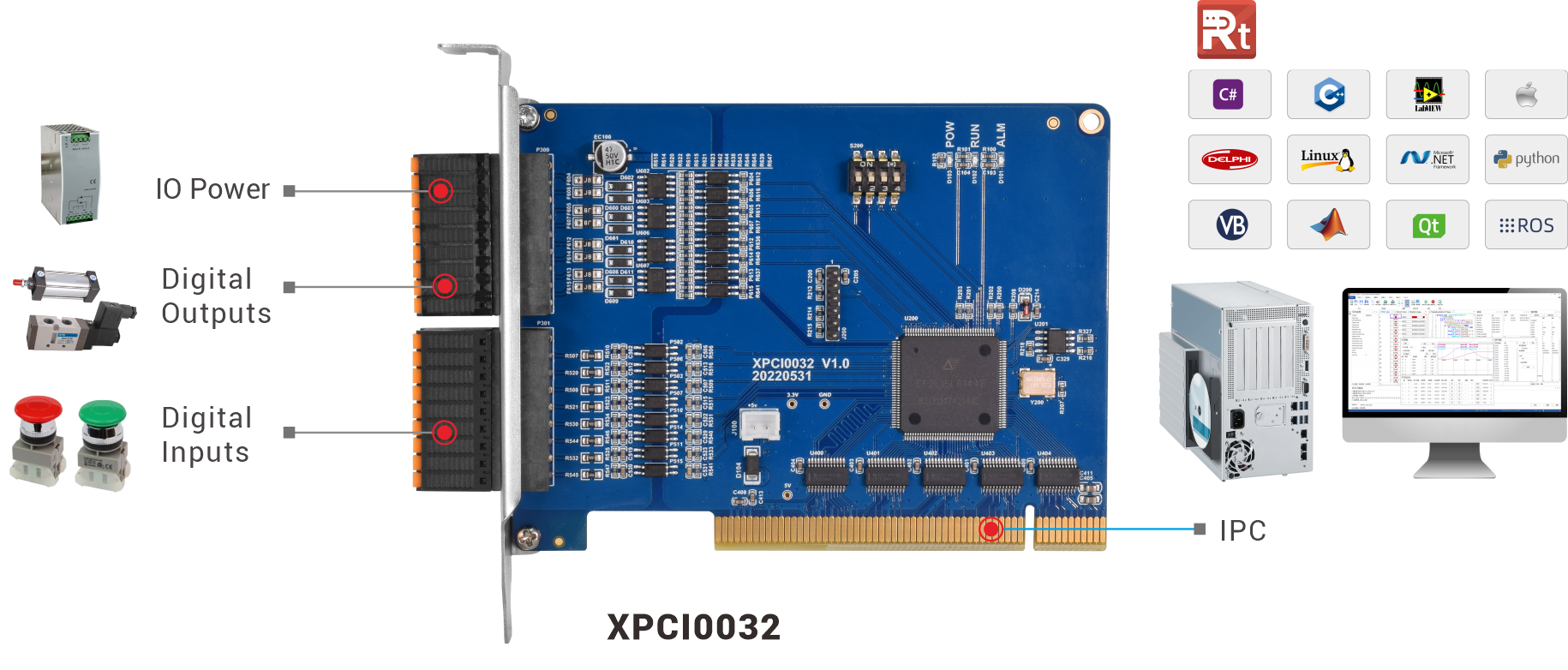

System Architecture
Download
