Product name ：Vision Motion Control Development ZDevelop V3.10
Specification: ZDevelop development software

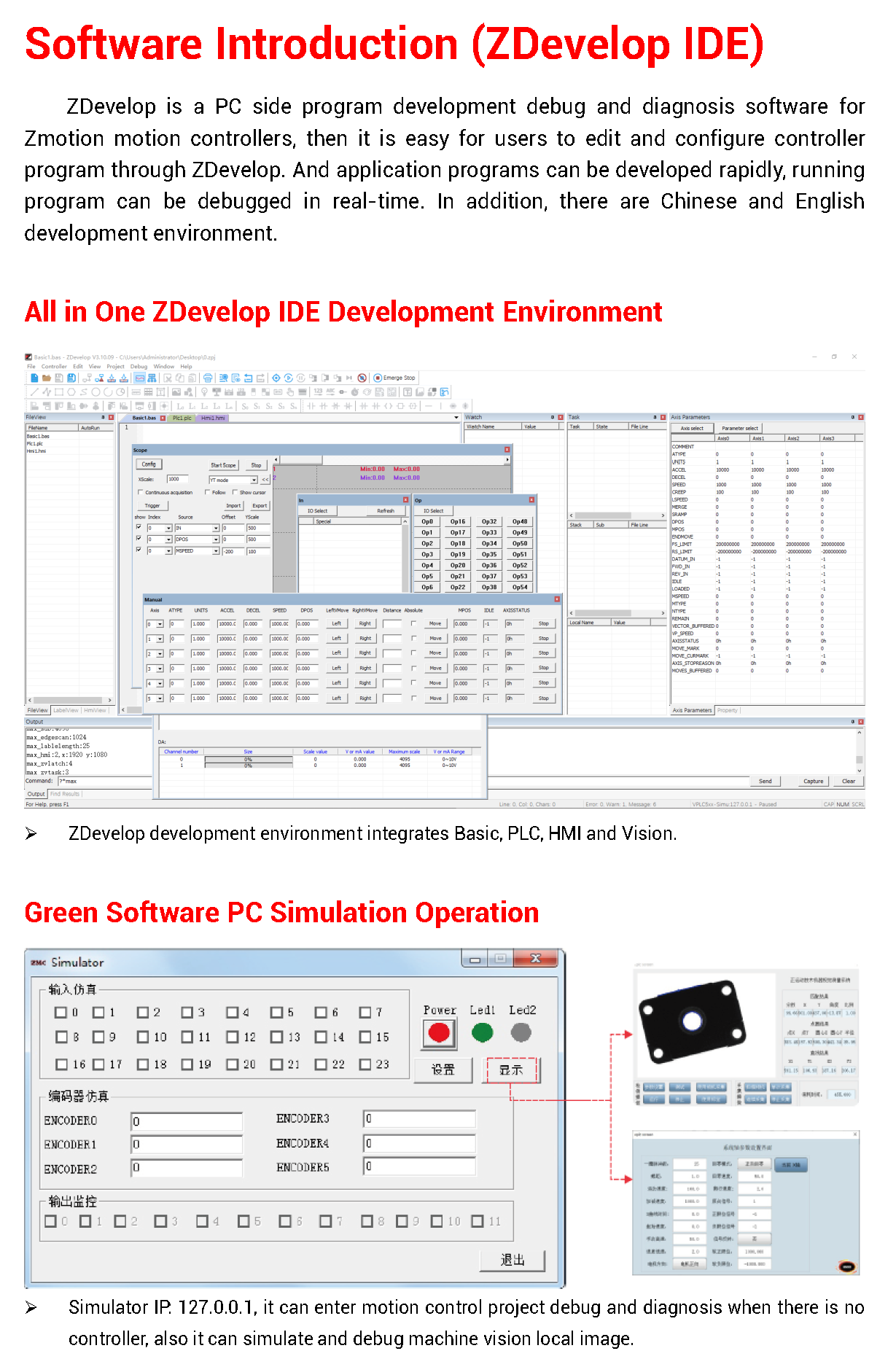

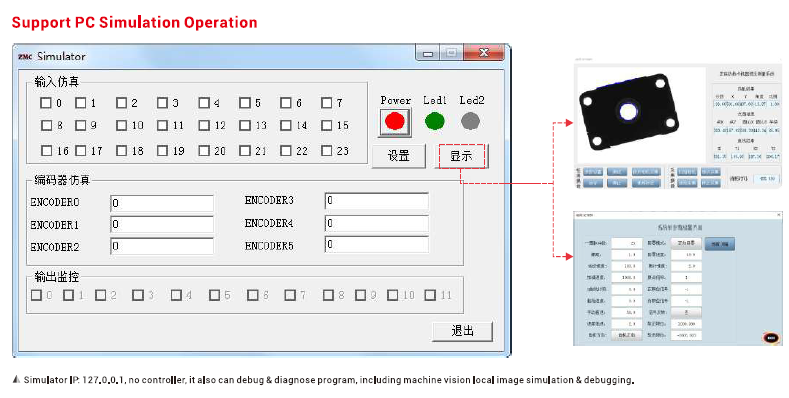

ZDevelop V3.10 is a green and one-stop shop development software without installation developed by ZMOTION, which integrates machine vision and motion control functions. It supports ZBasic, ZPLC, ZHMI, and machine vision ZVision second-development. And it can mix program, real-time simulation, online trace and diagnose and debug. Rapidly realize the development of vision location, measurement, identification, detection and complex motion control systems for intelligent equipment.

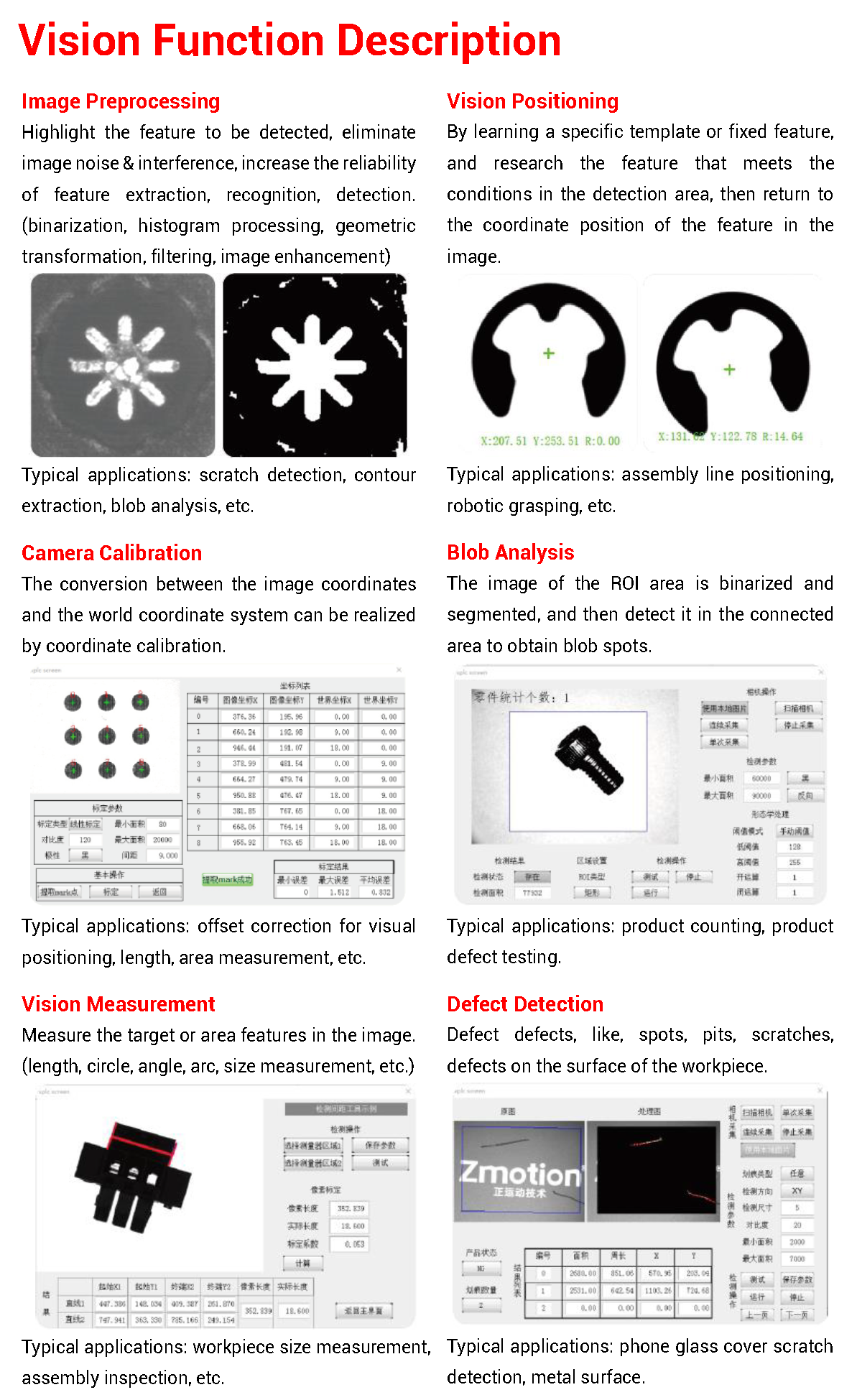

Calibration: 9 positions calibration, coordinate transformation
Measurement: point, line, circle, angle, size

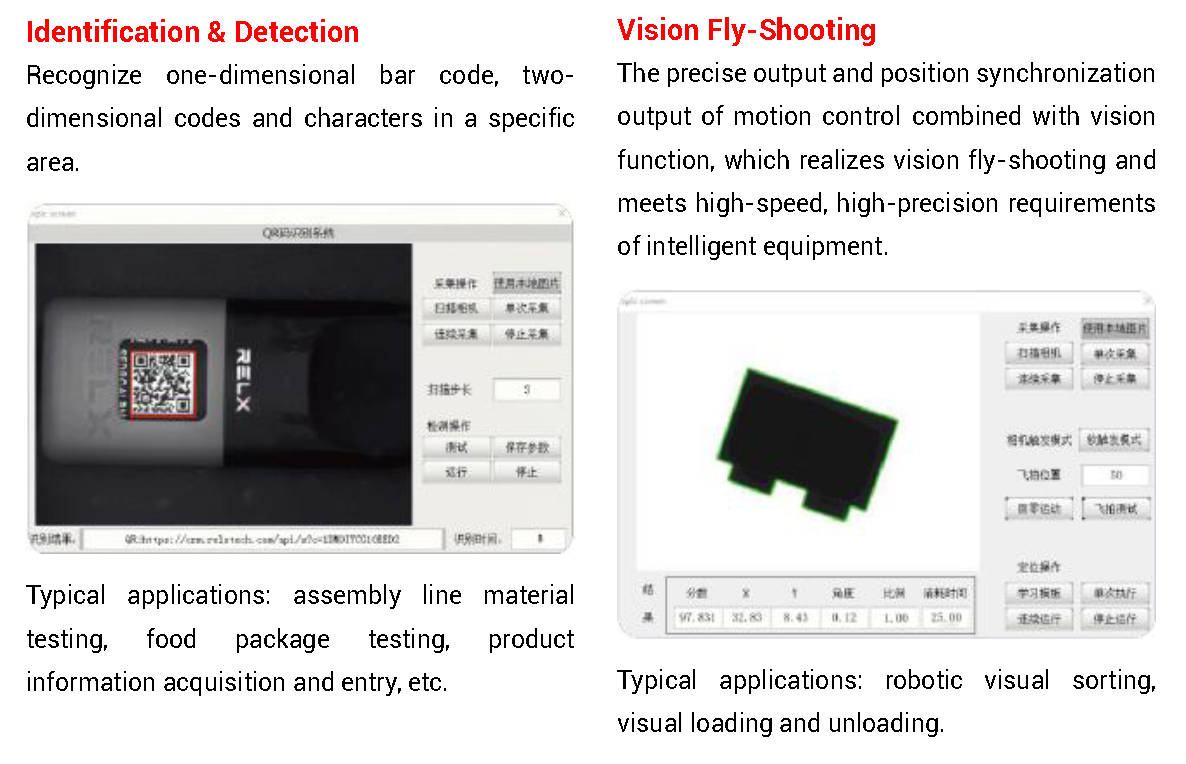

Identification: one dimension bar code, OR code, OCR
Location: shape matching, grayscale matching, NCC matching
Preprocessing: binarization, opening/closing operations, filtering, filling holes
Multi-axis and multi-channel interpolation: linear interpolation, circular interpolation, helical interpolation
Multi-axis synchronization and electronic cam: multi-axis synchronization, vritual axis phase superposition, electronic cam.
position synchronization and output: high precision position latch, position cam output, precision output PSO.
More than 30 robotic arm control: SCARA, Delta, 6-joint robot, collaborative robot.
Parameter/Description | The lowest requirements | Recommendation |
CPU | Pentium level or above, main frequency is 450MHz | Pentium level or above, main frequency is 1GHz |
RAM | 64 MB | 256MB |
Hardware Free Space | 20MB | 100MB |
Control System | Windows 98, Windows xp | Windows xp or win7. |
Display | 800 x 600 / 256 color | 1024 x 768 / 24 bits true color |
Communication Interface | RS232 serial | RS232 serial/USB/Ethernet(can be transferred through HUB) |
| Name | Version No | Format | Size | Download |
|---|
