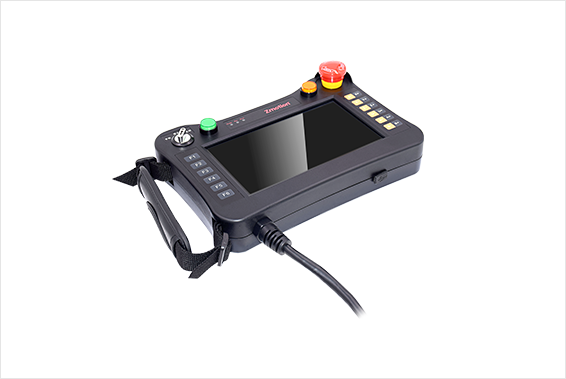

ZHD400

Product name ：ZHD400

Specifications:ZHD400 teach pendant

ZHD400 is a network teach pendant, must be used with ZMOTION motion controllers that support XPLC function, and ZDevelop version should be above 2.6 while developing applicaiton. It has one USB, U Disk interface, 24V power supply(can use USB), a display screen with 800*480 resolution, all 18 buttons, and with an emergency stop switch, buttons and touching are used together.

  • Programmable teach pendant, interfaces can be designed by script procedure programming.
    Drawing functions:line,circle,pircute,characters etc.
    Emergency button embedded.
    47 or 18 keys embedded,customization is available.
    Serial port,USB port,U drive port etc.
    Support MODBUS or self-defined protocol.
    Capable of different kinds of machines or robots control.
    Support screen touch.
    Screen resolution:800*480.

  • PIN

    NAME

    DESCRIPTION

    1



    2

    RS485A

    485A

    3

    RS485B

    485B

    4

    GND


    5

    GND

    Digital groud

    6

    NC

    Reserved

    7

    EMG

    Emergency Stop

    8

    GND

    Digital groud

    9

    DC24V

    24V

    10

    GND

    Digital groud

    11

    NC

    Reserved

    12

    ETH_TX-

    Ethernet TX-

    13

    ETH_TX+

    Ethernet TX+

    14

    ETH_RX-

    Ethernet RX-

    15

    ETH_RX+

    Ethernet RX+


  • 5.jpg

      Coordinate value of screen
