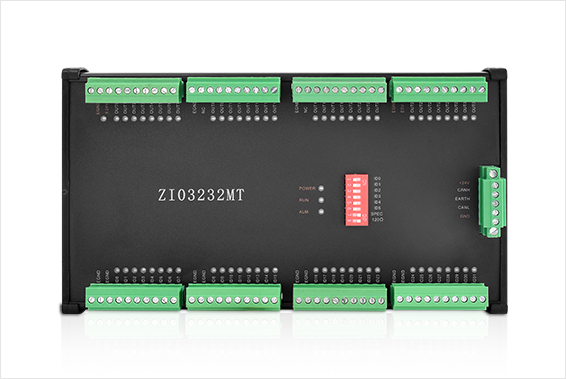

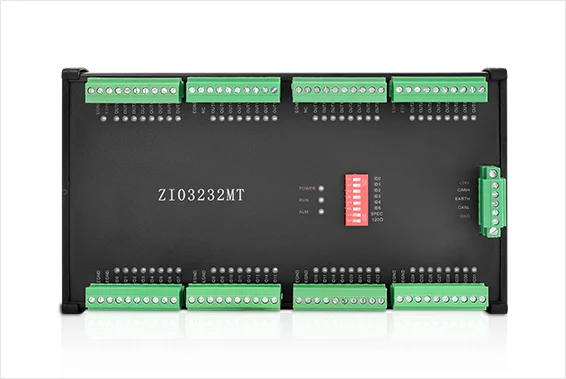

Product name ：ZIO3232MT (32 IN & 32 OUT)
Specification: 32 IN & 32 OUT CAN Expansion Module
ZIO3232MT is an expansion board that can expand 32 digital inputs and 32 digital outputs by CAN protocol.
When you need many extra IO resources, one ZIO3232MT can help you easily. Also, several ZIO3232MT can be used at the same time.

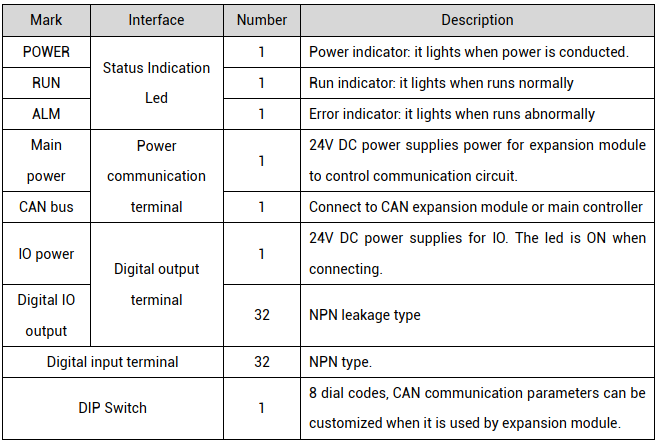

In addition, for ZIO CAN modules, no need to do mapping. There is one DIP switch, just to dial codes.
One ZIO3232MT extends 32 general inputs and 32 general outputs.

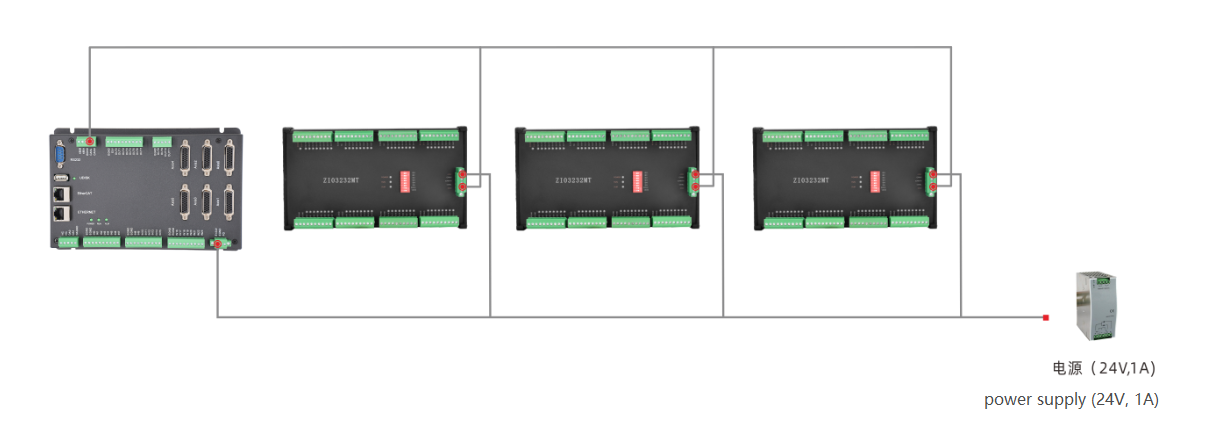

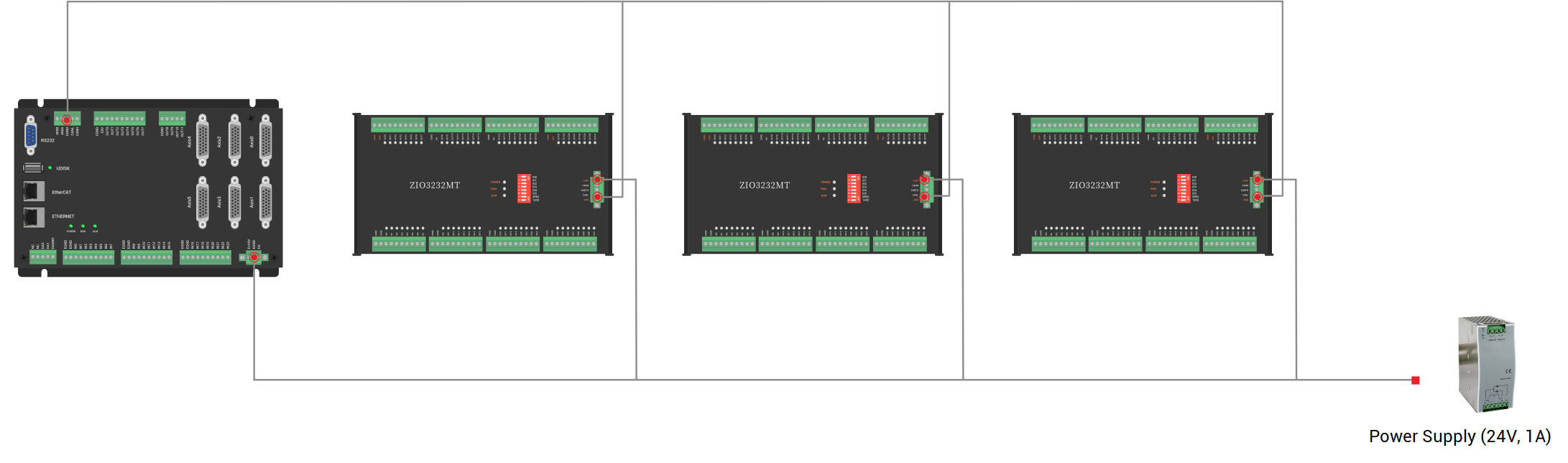

There is one embedded CAN bus port to link with master controller.

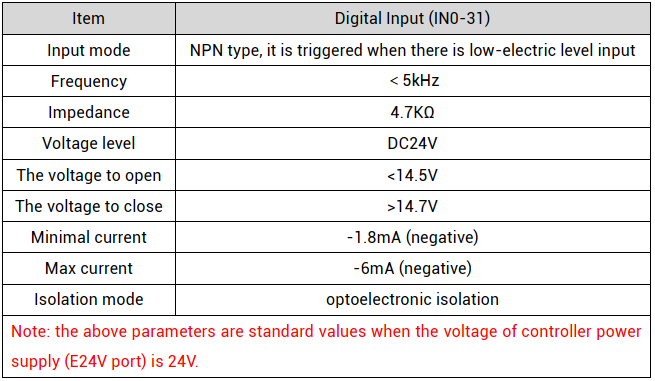

Each input and output is with isolated design, and they have LED indicators. Both are NPN type.

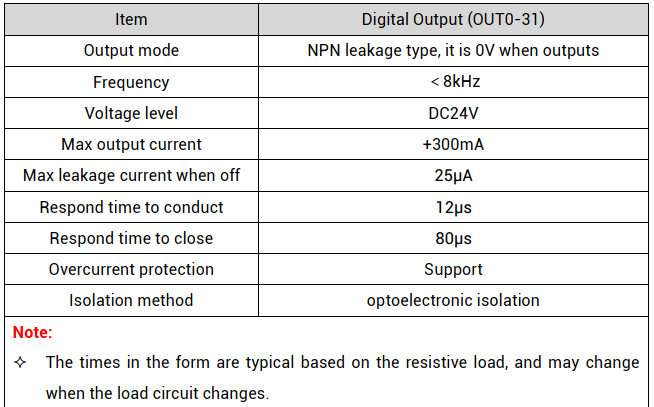

Each output is with overcurrent protection, and max output current is +300mA.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZIO CAN Expansion Module User Manual V2.2.1 | V2.2.2 | 3.89MB | Download |
