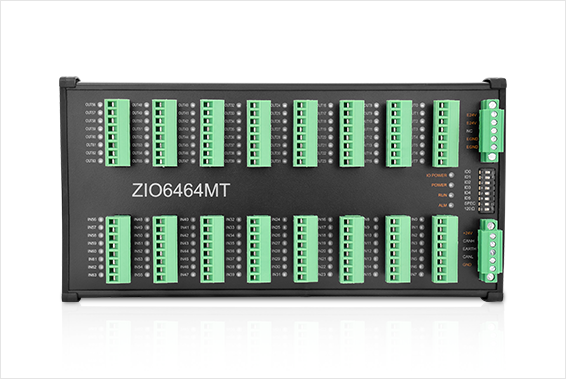

Product name ：ZIO6464MT (64 IN & 64 OUT)
Specification: 64 IN & 64 OUT CAN Expansion Module
ZIO6464MT is an expansion board that can expand 128 IOs (64 digital inputs and 64 digital outputs) by CAN protocol.
When you need many extra IO resources, one ZIO6464MT can help you easily. Also, several ZIO6464MT can be used at the same time.
In addition, for ZIO CAN modules, no need to do mapping. There is one DIP switch, just to dial codes.
One ZIO6464MT extends 64 general inputs and 64 general outputs.
There is one embedded CAN bus port to link with master controller.
There are NPN and PNP versions.
Each input and output is with isolated design, and they have LED indicators.
Each output is with overcurrent protection, and max output current is +300mA (NPN) / -300mA (PNP).
Power Supply: it is powered by the dual-power supply DC24V, for the voltage, max range is 18V-36V.
IO Expansion:
Choice 1: 64 NPN digital inputs + 64 NPN digital outputs
Choice 2: 64 PNP digital inputs + 64 PNP digital outputs
Communication Mode: CAN bus communication.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZIO CAN Expansion Module User Manual V2.2.1 | V2.2.2 | 3.89MB | Download |
Features
Parameters

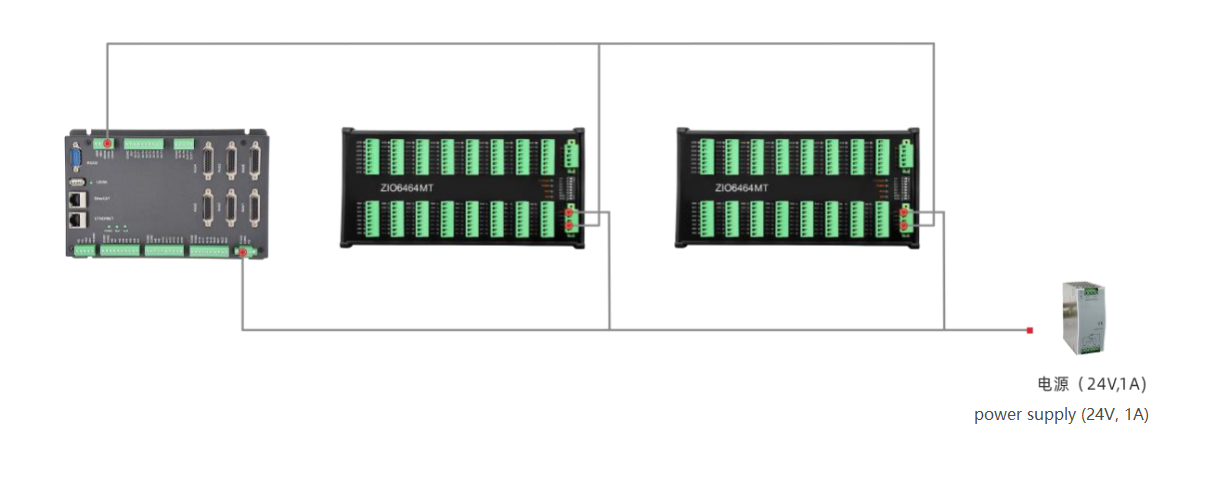

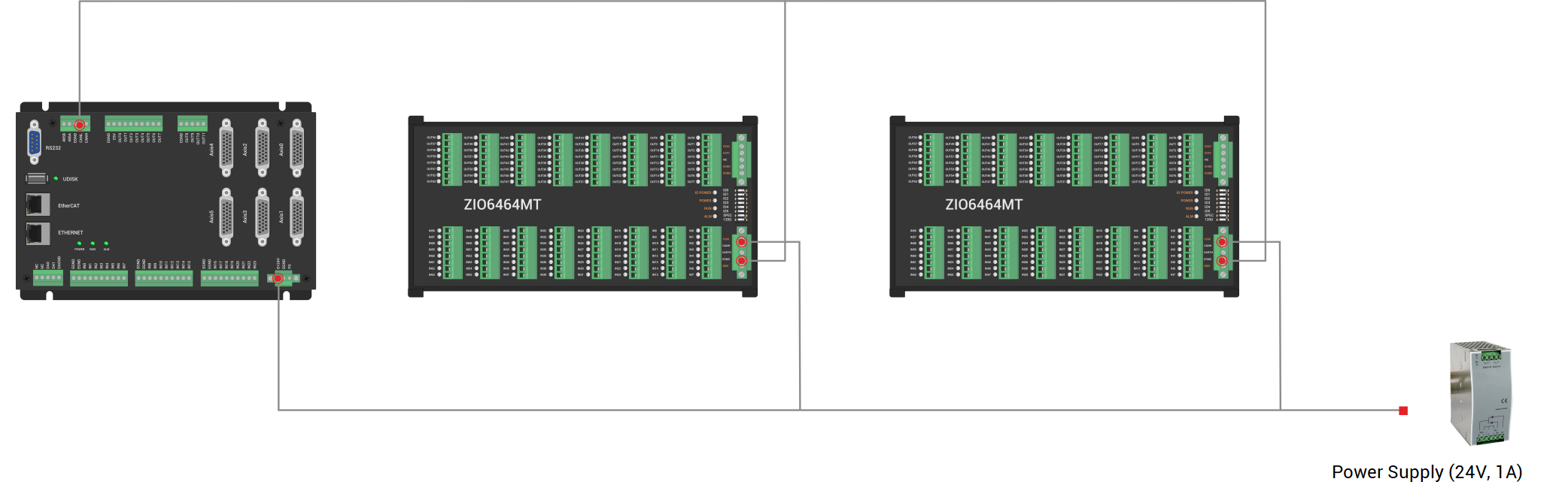

System Architecture
