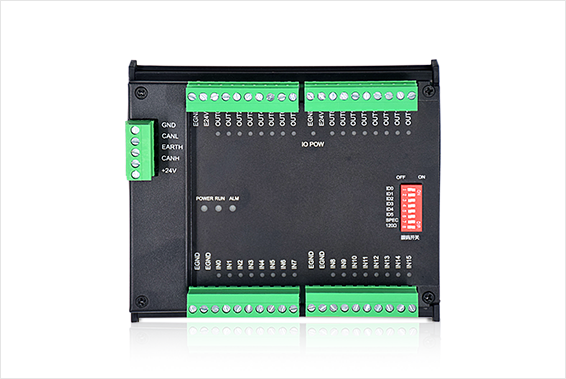

Product name ：ZIO1616MT (16 IN & 16 OUT, with shell)
Specification: 16 IN & 16 OUT CAN Expansion Module
ZIO1616MT is an expansion board that expands 16 digital inputs and 16 digital outputs by CAN protocol. When your controller IO resources can't meet the requirements, the ZIO1616MT can be used.
In addition, for ZIO CAN modules, no need to do mapping. There is one DIP switch, just to dial codes.
One ZIO1616MT extends 16 general inputs and 16 digital outputs.

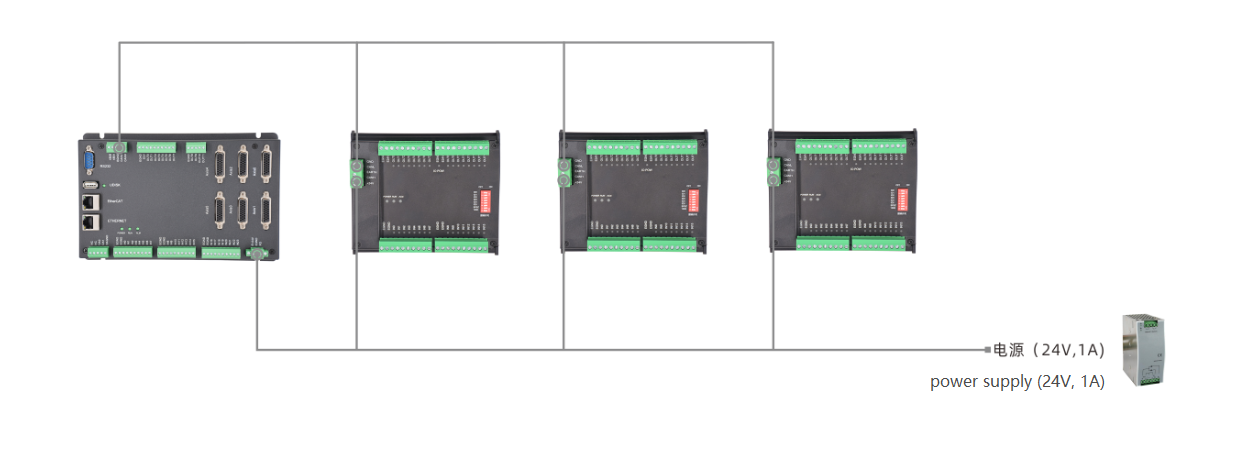

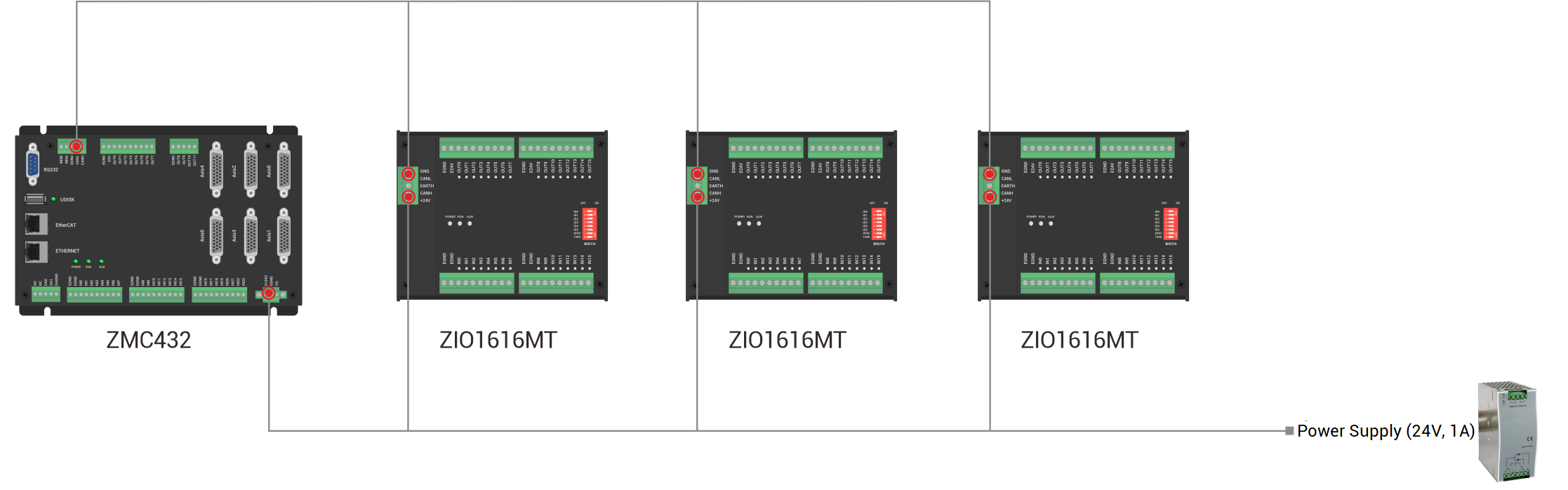

There is one embedded CAN bus port to link with master controller.
This one has the outside shell, if you need PCB type, please see ZIO1616.
Specification | ZIO1616MT |
Power supply | 24V DC |
Communication protocol | ZCAN protocol |
link numbers | up to 16 |
Transfer Distance | under 40m |
Address configuration | dial switch |
Inputs and Outputs link method | 10 points wiring terminal |
Input and Output Type | digital inputs and outputs |
Isolation | optocoupler isolation |
Input Type | NPN type, low-level electricity valid output |
Input current (Standard) | 4.8mA |
Input resistance | 4.7KΩ |
after ON voltage | <14.5V |
after OFF voltage | >14.7V |
Input dispaly | when it is driven, the LED will be ON |
Output method | MOS tube, low-level electricity valid output |
Output overcurrent protection | maximum is 300mA |
Max leakage current when OFF | 0.05mA |
Hardware response time when ON | under 0.01ms |
Hardware response time when OFF | under 0.05ms |
Output display | when it is driven, the LED will be ON |
