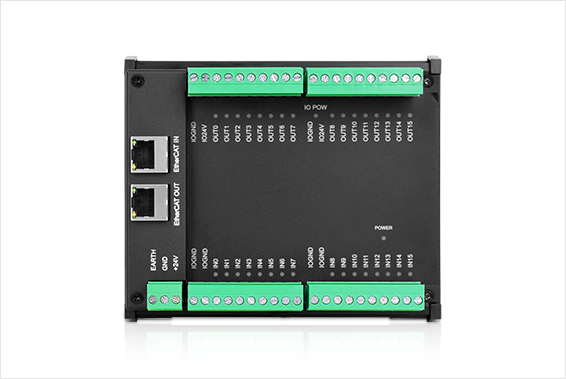

Product name ：EIO1616MT (16 IN & 16 OUT, with shell)
Specification: 16 IN & 16 OUT EtherCAT Expansion Module
EIO1616MT is an EtherCAT expansion module used for EtherCAT controllers, which can expand 16 digital inputs and 16 digital outputs. That is, when more IO resources are needed, EIO1616MT can help you. And several EIO1616MT modules can be used for one EtherCAT controller. In addition, after IO mapping, IO expansion can be achieved easily.
Digital Expansion: 16 inputs + 16 outputs (you also can select PCB type, EIO1616, which doesn’t have the shell).

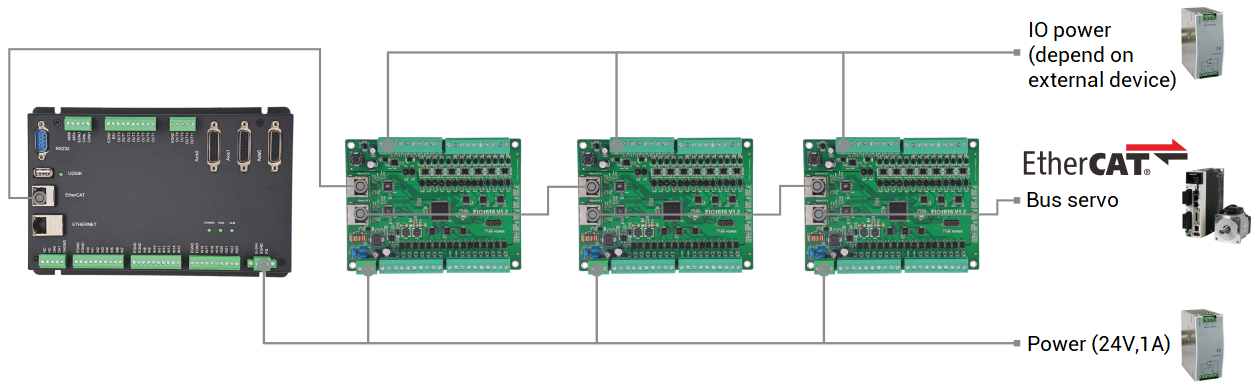

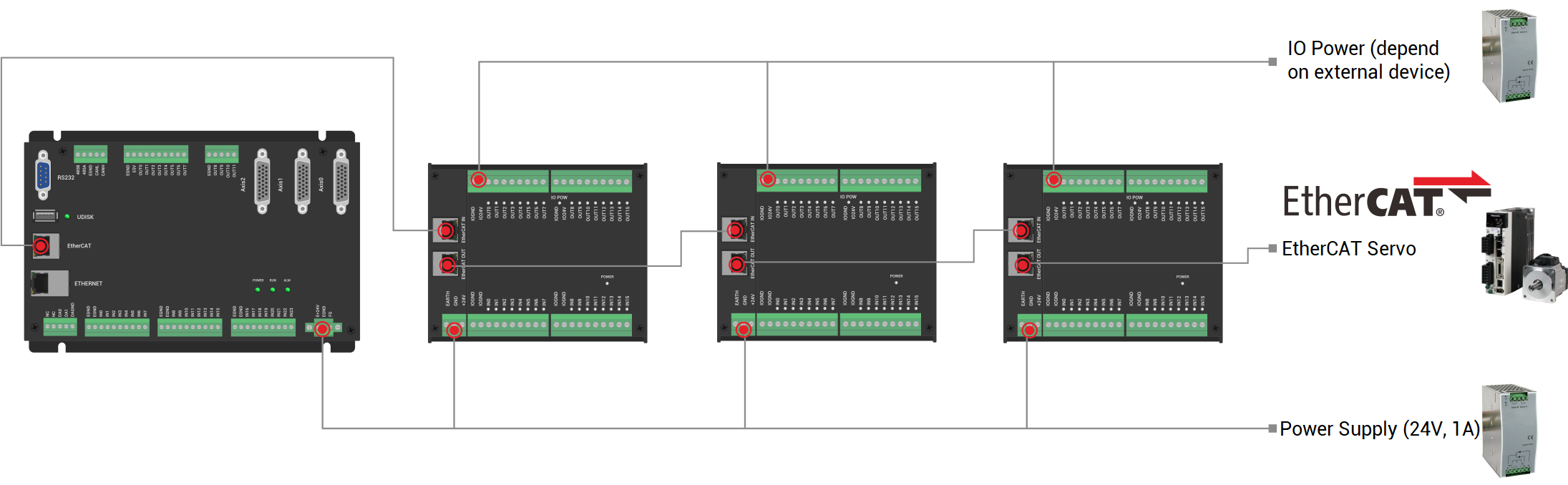

It has EtherCAT IN and EtherCAT OUT interfaces. EtherCAT IN connects to master controller, EtherCAT OUT connects to slave submodules. Please refer to “System Architecture”.
It supports IO status display led, which can check IO status conveniently.
Parameter/Specification | EIO1616MT |
Power supply | 24V DC |
Communication protocol | EtherCAT Industrial Real-Time Bus Protocol |
Services support | CoE ( PDO, SDO ) |
Communication Cycle | 250µs, 500µs, 1ms, 2ms, 4ms, etc. |
Max communication speed | Ethernet 100Mbps |
Interface | Standard Ethernet RJ45 |
Transfer Media | Standard Ethernet |
Transfer Distance | two nodes < 100m |
Input and Output link methods | 10 points wiring port |
Input and output way | analog input and output |
Isolation | optocoupler isolation |
Input type | NPN type, low-level electricity valid input |
Input Current (Typical) | 4.8mA |
Input resistance | 4.7KΩ |
Input voltage when ON | <14.5V |
Input voltage when OFF | >14.7V |
Input Status Dispaly | When IN is driven to be ON, the indicator led will be ON. |
Output Type | MOS tube, low-level electricity valid input |
Output overcurrent protection | Max 300mA |
Max leakage current when output OFF | 0.05mA |
Hardware respond time when output ON | below 0.01ms |
Hardware respond time when output OFF | below 0.05ms |
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| EIO1616 EtherCAT Expansion Module User Manual V1.6.0 | V1.6.0 | 1.15MB | Download |
