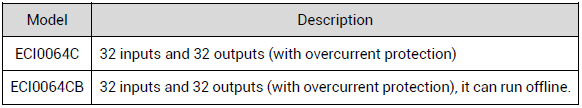

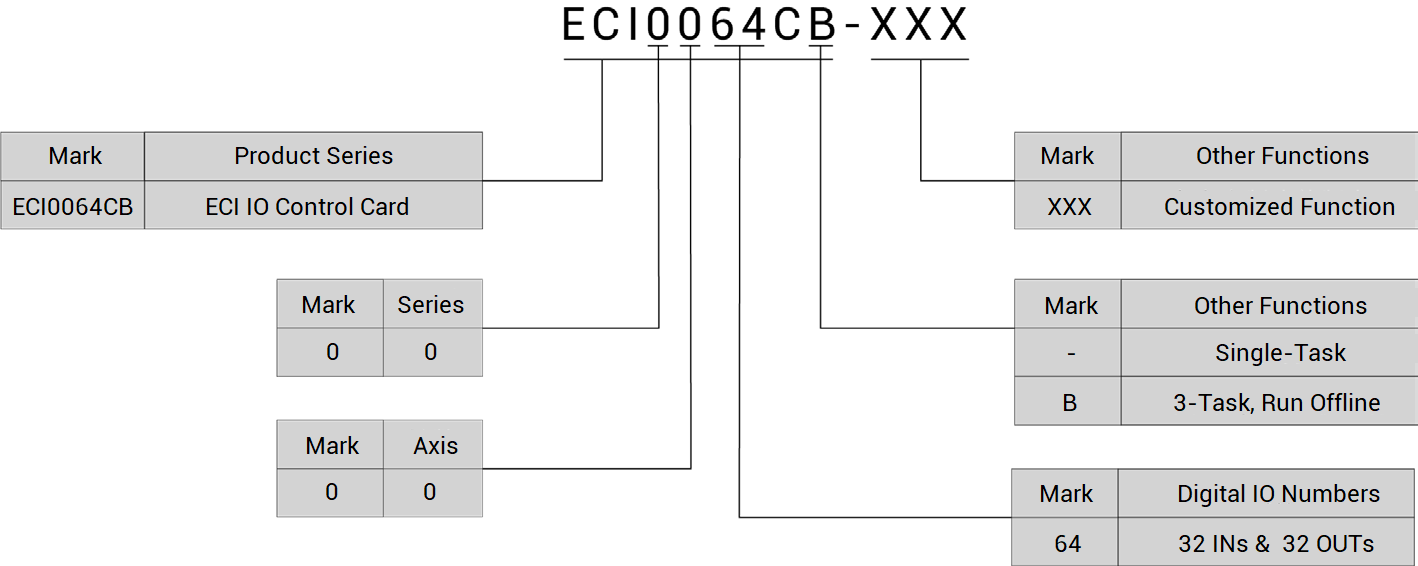

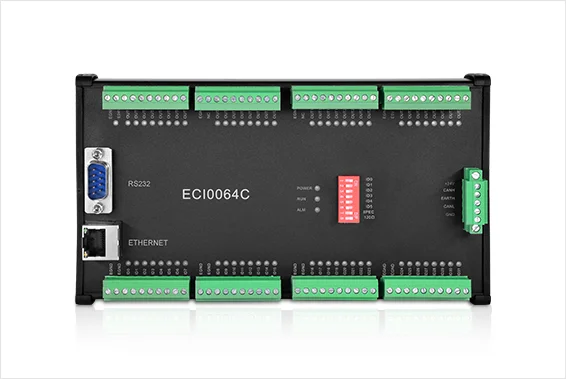

Product name ：ECI0064C
Specification: 32 IN & 32 OUT Network IO Control Card
ECI0064C is a kind of network IO control card developed by Zmotion Technology. Real-time IO control can be achieved through optimized network communication protocol.
ECI0064C network IO control card supports Ethernet and RS232 communication interface to connect to the computer. Every expansion module can be connected through CAN bus to expand inputs and outputs.
There is IO state indication led, which can check IO state.
272 isolated inputs and 272 isolated outputs can be extended through CAN bus.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Interfaces: RS232, CAN, Ethernet.
A variety of program encryption methods to protect the intellectual property rights of customers.
Features

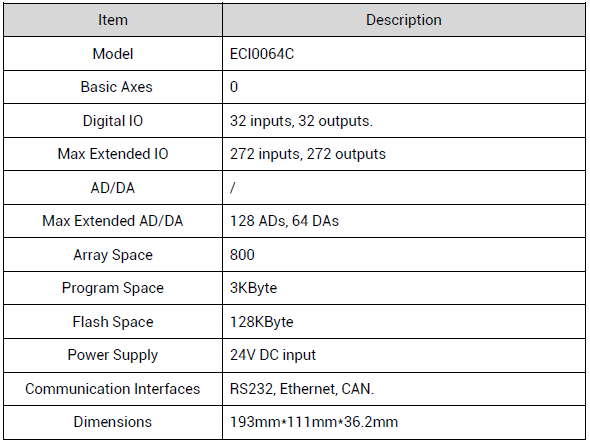

Parameters

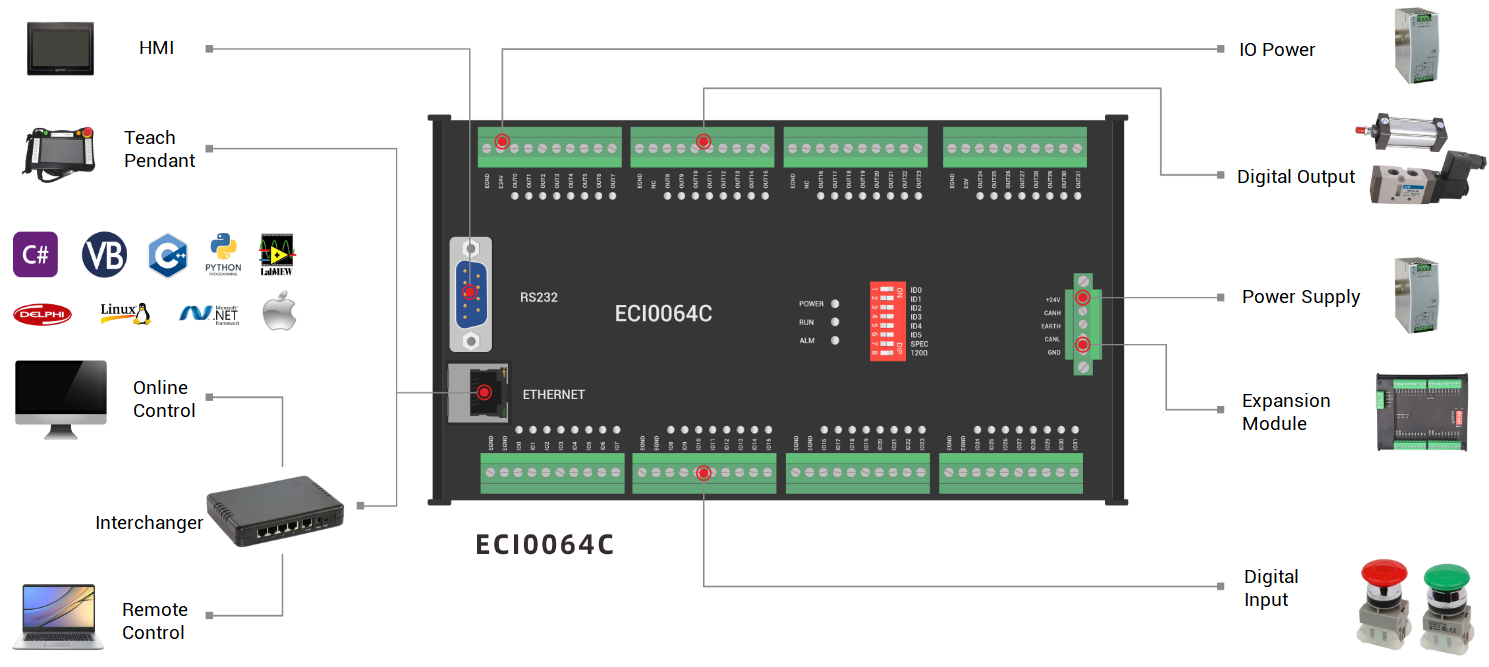

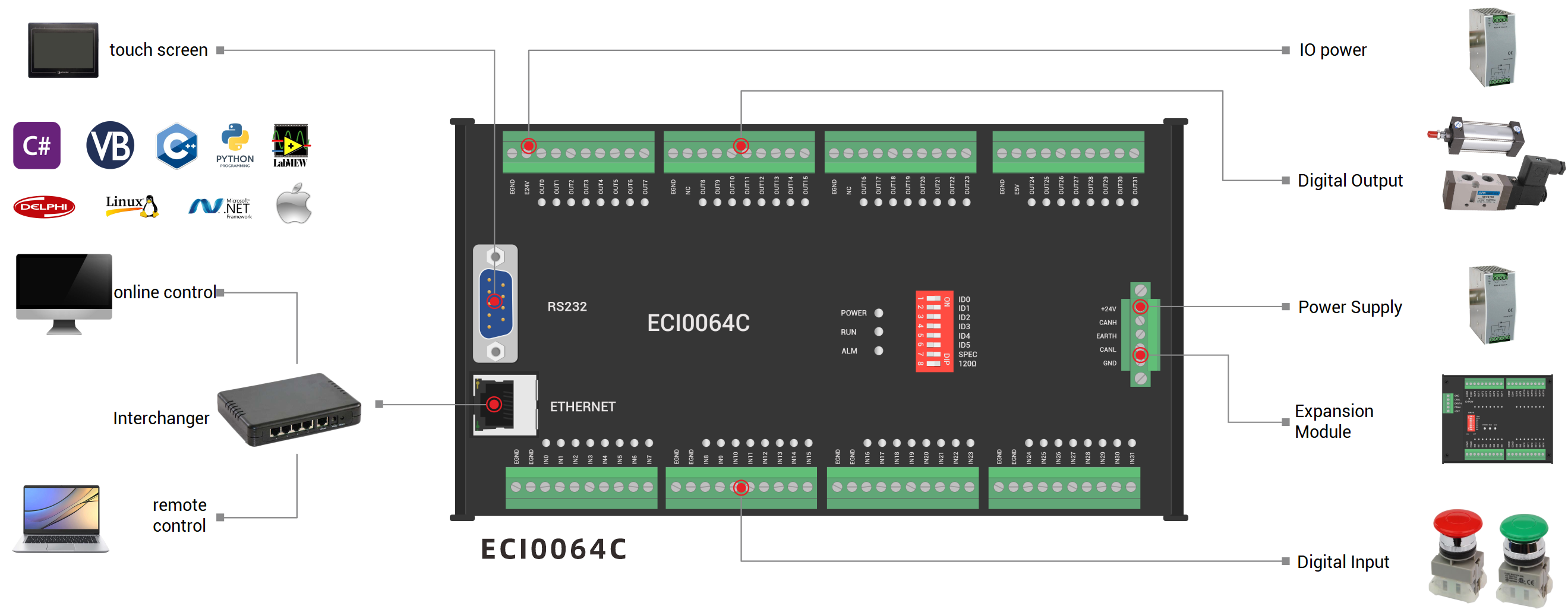

System Architecture
Download
