Product name ：ECI0016PA
Specification: 12-ADs & 2-DAs Network Data Acquisition Card
ECI0016PA is a kind of data capture card developed by Zmotion Technology. Real-time analog input capture and output control can be achieved through optimized network communication protocol.
ECI0016PA data capture card supports Ethernet and RS232 communication interface to connect to the computer. Every expansion module can be connected through CAN bus to expand inputs and outputs.
Itself has 8 isolated inputs and 8 isolated outputs, NPN type, and they are powered by IO power supply.
272 inputs and 272 outputs can be extended through CAN bus.
There are 12 ADs and 2 DAs, but 128 ADs and 64 DAs can be extended.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Interfaces: RS232, CAN, Ethernet.
Support Multi-file and multi-task programming in ZBasic.
A variety of program encryption methods to protect the intellectual property rights of customers.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ECI0016PA Data Acqusition Card User Manual V1.6.0 | V1.6.0 | 2.03MB | Download |
Features

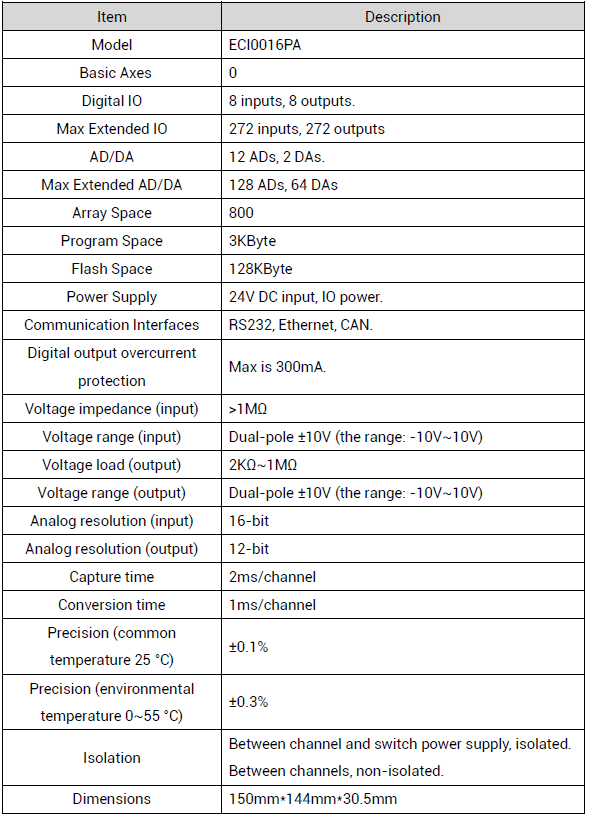

Parameters

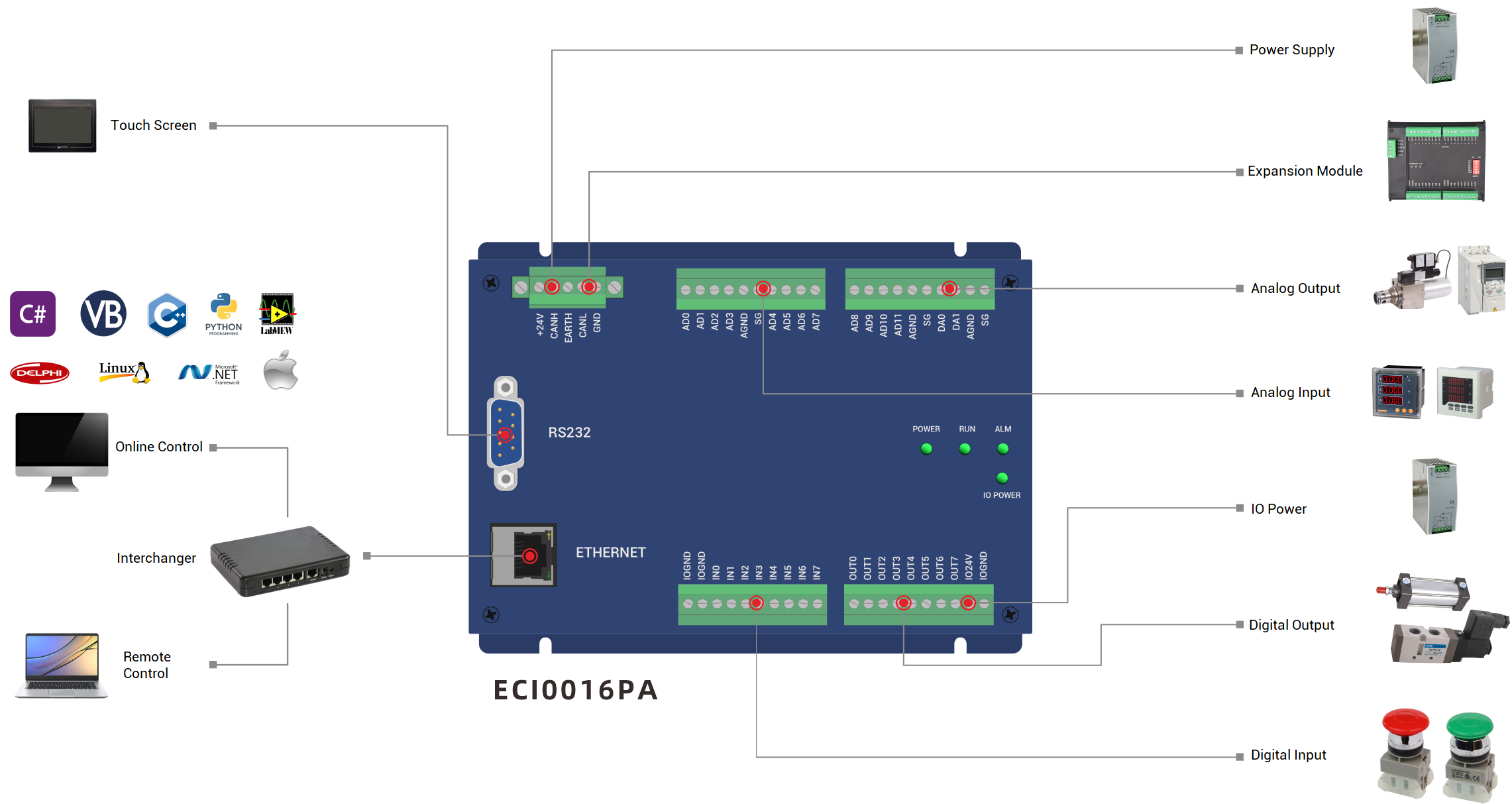

System Architecture
Download
