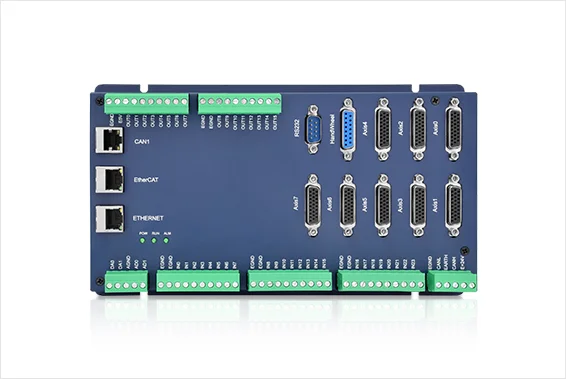

Product name ：ECI2828-V2
Specification: 8-Axis Network Motion Control Card
ECI2828-V2 economical multi-axis motion control card is a kind of network motion control card that belongs to bus type and modular type. Control card itself supports 8 axes at most, but motion control can be extended to 16 axes to achieve some simple trajectory control requirements, such as, linear interpolation, space arc, helical interpolation, electronic cam, electronic gear, synchronization follow, virtual axes, robotic arm instruction, etc., and real-time motion control can be achieved through optimized network communication protocol.
ECI2828-V2 economical multi-axis motion control card can be used in those pulse applications within 16 axes, such as, electronic semiconductor equipment (testing equipment, assembly equipment, locking equipment, soldering machine), dispensing equipment, assembly line, etc.
8 basic motion control axes, but it can be expanded to 16 axes at most.
Pulse output mode: pulse / directional or dual pulses.
AXIS interface supports encoder position measurement, which can be configured as handwheel input mode.
There is one specialized handwheel input interface.
Maximum pulse output frequency of each axis: 10MHZ.
512 isolation inputs and 512 isolation outputs can be extended at most through CAN bus.
Axis position limit signal / origin signal port can be configured as any input at will.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Interfaces: RS232, Ethernet, EtherCAT, CAN.
Support linear interpolation, any circular interpolation, helical interpolation of 16 axes at most.
Support electronic cam, electronic gear, position latch, synchronization follow, virtual axis setting, etc.
Support multi-file and multi-task programming in ZBasic.

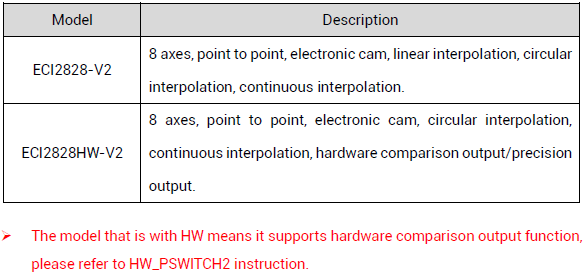

Support hardware comparison output / precision output, fly-shooting functions (HW model).
A variety of program encryption methods to protect the intellectual property rights of customers.
Features

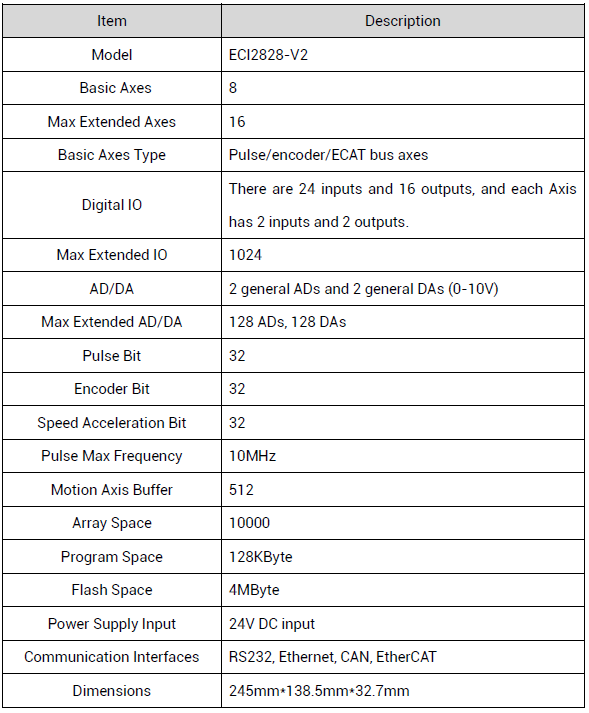

Parameters

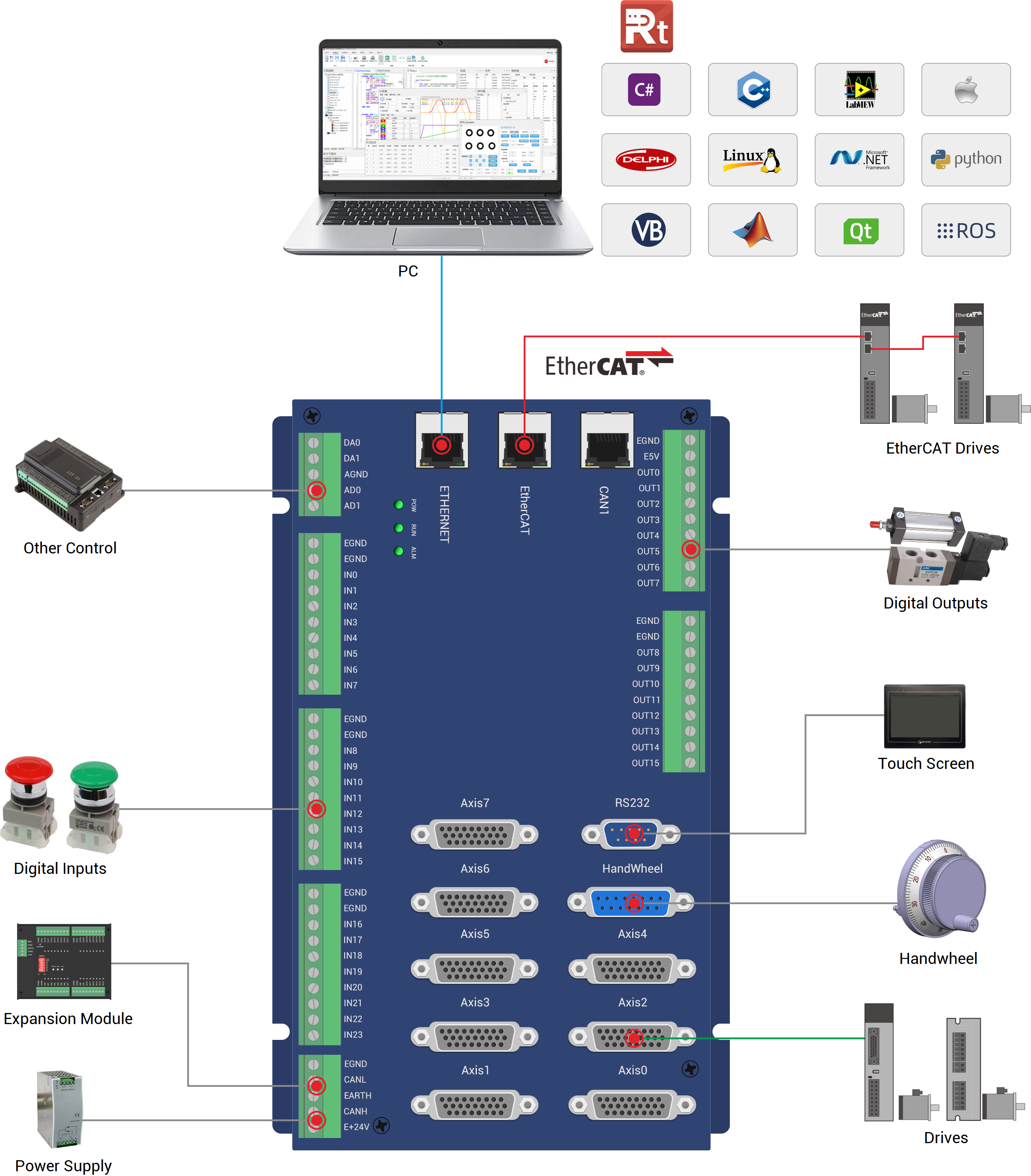

System Architecture
