Product name ：XPLC300
Specification: Vertical EtherCAT Motion Controller
XPLC300 motion controllers is a kind of EtherCAT vertical fieldbus motion controller that supports ladder diagram programming. The controller itself supports max 16 axes to achieve point to point, linear interpolation, electronic cam, and other control requirements.
This manual mainly describes XPLC300 series’ specification, property, usage, etc. Please read this manual carefully for know more about the product and use more safely.
XPLC300 series motion controllers can be applied in electronic semiconductor equipment (testing equipment, assembly equipment, locking equipment, soldering machine), dispensing equipment, non-standard equipment, printing and packaging equipment, textile and garment equipment, stage entertainment equipment, medical equipment, assembly line, etc.
16 axes motion control at most.
IO can be expanded through EtherCAT, and 512 isolated inputs and 512 isolated outputs can be extended at most.
Interfaces: EtherCAT, RS232, RS485, Ethernet.
Support point to point, synchronous motion, motion superposition, electronic cam, linear interpolation, etc.
Support U disk file reading and writing and application program upgrading, it is convenient to do remote maintaining on-site.
Support ZPLC, ZBasic and ZHMI programming.
Support secondary development on all kinds of PC platforms.
Support multi-file and multi-task programming, and PC program and controller inner program can work at the same time.
A variety of program encryption methods to protect the intellectual property rights of customers.
Support power failure detection and power failure storage. (It can detect and save when power-off)
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| XPLC300 Vertical EtherCAT Motion Controller User Manual V1.7.0 | V1.7.0 | 1.62MB | Download |
Features

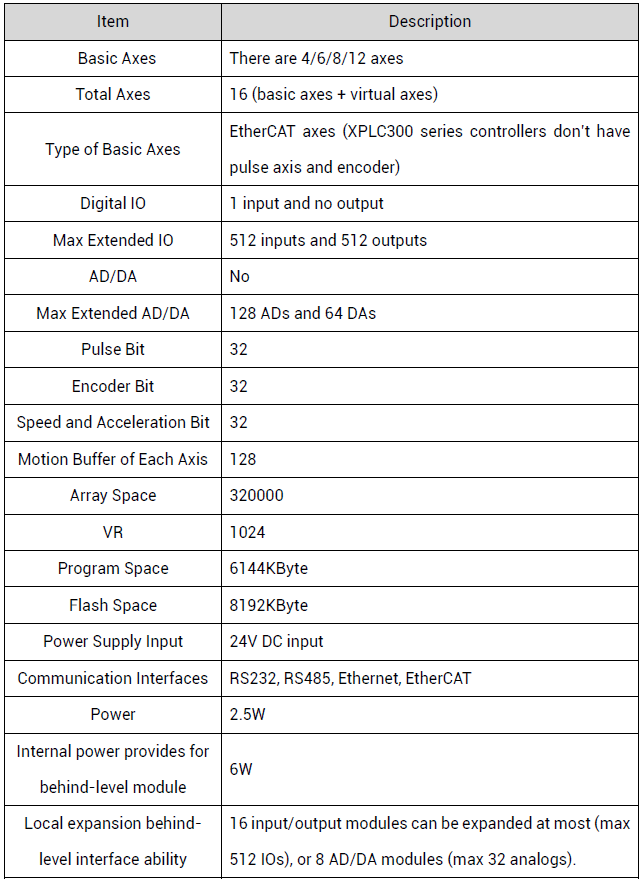

Parameters

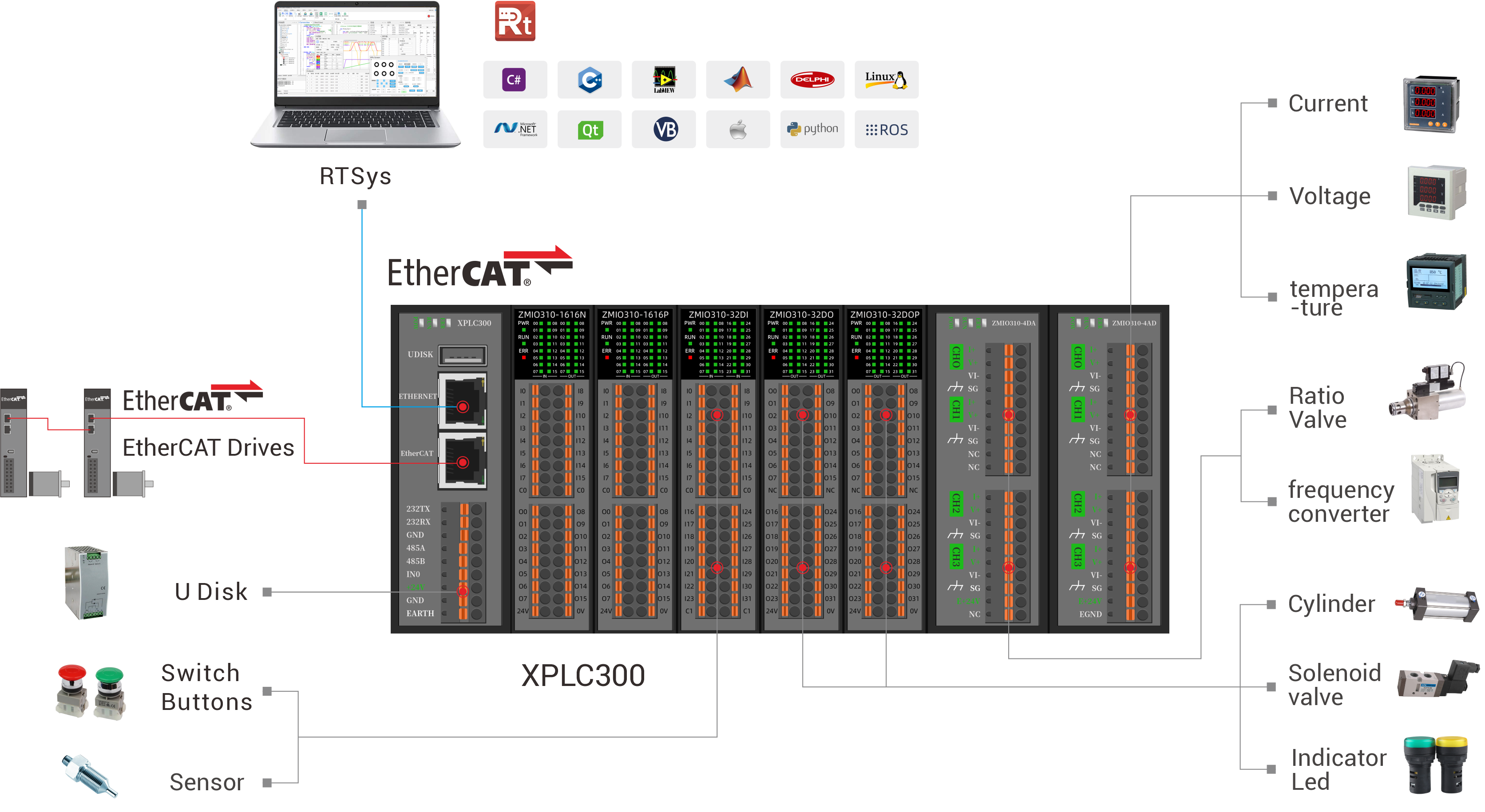

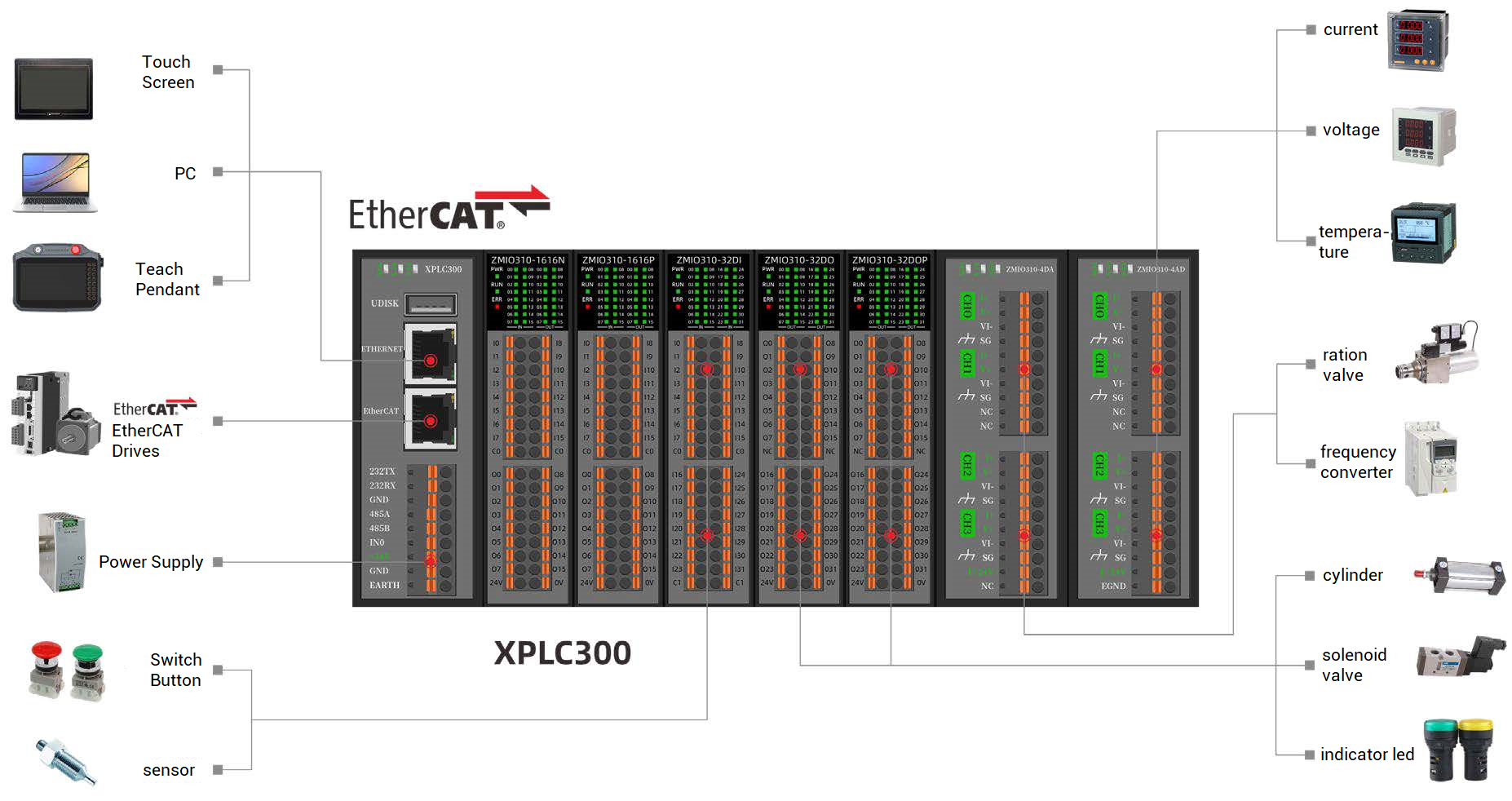

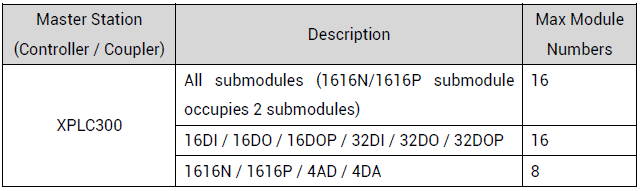

System Architecture
