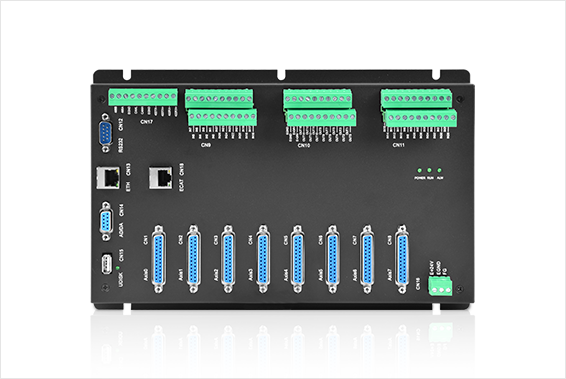

Product name ：ZMC308BE
Specification: 8-Axis EtherCAT & Pulse Motion Controller
ZMC308BE high-performance multi-axis motion controller is a stand-alone motion controller that is compatible with EtherCAT and pulse type. The controller itself supports complex continuous trajectory control requirements of up to 16 axes.
Automation Motion Control Applications:
Robots (SCARA, Delta, 6 joints), Electronic Semiconductor Equipment (testing equipment, assembly equipment, locking equipment, soldering machine), Dispensing Equipment, Non-Standard Equipment, Printing and Packaging Equipment, Textile and Garment Equipment, Stage Entertainment Equipment, Medical Equipment, Assembly Line, etc.
Motion control of up to 16 axes.
Pulse output mode: pulse / direction or dual pulses.
Maximum pulse frequency output of each axis: 10MHZ.
512 isolation inputs and 512 isolation outputs can be extended at most through CAN / EtherCAT.
Axis position limit signal / origin signal port can be configured as any input at will.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Interfaces: EtherCAT, RS232, RS485, RS422, U Disk, Ethernet.
Support linear interpolation, any circular interpolation and helical interpolation of 16 axes at most.
Support electronic cam, electronic gear, position latch, synchronous follow, virtual axis, etc.
Support pulse closed loop, pitch compensation and other functions.
Multi-file and multi-task programming in Basic.
A variety of program encryption methods to protect the intellectual property rights of customers.
Power failure detection and power failure storage.
Support 2 precision outputs (OP0/1) and support hardware comparison output (HW_PSWITCH2).
Features

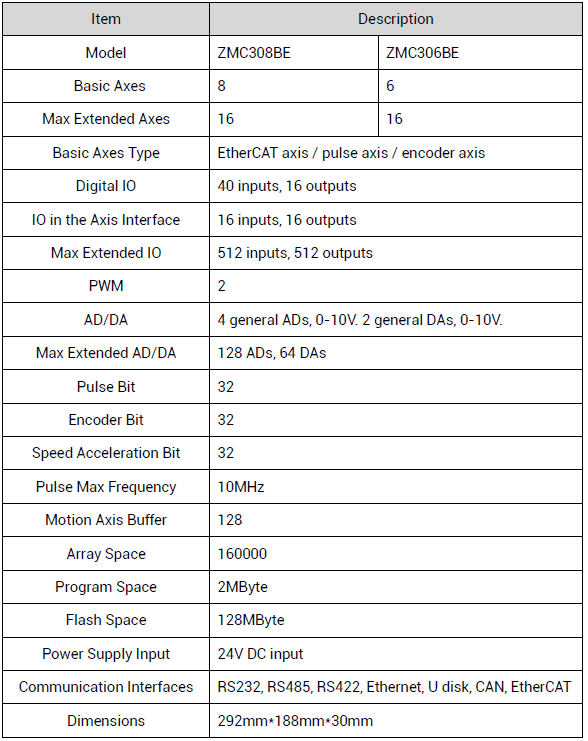

Parameters

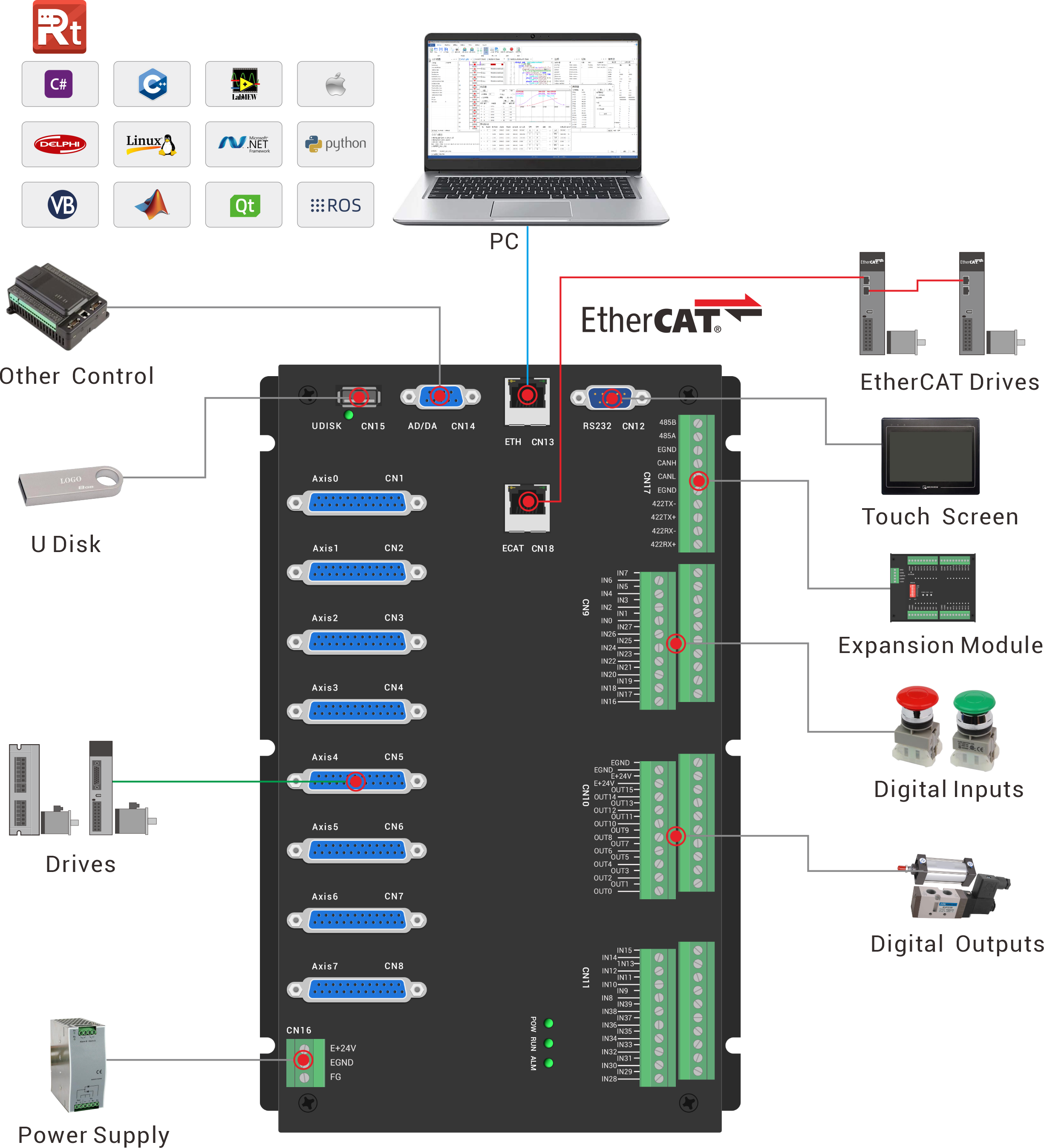

System Architecture
