CAN Vertical Module ZMIO310 | IO & AIO

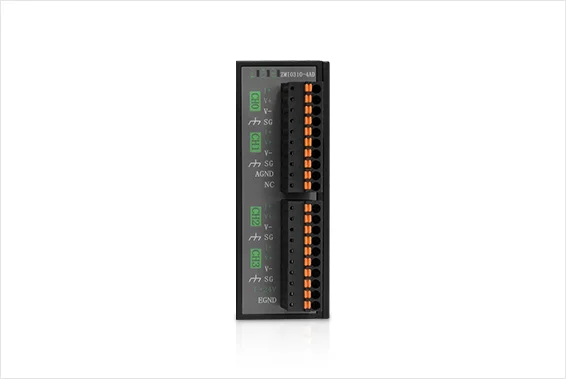

Product name ：ZMIO310-4AD CAN 4-Analog Input Sub-Module

Specifications: Vertical EtherCAT AIO Anlog Input Module

The ZMIO310-4AD expansion sub-module is a 4-channel analog input expansion sub-module used by the ZMIO310 expansion module. When the AIO resources are not enough, it can be used with the ZMIO310-ECAT communication modules to expand the number of analog inputs.

  • IOs: up to 256 inputs and 256 outputs through one coupler.
    Analogs: up to 32 ADs or 32 DAs through one coupler.

  • Specification

    ZMIO310-4AD

    Input Channels

    4

    Power Supply

    24Vdc

    Voltage Input Resistance

    >1MΩ

    Voltage Input Range

    bipolar ±5V, ±10V, unipolar +5V,+10V

    Current Input Range

    0~20mA，4~20mA，-20~20mA

    Resolution

    16 bits

    Sample Time

    1ms/channel

    Precision (25℃)

    Voltage:±0.1%, Current:±0.1% (full range)

    Precision (0~55℃)

    Voltage:±0.3%, Current:±0.8%

    Inner Power

    0.4W

    Total Power

    0.7W

    Isolation Mode

    Opto-couplers Isolation


  • 架构图.png

  • Name Version No Format Size Download
    ZMIO310 Vertical Bus Expansion Module User Manual V1.0 V1.0 PDF 2.51MB Download
    ZMIO310 (32) Vertical Bus Expansion Module V2.1.0 V2.1.1 PDF 4.02MB Download
