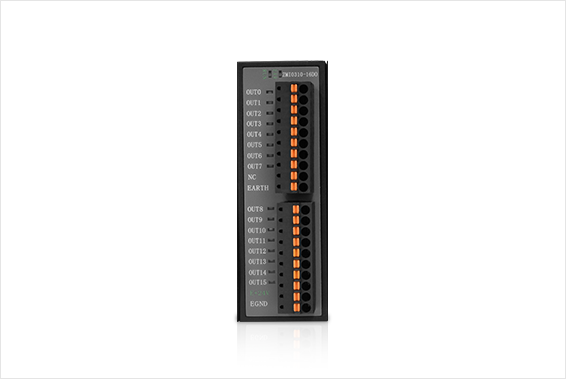

Product name ：ZMIO310-16DO CAN 16-Output (NPN) Sub-Module
Specifications: Vertical CAN Bus IO Digital Output Module
The ZMIO310-16DO expansion sub-module is a 16-channel digital output expansion sub-module used by the ZMIO310 expansion module. When the IO resources are not enough, it can be used with the ZMIO310-ZCAN communication modules to expand the number of digital outputs.
IOs: up to 256 inputs and 256 outputs through one coupler.
Analogs: up to 32 ADs or 32 DAs through one coupler.
Specification | ZMIO300-16DO |
Output Channels | 16 24V DC |
Output Number | 16 |
Output Type | Digital Output |
Output Mode | Lekage type (NPN type, it is low-level electricity when outputs) |
Output Overcurrent Protection | Maximum is 300mA |
The max leakage current when is OFF | 0.05mA |
Respond Time when is ON | below 0.05ms |
Respond Time when is OFF | below 0.03ms |
Inner Power | 0.3W |
Total Power | 1.3W |
Isolation Mode | Opto-couplers Isolation |
Input Display | Light is on while input is ON. |
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMIO310 Vertical Bus Expansion Module User Manual V1.0 | V1.0 | 2.51MB | Download |
Features
Parameters

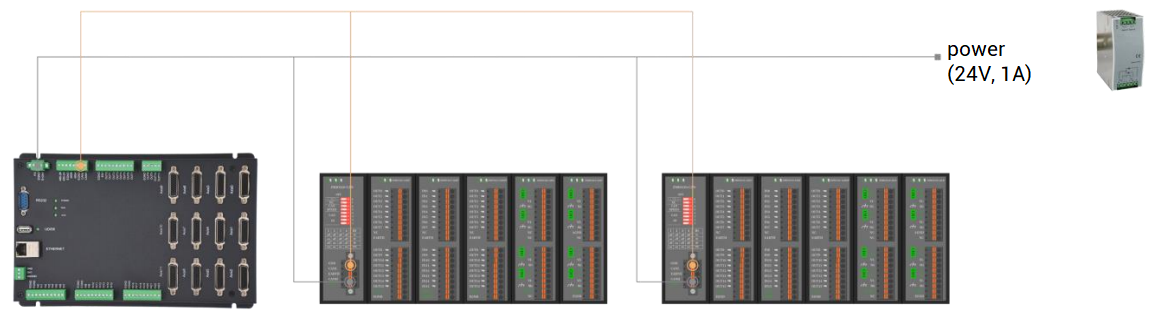

System Architecture
