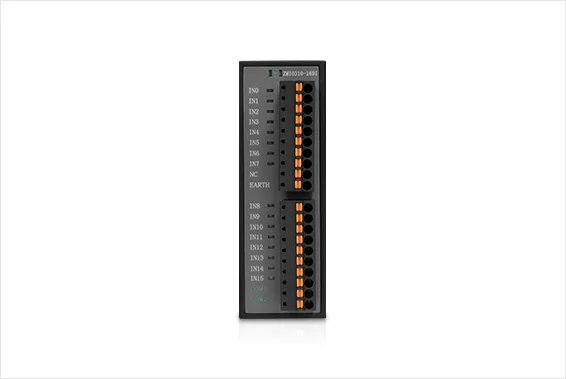

Product name ：ZMIO310-16DI Can Expansion Module
Specifications: Vertical CAN Bus IO Digital Input Module
The ZMIO310-16DI expansion sub-module is a 16-channel digital input expansion sub-module used by the ZMIO310 expansion module. When the IO resources are not enough, it can be used with the ZMIO310-ZCAN communication modules to expand the number of digital input ports.
IOs: up to 256 inputs and 256 outputs through one coupler.
Analog: up to 32 ADs or 32 DAs through one coupler.
Specification | ZMIO310-16DI |
Input Channels | 16 24V DC |
Input Number | 16 |
Input Type | Digital Input |
Input Mode | PNP(COM1 connects to power supply 24V-, COM2 connects to power supply 24+) or NPN(COM1 connects to power supply 24V+, COM2 connects to power supply 24-) |
Input Current(standard) | 4.8mA |
Input Impedance | 4.7KΩ |
Voltage while ON | PNP >7.2V, NPN<14.5V |
Voltage while OFF | PNP<6.8v, npn="">14.7V |
Inner Power | 0.3W |
Total Power | 1.9W |
Isolation Mode | Opto-couplers Isolation |
Input Display | Light is on while input is ON. |
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMIO310 Vertical Bus Expansion Module User Manual V1.0 | V1.0 | 2.51MB | Download |
