Product name ：XPLC006E-V2
Specification: 6-Axis EtherCAT Motion Controller
XPLC006E-V2 is a kind of economical multi-axis motion controller that integrates Basic, PLC and HMI programming methods.
XPLC006E-V2 economical multi-axis motion controller is compatible with EtherCAT bus, and itself supports 6 axes motion control, but 12 axes can be expanded to achieve some control requirements, such as point to point, linear motion, electronica cam.
6-12 axes motion control.
The fastest refresh period of EtherCAT bus is 1ms.
512 isolated inputs and 512 isolated outputs can be extended at most through CAN bus and EtherCAT bus.
Axis position limit signal / origin signal port can be configured as any input at will.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Interfaces: EtherCAT, RS232, RS485, Ethernet.
Support 12 axes linear interpolation.
Support electronic cam, electronic gear, synchronous follow, virtual axis, and other functions.
Support multi-file and multi-task programming in ZBasic.
A variety of program encryption methods to protect the intellectual property rights of customers.
Support power failure detection and power failure storage. (It can detect and save when power-off)
Features
Parameters

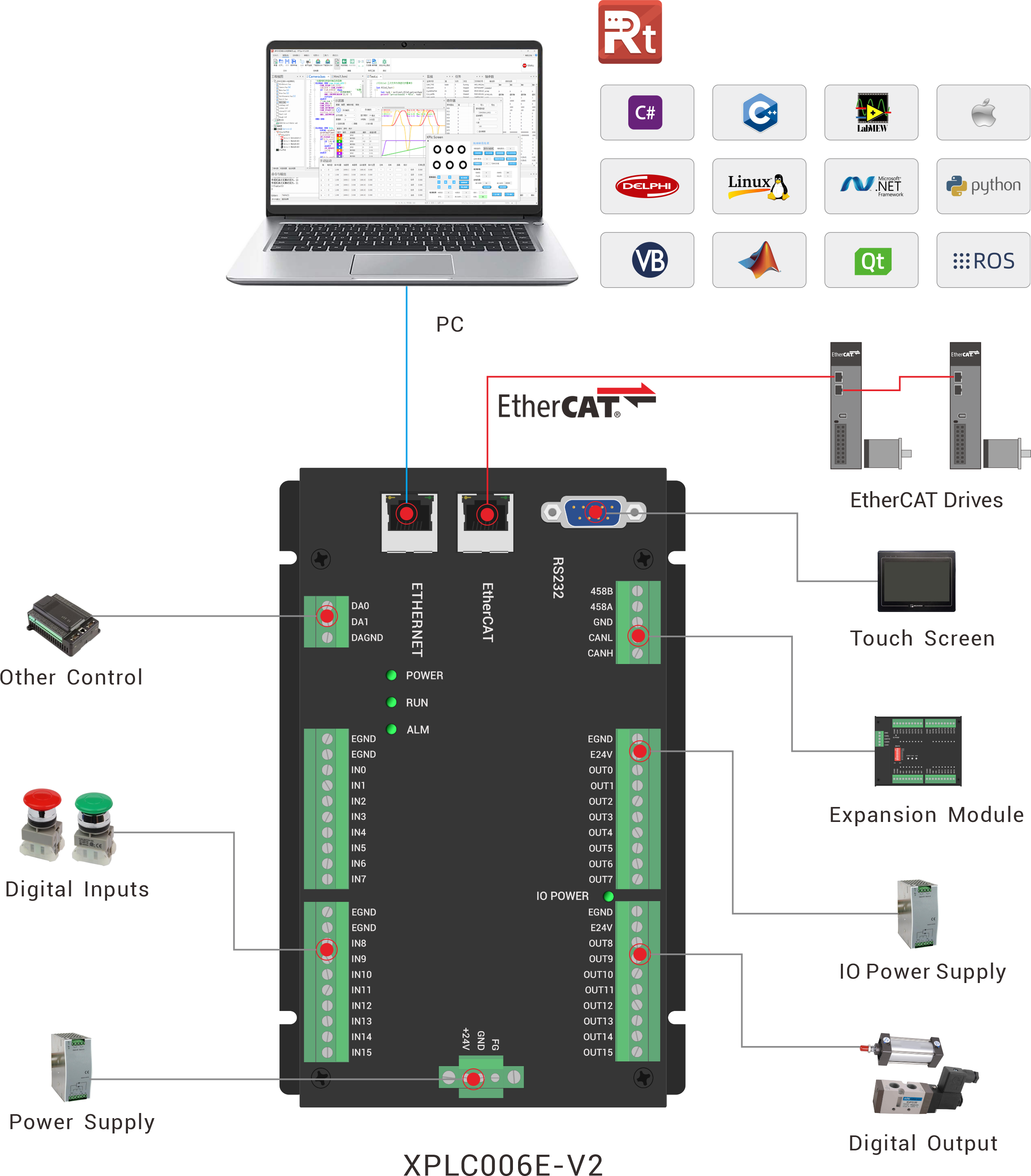

System Architecture
