Product name ：ZMC464
Specification: 64-Axis EtherCAT Motion Controller

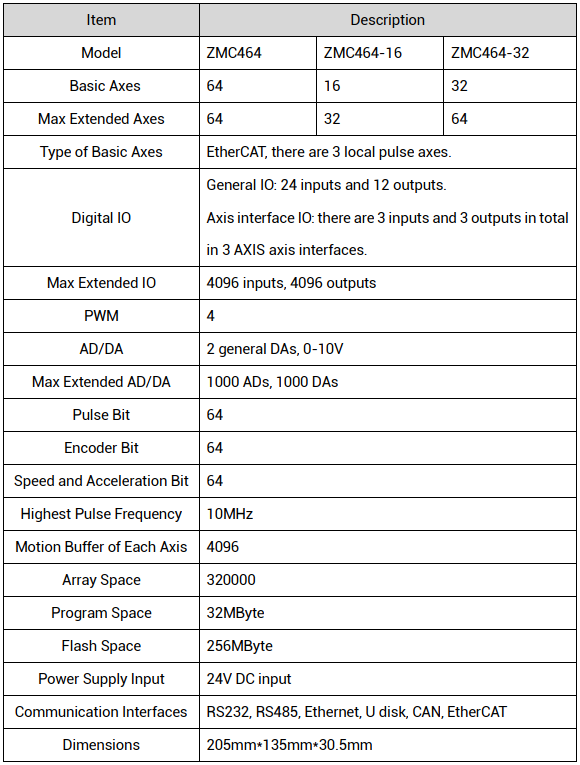

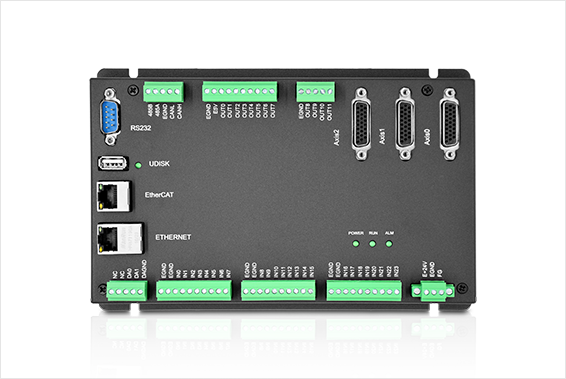

ZMC464 is one high-performance multi-axis standalone motion controller that is compatible with EtherCAT and pulse. It supports up to 64 axes for complex continuous trajectory control requirements.
ZMC464 high-performance multi-axis motion controller can be applied in robot (SCARA, Delta, 6-joint), electronic semi-conductor equipment (detection device, assembly device, locking device, welding machine), dispensing device, non-standard equipment, textile and garment equipment, entertainment equipment, medical equipment, assembly line, etc.
64 axes motion control at most.
Pulse output mode: pulse / direction or dual pulses or quadrature pulse.
Support encoder position measurement, which can be configured as handwheel input mode.
Maximum pulse output frequency of each axis is 10MHZ.
IO can be expanded through ZCAN and EtherCAT, and 4096 isolated inputs and 4096 outputs can be extended at most.
Axis position limit signal / origin signal port can be configured as any input at will.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.

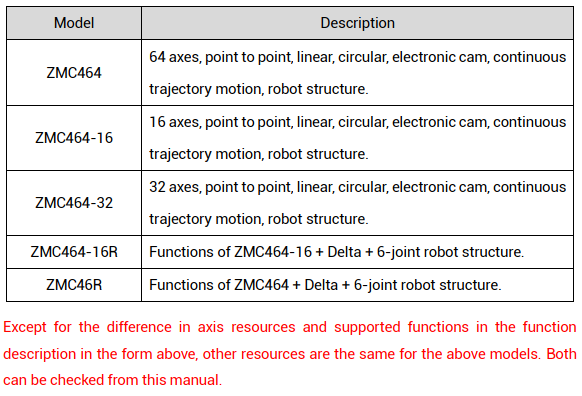

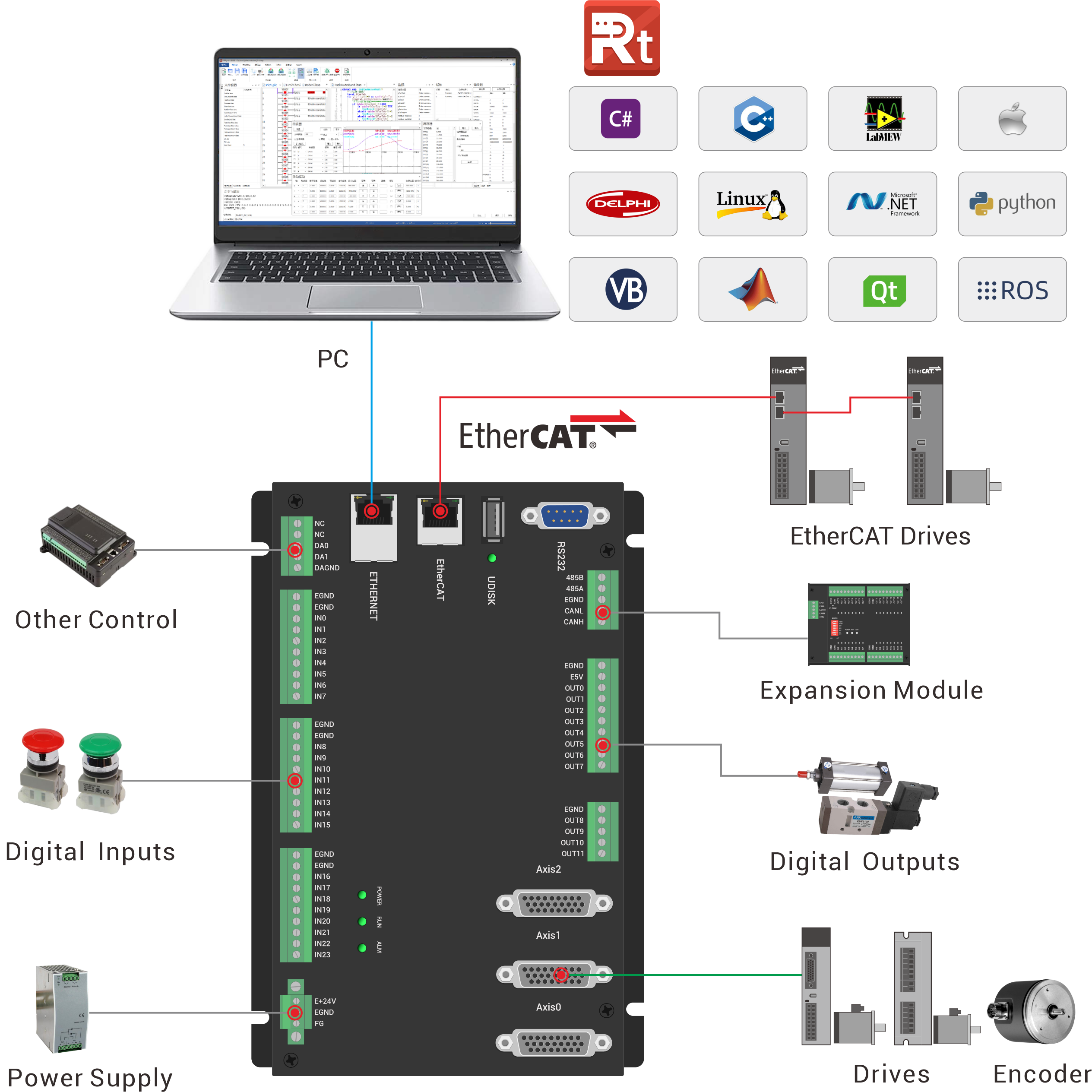

Interfaces: EtherCAT, RS232, RS485, U Disk, Ethernet.
Support up to 64 axes linear interpolation, arbitrary circular interpolation, helical interpolation, and spline interpolation.
Support electronic cam, electronic gear, position latch, synchronous follow, virtual axis, and other functions.
Support hardware comparison output (HW_PSWITCH2), hardware timer, precision output when in motion.
Support pulse closed loop, pitch compensation and other functions.
Support multi-file and multi-task programming in ZBasic.
A variety of program encryption methods to protect the intellectual property rights of customers.
Support power failure detection and power failure storage. (It can detect and save when power-off)
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMC464 Motion Controller User Manual V1.5 | V1.5 | 2.92MB | Download |
