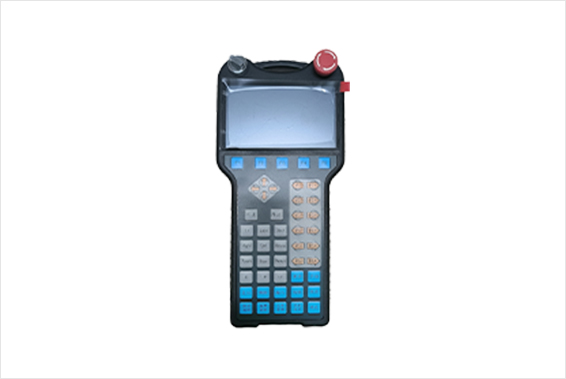

ZHD300X

Product name ：ZHD300X

Specificatio: ZHD300X teach pendant

ZHD300X is a kind of touch screen teach pendant displayed through network, and it must be used with Zmotion motion controller that supports HMI function.

Hardware: USB, 24V power supply, 480*272 resolution, 47 buttons, EMG switch.
Software: RTSys, develop your program HMI interface by RTHmi language in RTSys

  • Through communicating with controller scripts, show and operate all kinds of interfaces.
    Drawing functions: line, circle, pircute, characters (Chinese and English), etc.
    Emergency button embedded.
    47 keys embedded, and this can be customized.
    Serial port, U drive port, etc.
    Support Modbus TCP/IP or Modbus RTU or self-defined protocol.
    Capable of different kinds of machines or robots control.
    Support screen touch.

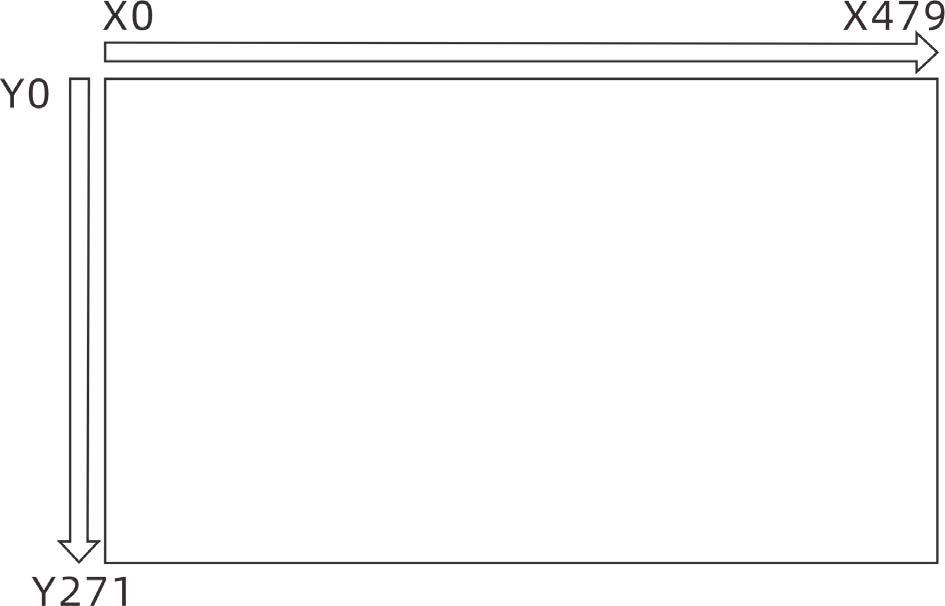

    Screen resolution:480*272

  • Pin

    Name

    Specifications

    1

    UDISK 5V

    U drive signal

    2

    UDISK-

    U drive signal

    3

    UDISK+

    U drive signal

    4

    UDISK GND

    U drive signal

    5

    EGND

    External power ground

    6



    7

    EMG

    Normal closed emergency output

    8



    9

    DC 24V

    Power Supply

    10

    EGND

    Reserved

    11



    12

    TX-

    ETH orange, Pin 2 of RJ45

    13

    TX+

    ETH gray and orange, Pin 1 of RJ45

    14

    RX-

    ETH green, Pin 6 of RJ45

    15

    RX+

    ETH gray and green, Pin 3 of RJ45

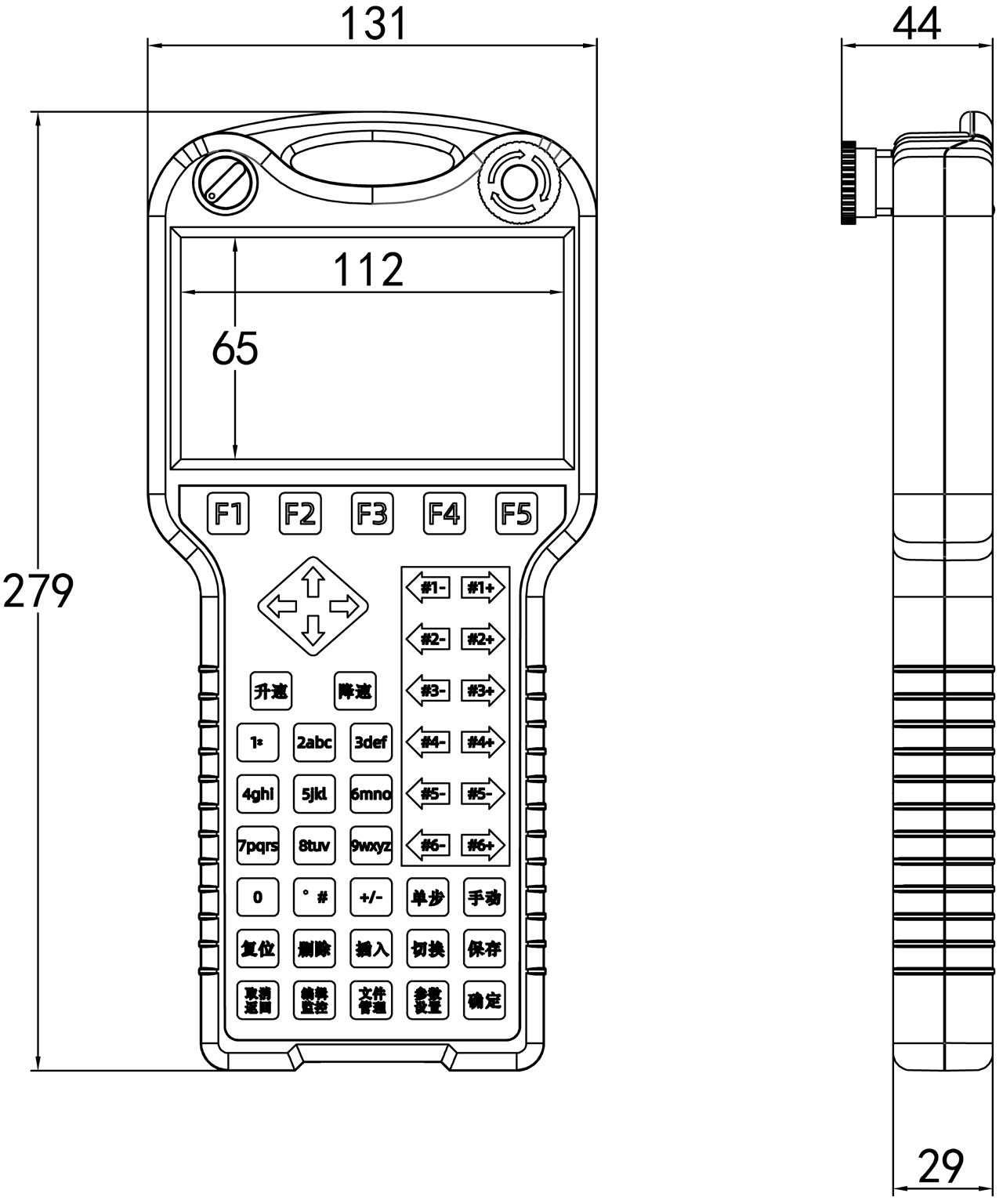

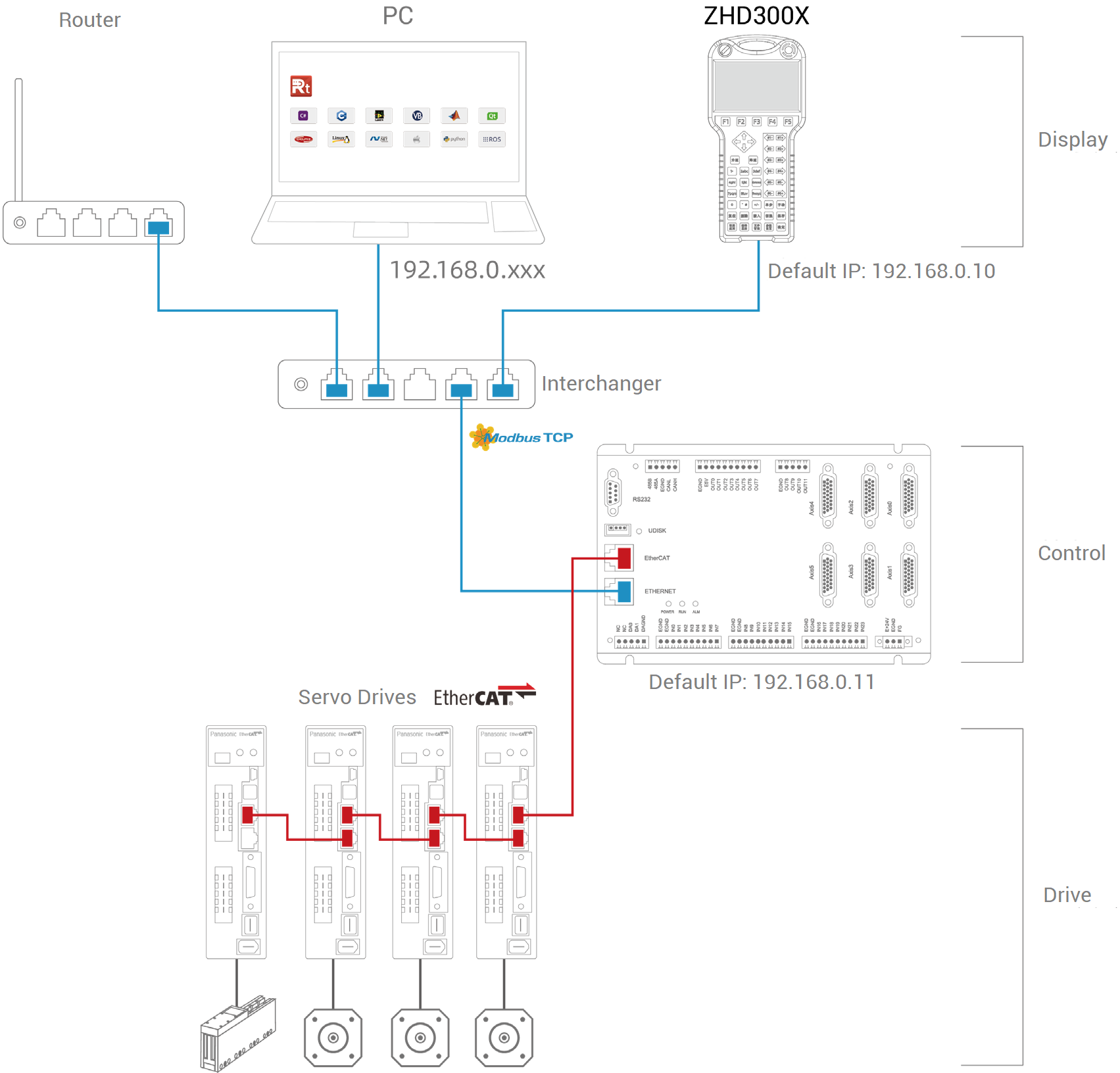

  • 2.png




  • Name Version No Format Size Download
    ZHD300X Teach Pendant User Manual V2.0.1 V2.0.1 PDF 1.34MB Download
    RTHMI Programming Manual V1.2.0 PDF 7.23MB Download
