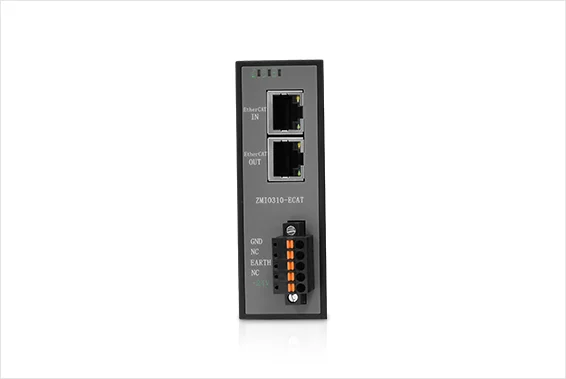

Product name ：ZMIO310-ECAT Expansion EtherCAT Communication Module
Specifications: Vertical EtherCAT Communication Module
ZMIO310-ECAT communication module is the EtherCAT salve station communication module used together with EtherCAT controllers. When IO, AIO resources are not enough, ECAT bus communication module needs to be added, then connect to other sub expansion modules.

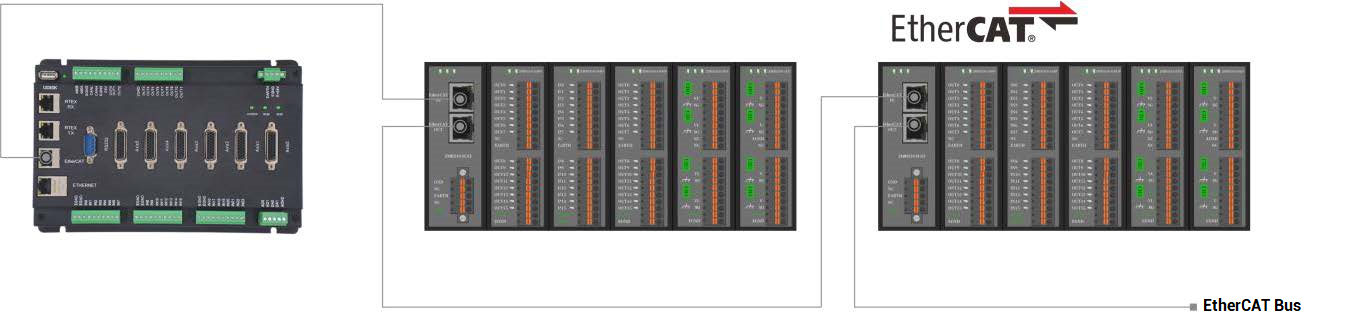

"ZMIO310-ECAT + ZMIO310-16DI + ZMIO310-16DO + ......"
IO: one coupler can expand up to 256 inputs or outputs.
Analog: one coupler can expand up to 32 ADs or 32 DAs.
Item | Specification |
Power Voltage | 24V DC |
Communication Protocol | EtherCAT Industrial Real-time Bus Protocol |
Service | CoE (PDO, SDO), firmware upgrade |
Communication Cycle | 250μs, 500μs, 1ms, 2ms, 4ms, etc. |
Max Communication Speed | Ethernet 100Mbqs |
Network Port | Standard Ethernet RJ45 interface |
Transfer Medium | 5E Category STP |
Transfer Distance | Distance between two nodes is less than 100m |
Continuation Sub Module Expansion | Up to16 input/output modules are expanded, or 8 AD/DA modules, the total number can be up to 16, the actual number depends on each module’s power. |
Max IOs of Continuation Sub Module | 256 inputs or 256 outputs |
Max AIOs of Continuation Sub Module | 32 ADs or 32 DAs |
Continuation slave station number | Up to 32 |
Power | 1.6W |
Internal power for behind level | 8.4W |
