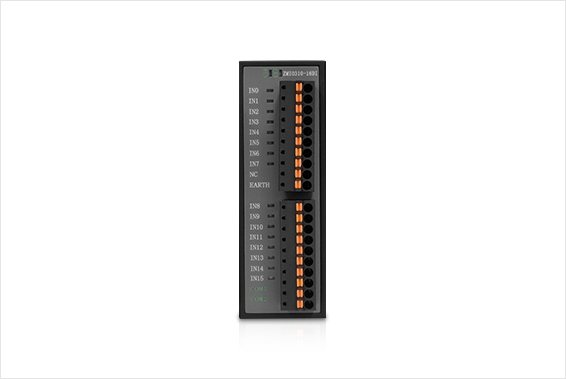

Product name ：ZMIO310-16DI EtherCAT Expansion Module
Specifications: Vertical EtherCAT IO Digital Input Module
ZMIO310-16DI is a 16 digital inputs expansion module used for ZMIO310 expansion modules. When IO resources are not enough, it can be matched with ZMIO310-ECAT communication module to expand digital input terminal numbers.
IO: one coupler can expand up to 256 inputs or outputs.
Analog: one coupler can expand up to 32 ADs or DAs.
Item | Specification |
Power Voltage | 24V DC |
The number of inputs | 16 |
Type of input | Digital input |
Voltage input method (power supplied by IO) | PNP (COM1 is connected to 24V power -, COM2 is connected to 24V power +) or NPN (COM1 is connected to 24V power +, COM2 is connected to 24V power -) |
Current (input)(typical) | NPN type (-4.8mA), PNP type (+4.8mA) |
Impedance (input) | 4.7KΩ |
Action showing (input) | When input is ON, the input indication led will light. |
Voltage when ON | PNP Type >7.2V or NPN type<14.5V |
Voltage when OFF | PNP Type >6.8V or NPN type<14.7V |
Internal Power | 0.3W |
Power | 1.9W |
Isolation | Coupler isolation |
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZMIO310 Vertical Bus Expansion Module User Manual V1.0 | V1.0 | 2.51MB | Download |
