EtherCAT Vertical Module ZMIO310 | IO & AIO

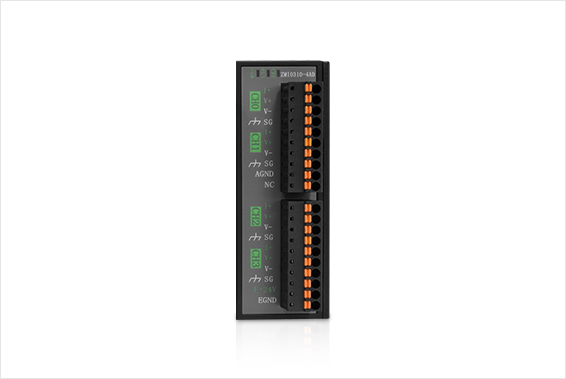

Product name ：ZMIO310-4AD EtherCAT 4-Analog Input Sub-Module

Specifications: Vertical EtherCAT AIO Analog Input Module

ZMIO310-4AD is a 4 analog inputs expansion module used for ZMIO310 expansion modules. When AIO resources are not enough, it can be matched with ZMIO310-ECAT communication module to expand analog input terminal numbers.

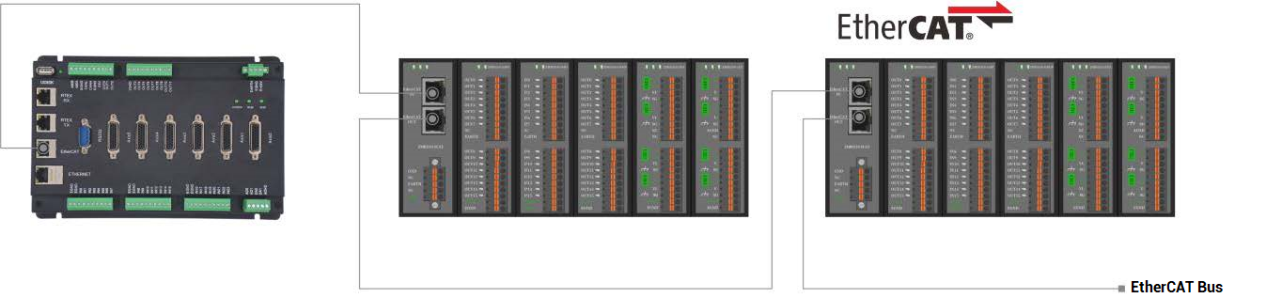

  • IO: one coupler can expand up to 256 inputs or outputs.
    Analog: one coupler can expand up to 32 ADs or DAs.

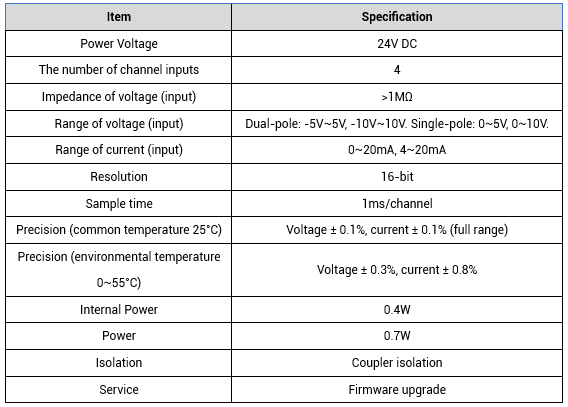

  • image.png

  • 0.png

  • Name Version No Format Size Download
    ZMIO310 Vertical Bus Expansion Module User Manual V1.0 V1.0 PDF 2.51MB Download
    ZMIO310 (32) Vertical Bus Expansion Module User Manual V2.0.0 V2.0.0 PDF 3.82MB Download
