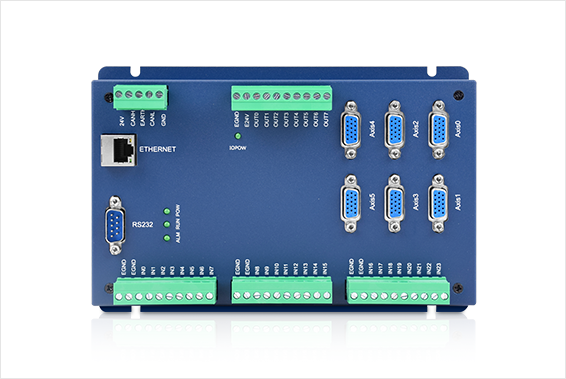

Product name ：ECI2608
Specification: 6-Axis Network Motion Control Card
ECI2608 series economical multi-axis motion control card is a kind of network motion control card that belongs to pulse type and modular type. Control card itself supports 6 axes at most, but motion control can be extended to 12 axes to achieve some simple trajectory control requirements, such as, linear interpolation, space arc, helical interpolation, electronic cam, electronic gear, synchronization follow, virtual axes, robotic arm instruction, etc., and real-time motion control can be achieved through optimized network communication protocol.
6 basic motion control axes, but it can be expanded to 12 axes.
Pulse output mode: pulse / directional or dual pulses.
AXIS interface supports encoder position measurement, which can be configured as handwheel input mode.
Maximum pulse output frequency of each axis: 10MHZ.
272 isolation inputs and 272 isolation outputs can be extended at most through CAN bus.
Axis position limit signal / origin signal port can be configured as any input at will.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Interfaces: RS232, Ethernet, CAN
Support linear interpolation, any circular interpolation, helical interpolation of 12 axes at most.
Support point to point, electronic cam, linear interpolation, circular interpolation, continuous interpolation, robotic arm instructions.
Support multi-file and multi-task programming in ZBasic.
A variety of program encryption methods to protect the intellectual property rights of customers.
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ECI2608 Motion Control Card User Manual V1.5 | V1.5 | 2.12MB | Download |
Features

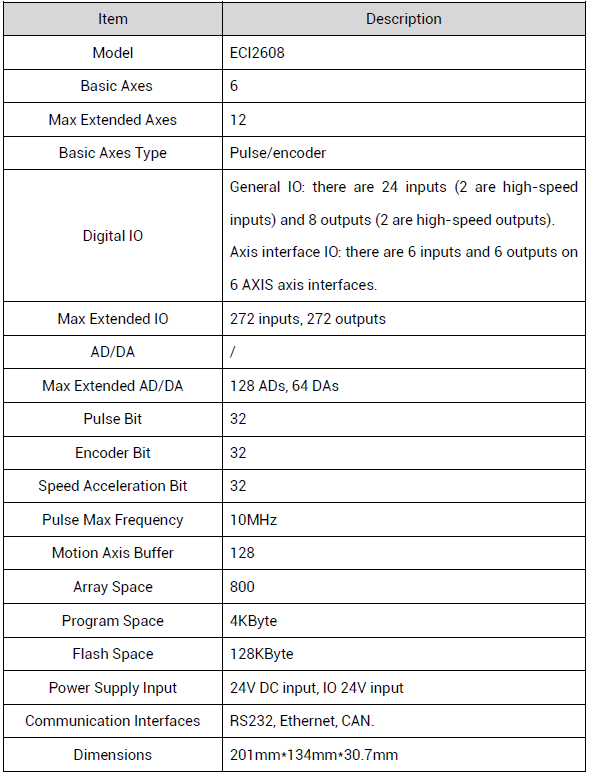

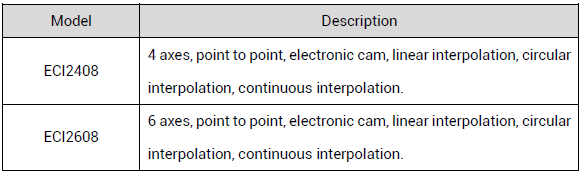

Parameters

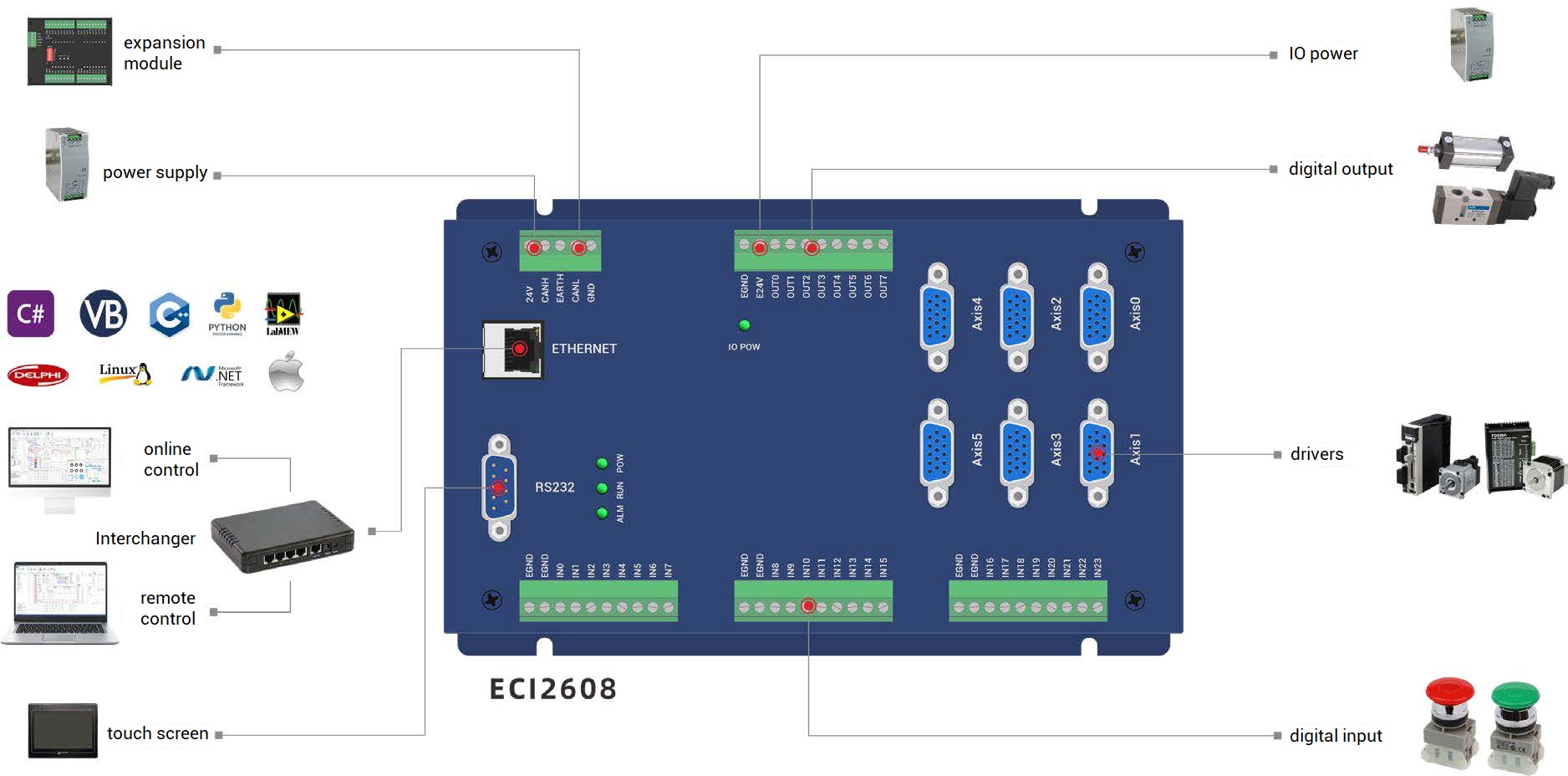

System Architecture
