2025 Shanghai CIIF will be held in National Exhibition & Convention Center (Shanghai China) during September 23-27, 2025. And in this 25^th CIIF, except Zmotion main motion controllers, new products and its solutions will be shown in booth 6.1H-E261, like, high-speed & high-precision pc-based motion control card and strong real-time motion control kernel MotionRT750.

Shenzhen Zmotion Technology is one company that focuses on development & research & sales for automatic motion control technology.

From now, Zmotion takes 13 years in motion control area. Through its wonderful motion control products and rich experiences, it becomes the one of the fastest growing industrial motion control companies in China, also it is the rare company that has complete core technologies of motion control and real time industrial control software.

If you are interested in them, welcome you come [6.1H-E261] and let’s talk on site! Especially if your project / machine belongs to automation aspect. like,laser processing, dispensing, industrial robot, printing and packing, CNC, etc.

And there are many kinds of products and models for you:

*Recommend: ZMC432-V2 Series*

ZMC432-V2 is one multi-axis high-performance EtherCAT & pulse standalone motion controller. It can achieve complex motion control actions because of rich function, then control high-speed & high accuracy equipment.

ECI ethernet motion control cards are economical cards. You can choose pulse one or with EtherCAT one. Also, some advanced functions can be achieved by its enough performance, like, PSO position comparison output (for stable & precise output).

C.      Vision Motion Controller: VPLC Series

VPLC series supports Zmotion motion control algorithm and machine vision algorithm. And VPLC5XX has Linux system, VPLC7XX has Windows system, that is, it can be used as one small IPC.

For machine vision algorithm, it can do vision positioning, vision detection, vision measurement, vision analysis, etc.

Zmotion VPLC Quick Start: https://www.youtube.com/@ZmotionController123

D.      PC-based Motion Control Card

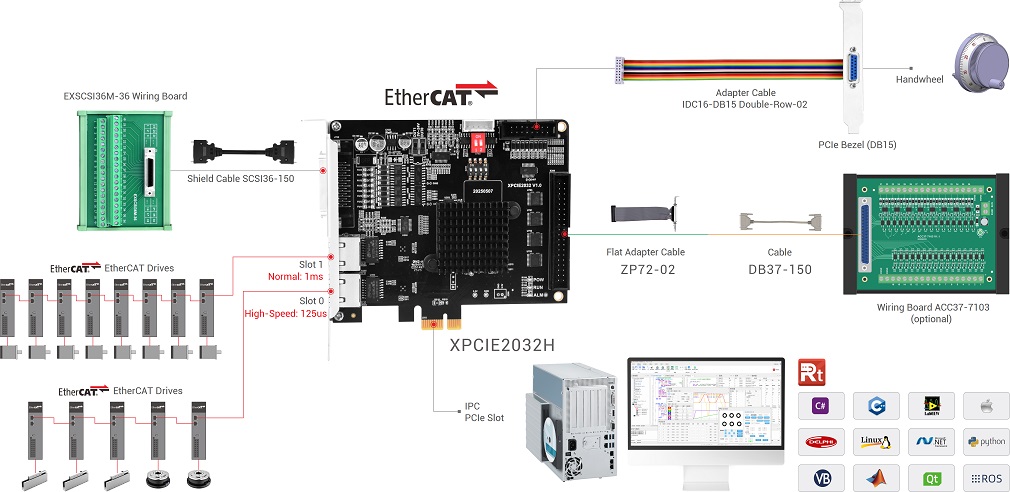

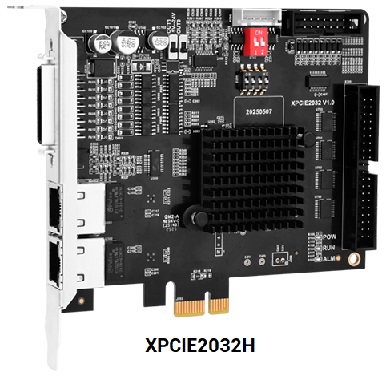

A.  XPCIE2032H | PCIe Real-Time 2-Channel EtherCAT Motion Control Card

“PCIe 2-Channel High-Performance EtherCAT Motion Control Card” ensures the communication. One card integrates 2 independent EtherCAT interfaces. And it can achieve 125us high-speed synchronized control.  Your production line efficiency and flexibility can be promoted a lot!

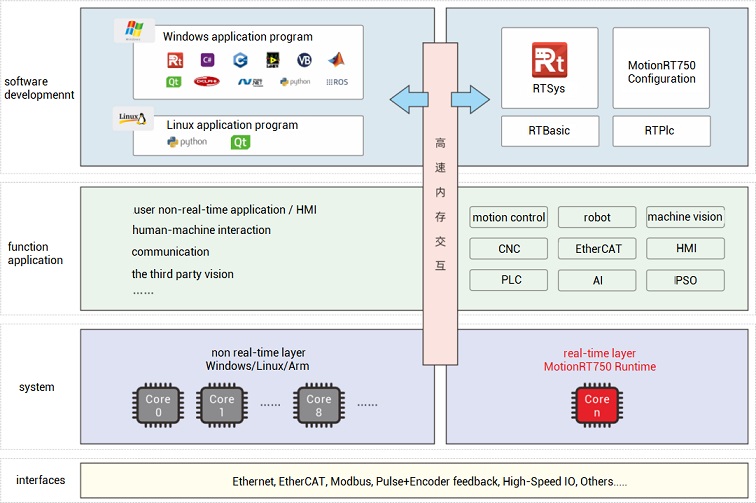

Be with motion control real-time kernel MotionRT750.

EtherCAT communication period can be up to  125us (note: it needs enough CPU performance and real-time).

Compared to traditional PCI/PCIe, Ethernet communication, the speed is  improved about 10-100 times (instruction interaction speed can be up to us level).

You can select the laser push-pull model (XPCIE2032HL), 24V and 5V can be switched.

It supports reliable  EtherCAT redundancy and safer structure, which can solve the problem of “loss of production capacity” that is caused by EtherCAT communication failure.

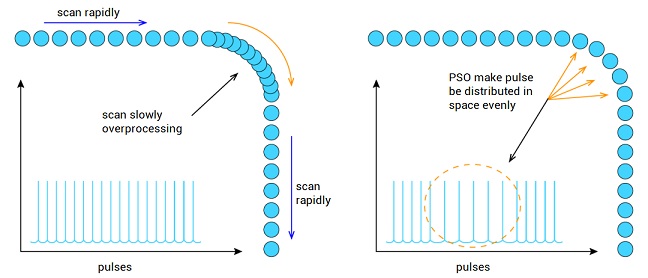

There are multiple channels of high-speed IO, which can achieve real-time motion control functions, for example, PWM, multi-dimensional high-speed position comparison output PSO, speed self-adaption look-ahead, etc.

Up to  254 axes high accuracy motion control. Control period can be  125us to promote equipment performance.

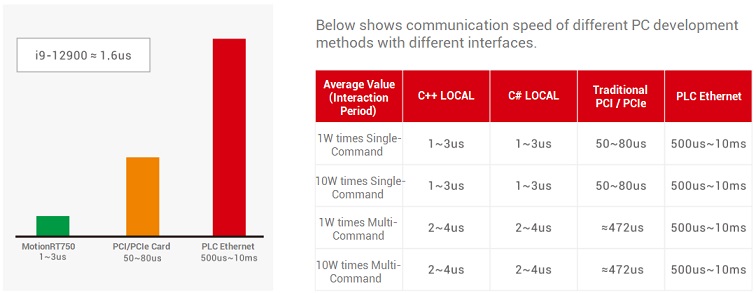

One-instruction interaction time is about 1~3us. Compared to traditional PCI/PCIe/Ethernet, the speed is faster above 10-100 multiples.

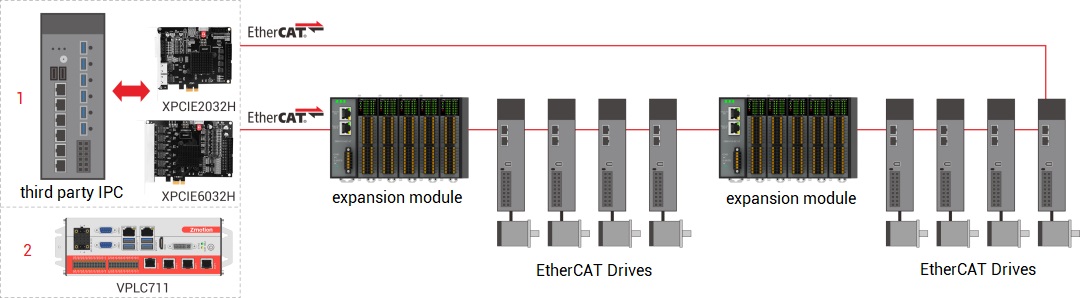

The ring-redundant architecture significantly improves system reliability and operational stability, effectively preventing capacity losses caused by unplanned production stoppages.

When there is blue screen/downtime/crash, it still can run, and the emergency stop function remains effective, providing ample response time for  incident handling and significantly improving industrial control  safety and reliability.
