2025 Shenzhen EeIE will be held in Shenzhen World Exhibition & Convention Center (Baoan Venue) during 8.27-8.29. The theme of this year is “Intelligence Drives Future, Industry Promotes Development”, it mainly focuses on innovation, professionalism, and internationalization. In 2025 EeIE, Shenzhen intelligent equipment industry achievement will be shown in all aspects.

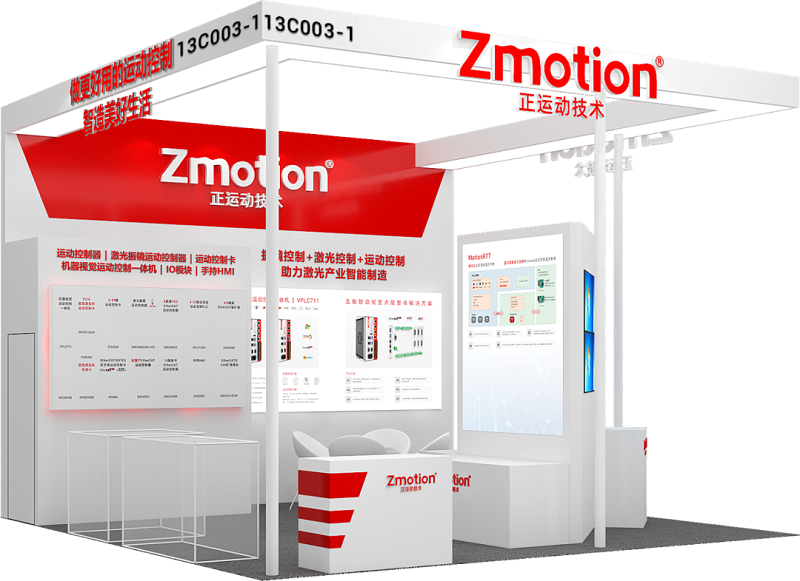

Then, Zmotion also will show our wonderful motion control products and solutions for you in [13C003-1].

Except above products, Zmotion provides all kinds of economic and high-performance motion controllers, including vision function integrated controllers. In motion control area, Zmotion has already researched and developed over 10 years, our products are popular in automatic equipment manufacturers and integrators because of “powerful function & better performance”. And there are multiple models for you, simple and complex motion control all OK after secondary-development. Specifically, they can be applied in laser processing, dispensing, industrial robot, printing and packing, CNC, etc., if you need automatic products and solutions, let’s communicate on site or contact us [zlm@zmotion.com.cn / +86 19925228195], Zmotion team is waiting for you in 13C003-1.

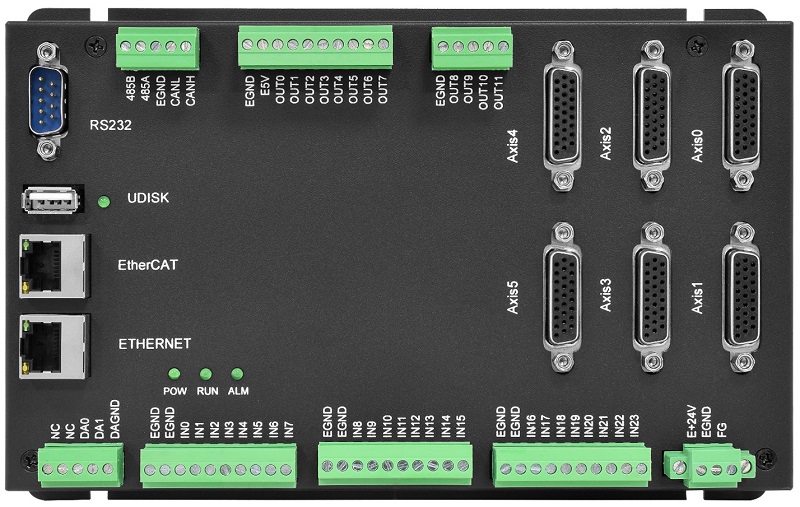

There are multiple axes specifications for you, 4-32 axes.

Pulse output mode: pulse / direction or dual pulses or quadrature pulse.

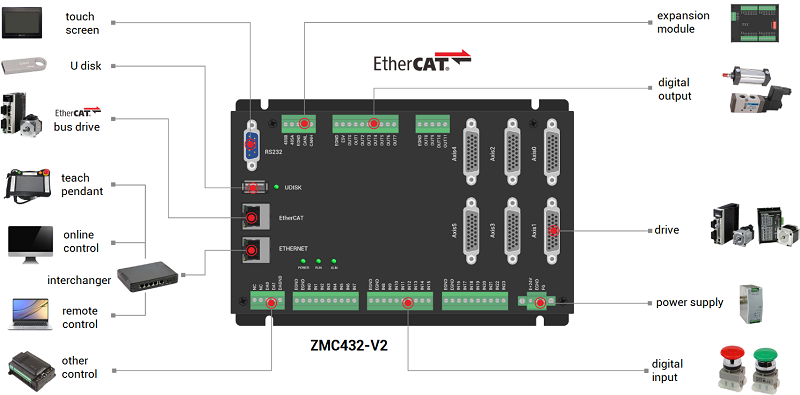

Interfaces: EtherCAT, RS232, RS485, U Disk, Ethernet.

Functions: linear interpolation, arbitrary circular interpolation, helical interpolation, and spline interpolation, electronic cam, electronic gear, position latch, synchronous follow, hardware comparison output (HW_PSWITCH2), hardware timer, precision output, pulse closed loop, pitch compensation, etc.

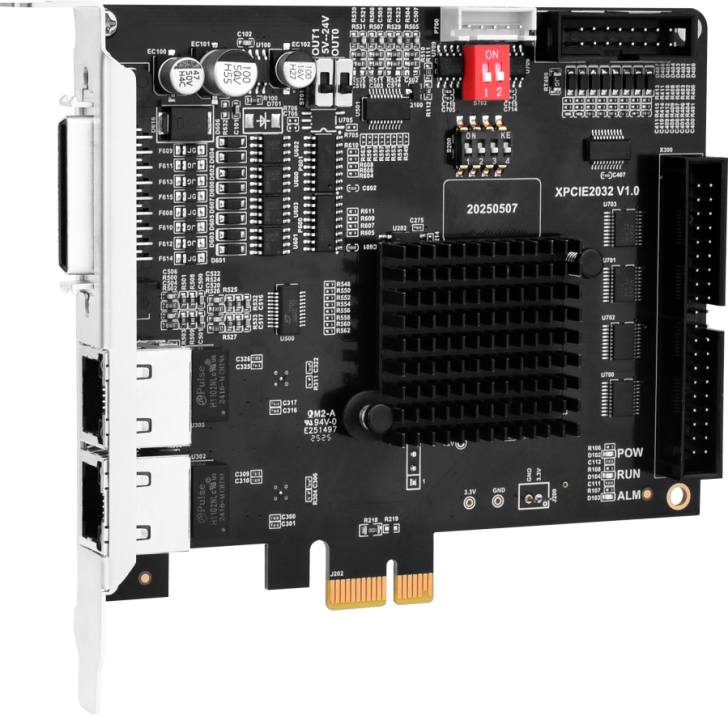

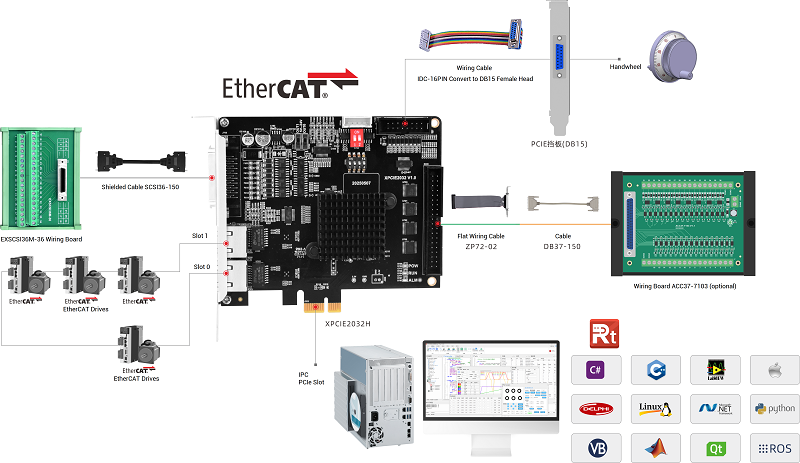

“PCIe 2-Channel High-Performance EtherCAT Motion Control Card” ensures the communication. One card integrates 2 independent EtherCAT interfaces. And it can achieve 125us high-speed synchronized control. Your production line efficiency and flexibility can be promoted a lot!

EtherCAT communication period can be up to 125us (note: it needs enough CPU performance and real-time).

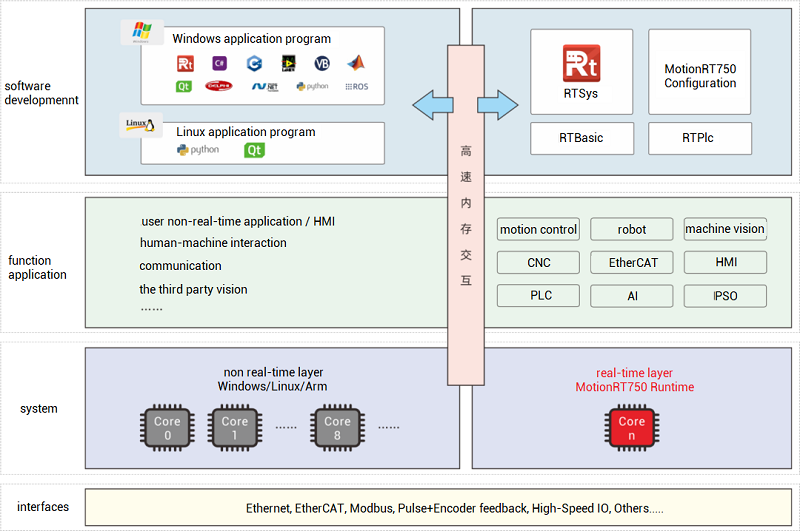

Be with motion control real-time kernel MotionRT750.

You can select the laser push-pull model, 24V and 5V can be switched.

Compared to traditional PC/PCIE/Ethernet, the speed is faster above 10-100 multiples.

There are 16 high-speed INs and 16 high-speed OUTs, and among them, 4 high-speed inputs support latch function, 4 high-speed outputs support position comparison output function and PWM.

Up to 254 axes high accuracy motion control.

Control period can be125us to promote equipment performance.

One-instruction interaction time is in us level. Compared to traditional PC/PCIE/Ethernet, the speed is faster above 10-100 multiples.

The ring-redundant architecture significantly improves system reliability and operational stability, effectively preventing capacity losses caused by unplanned production stoppages.

When there is blue screen/downtime/crash, it still can run, and the emergency stop function remains effective, providing ample response time for incident handling and significantly improving industrial control safety and reliability.
