NEPCON ASIA 2023 takes "PCBA & IC Packaging" as the innovative concept, which will bring together 1,200 exhibitors and brands to showcase new domestic and international equipment and advanced technology solutions related to electronic components, PCBA processes, smart manufacturing, EMS services, and semiconductor packaging and testing.

At the same time, there are several fairs, welcome you to visit.

Zmotion focuses on motion control development all the time, and Zmotion as one of advanced enterprises in motion control area in China, now super high-speed PCIe motion control card, high-performance vision and motion control software and hardware products are researched and developed well.

In electronic semi-conductor manufacture area, high-speed and high-precision is an important indicator of technology development. Zmotion always carries out the theory "technological innovation", then in this ENPCON ASIA 2023, Zmotion will bring multiple high-performance motion control software and hardware products.

Welcome, Zmotion is at booth 7A40 , you could register from here.

Waiting for you, let's develop more in electronic semi-conductor equipment area.

Next, let's preview some of our Zmotion hardware & software motion control information.

video description

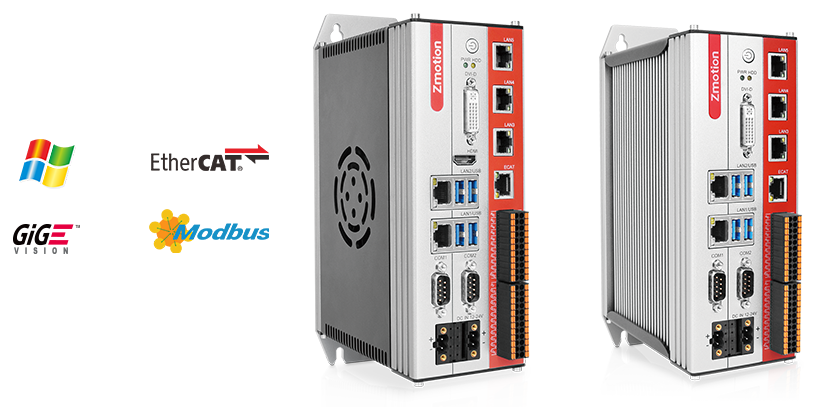

high-Performance x86 platform windows real-time vision motion controller for intelligent manufacture!

video description

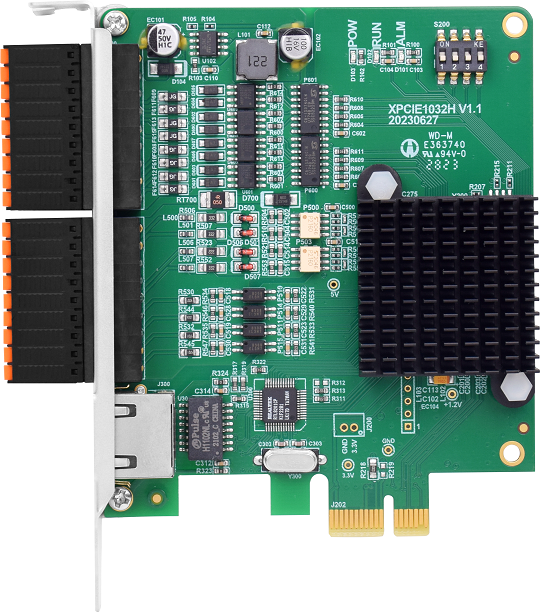

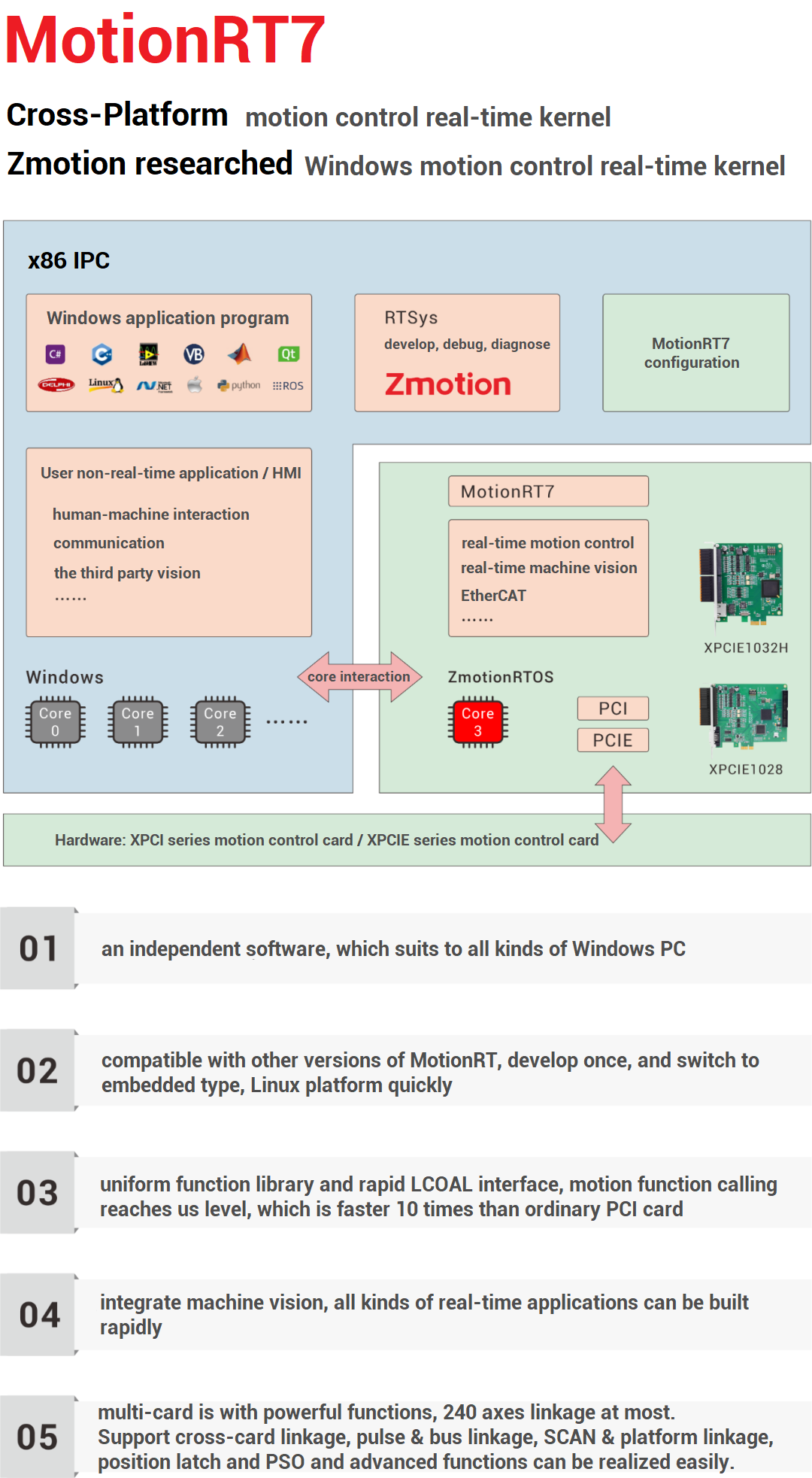

XPCIE1032H matches with Windows motion control real-time kernel MotionRT7 to achieve real-time control system under Windows that cannot be realized by traditional PCI/PCIe.

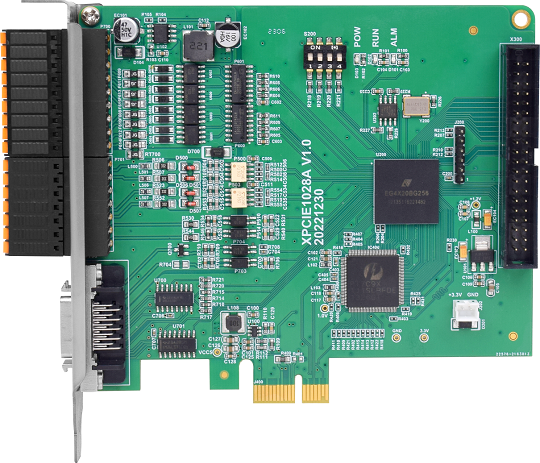

XPCIE1028 motion control card is a PCI Express® bus motion control card specially designed by Zmotion Technology for high-speed visual screening equipment.

It can control multiple stepper motors or digital servo motors, including several cameras and blowing ports.

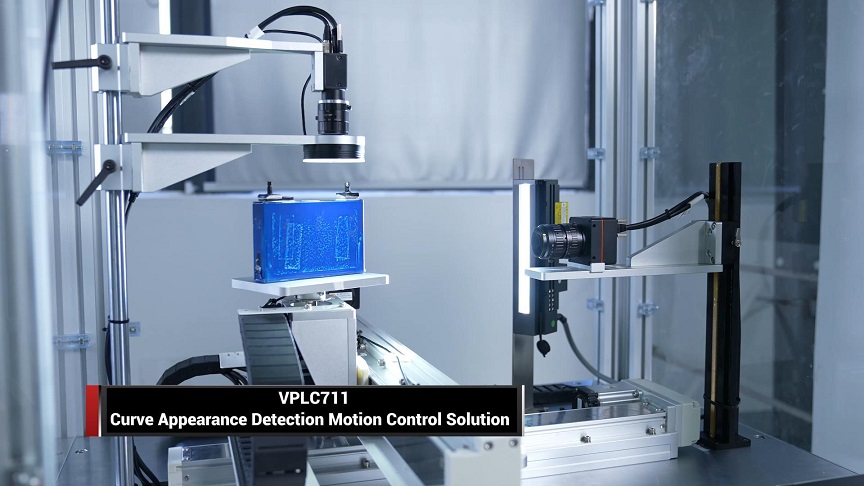

mainly for electronic semi-conductor equipment -- video showing

--solution hardware--

VPLC711

--how the solution is--

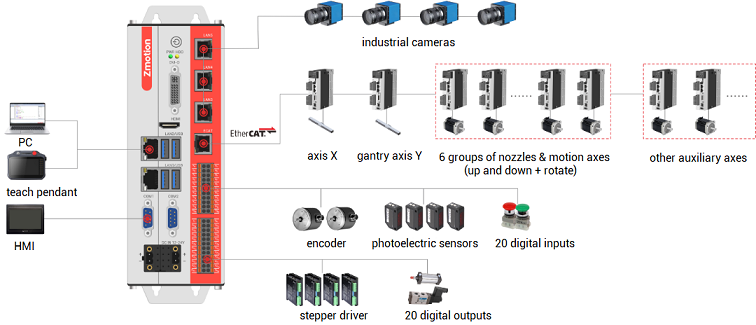

Use gantry architecture motion platform, transfer device, feeding equipment, nozzle, image acquisition system and other core control modules, then match with Zmotion high-performance vision motion controller VPLC711.

VPLC711 supports EtherCAT bus communication and multiple real-time motion control functions, including position latch, multi-dimensional high-speed hardware position comparison output PSO. That is, it can feedback real-time position of motion axes, then it achieves multi-axis synchronous control and high-speed data transmission, ensuring that auxiliary materials can be mounted on the target substrate with high placement accuracy and speed during the transmission, loading and unloading, visual positioning, and placement processes.

--why the solution is--

250us EtherCAT synchronous period achieves multi-axis high-speed and high-precision motion control.

path planning function optimizes nozzle's movement trajectory, then mounting efficiency and speed are promoted.

high-speed vision fly-shooting function can rapidly position and correct the auxiliary materials on 6 nozzles to achieve continuous production.

the torque control function accurately controls the force applied by the nozzle when pressing down the auxiliary materials to prevent the auxiliary materials from being crushed and deformed.

flexibly mount multiple auxiliary materials on a single board or multiple panels without additional fixtures or adjustments, providing convenience for the operation and placement of target substrates of different specifications.

--solution hardware--

VPLC711

--how the solution is--

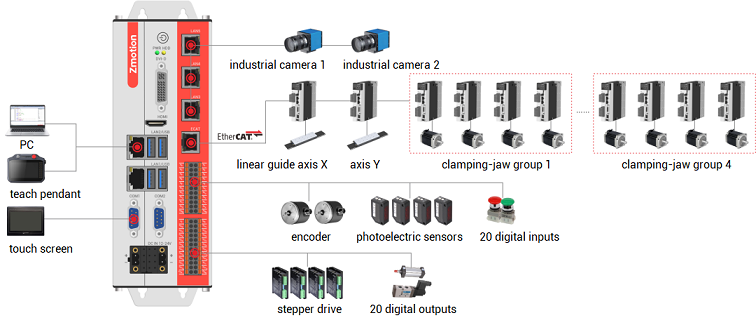

Use XY linear motion platform, transfer device, feeding equipment and other core control modules, then match with Zmotion high-performance vision motion controller VPLC711.

VPLC711 supports multi-core parallel operation ability, which can process motion control and machine vision core tasks of automatic equipment effectively. Then, it ensures that some key steps in plug-in technology can be completed in high-speed and high-precision, such as, path planning, data interaction, element plug-in, cramp control, workpiece uninstall, etc.

--why the solution is--

250us EtherCAT synchronous period achieves multi-axis high-speed and high-precision motion control.

torque precisely controls the clamping force of the jaws to prevent workpiece damage or loosening.

flexibly expand through EtherCAT, multi-axis linkage and multi-workpiece joint can be achieved, then production efficiency is improved.

path planning can optimize movement trajectory of plug-in, promote plug-in efficiency and speed.

vision fly-shooting can trigger plug-in element to make camera take the photo instantly.

--solution hardware--

XPCIE1032H

--how the solution is--

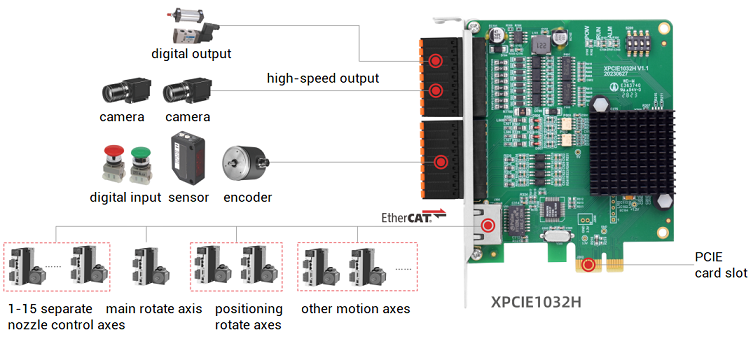

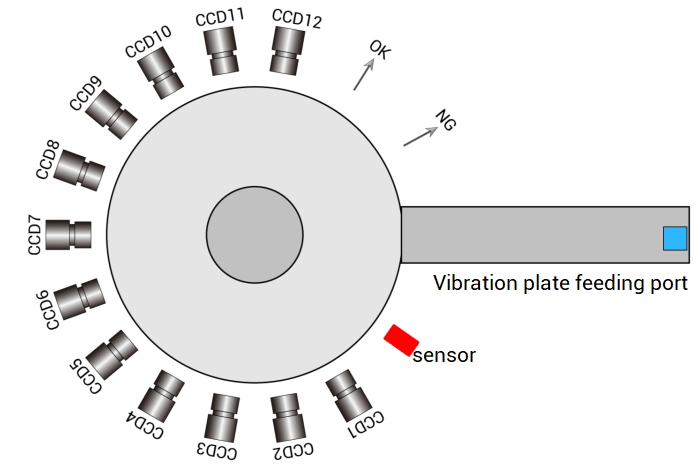

Use rotary axis, multi-independent nozzle, feeding system, image processing system and test functional components, then match with Zmotion high-speed PCIe real-time motion control card XPCIE1032H.

XPCIE1032H is with multi-core parallel operation ability that can process motion control and vision core tasks. In addition, multiple high-speed IOs and EtherCAT bus communication can achieve multi-axis synchronous control and high-speed data transfer, which ensures that several processes test, sort, collect, and tape the chips sequentially within the rotation cycle, so that the entire testing and sorting process runs coherently, efficiently, and stably.

--why the solution is--

test & sort high-speed and stably, productivity can reach 53K/H

rapid motion mode switching (position or speed) achieves high-precision control

250us EtherCAT synchronous period controls multiple nozzles to run up and down quickly and separately, efficiency can be promoted

customized solution is valid, which means you can assign IO signals freely and expand control axes flexibly according to the specific needs

compare to traditional PC + motion control card solution, this XPCIE1032H solution is more stable, with faster interaction speed, about 10% speed can be enhanced

That's all, thank you for your reading.

For more information, please pay close attention to "Support"  and   "Download" , and there are other platforms about Zmotion - Youtube   &   LinkedIn   &   Twitter    &   Tiktok    &   Facebook,  including technical information (development environment, routine code), product showing, company development, etc.

Hope to meet you, talk with you and be friends with you.  Welcome!

This article is edited by ZMOTION, here, share with you, let's learn together.

ZMOTION: DO THE BEST TO USE MOTION CONTROL.

Note: Copyright belongs to Zmotion Technology, if there is reproduction, please indicate article source. Thank you.
