With the development of intelligent manufacture, the market competition is fierce increasingly. That is, the manufacturing enterprise must be with high production efficiency and high product quality at the same time to meet the market needs and promote self-competitiveness in this huge market. And as we all know, the premise and basis of intellectual manufacture is intelligent control level of industrial automation, which directly decides the competition of enterprise.
Then, Zmotion converts the market's stresses into opportunities for growth, one kind of x86 real-time Window machine vision EtherCAT motion controller is developed by Zmotion to meet the requirements, the controller is called VPLC711. From the model name, as our friends, it can be seen it supports both powerful real-time motion control functions and machine vision processing ability, that is, it can be used easily, providing more automation products and solutions with higher efficiency and more precise.
One video description of VPLC711 is for you, please enjoy.
Next, let's see how this kind of vision motion controller VPLC711 is.

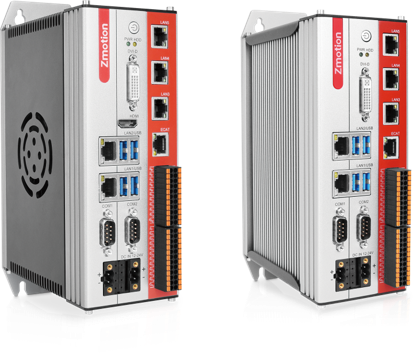

VPLC711 is a high performance machine vision EtherCAT motion controller that is based on x86 platform and Windows operation system. It has powerful computational capabilities and flexibility. In addition, VPLC711 is with outstanding real-time performance and multiple high-speed hardware inputs and multiple high-speed PSO (position synchronized output) output, then it can control multi-axis synchronous motion precisely, also multiple protocol high-speed communication with external equipment can be achieved.
At the same time, VPLC711 vision motion controller supports multiple hardware interfaces and communication protocol, which is convenient to connect to other devices and integrate. What's more, VPLC711 has vision processing function, that is, it can process image data in real time, and then achieve visual detection, visual measurement, visual positioning, etc.
And it is mentioned above, Window operation system is used. Actually Zmotion developed one corresponding motion control real-time kernel MotionRT7, which is built in VPLC711. Namely, it can be seen as one kind of open-type IPC real-time soft controller / soft PLC. Then it can provide flexible integrated motion controller and vision solutions for users.

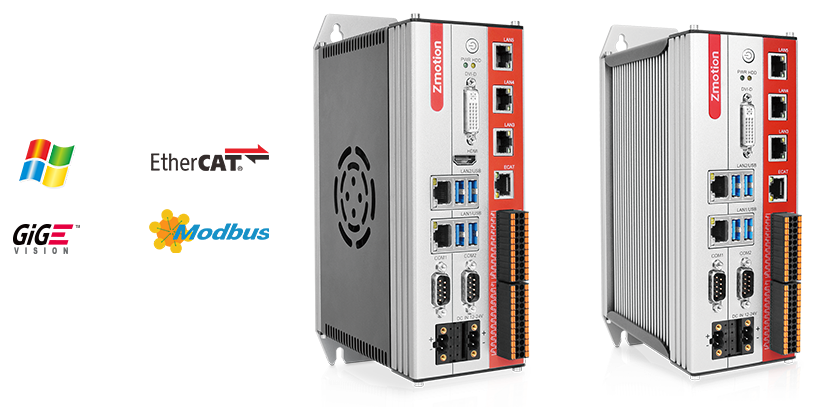

Please refer to above image, VPLC711 advantages are:
one-stop-shop development of motion controller and machine vision, development period can be shortened, and hardware cost can be reduced.
traditional automation equipment solutions of traditional IPC + motion control card / PLC + vision software can be replaced.
multi-core operates in parallel , which processes automation equipment's core tasks, motion control, machine vision in high efficiency.
uniform API function interface is used, and it is compatible with the third party vision software, then user's development method and usage habit can be matched highly and user system can be integrated conveniently.
motion controller real-time kernel MotionRT7 is built in, non-real-time of control system under Windows can be solved, that is, it can achieve real-time, the instruction interaction speed is faster 10 times than traditional PCI/PCIE card.
Let's see VPLC711 hardware and function.
--use x86 high-performance CPU, and EtherCAT supports 64 axes synchronous operation in 1ms.
--there are RS232, RS485, EtherNet*5, EtherCAT, USB3.0*4 interfaces.
--there are 20DI, 4 are high-speed color code latches, and 2 groups of high-speed single-ended encoder.
--there are 20DO, 4 are high-speed single-ended pulse axes, and 4 groups of high-speed PWM.
--support DVI-D, which means it is displayed through HDMI, IP configuration of dual-ethernet-port is valid.
Now, we have learnt the hardware interface of VPLC711.
Then, see functions, that is, motion control function and machine vision function.
(1) Motion Control Functions
point to point, linear interpolation, circular interpolation, continuous trajectory processing, robotic arm structure.
electronic cam, electronic gear, synchronous follow, position latch, virtual-axis superposition.
S curve acceleration and deceleration, SS curve acceleration and deceleration, smoother trajectory motion.
high-speed PSO (position synchronization output) output, 1D/2D/3D high-speed position synchronous output.
vision fly-shooting, high-speed dispensing, laser processing, etc.
(2) Machine Vision Functions
vision positioning, Blob analysis, vision measurement, vision detection and recolonization , etc.
support the third party vision.
VPLC711 vision motion controller is mainly used for occasions of high-speed and high-precision, and for medium and large production lines and dedicated machine system. Specifically, one stop shop vision and motion control solutions are provided to meet adversity of industrial automation.
Now that the VPLC711 is launched for market requirements, so...
From above, it can be seen that VPLC711 can be applied in 3C electronics, lithium photovoltaic, automotive, laser processing, precision dispensing, SMT processing, medical and robotic sectors, etc.
VPLC711
this kind of advanced high-performance x86 platform real-time Windows machine vision EtherCAT motion controller provides powerful motion control and machine vision to
help you achieve intelligent manufacturing and precise production.
