Before our development configuration, we need to know which hardware we could use. Here, ECI2828 motion control card is used. Actually Zmotion ZMC series motion controllers and other models of ECI motion control cards all can be chosen, which depends on your own requirements.

--Brief Basic Introduction--

ECI2828 not only belongs to economical motion control card, but also supports rich motion control functions, such as, up to 16 axes linear interpolation, any circular interpolation, space arc, helical interpolation, electronic cam, synchronous follow, virtual axis, robot instructions, etc. And real-time motion control can be achieved through optimized network communication protocol.

--Hardware Configuration--

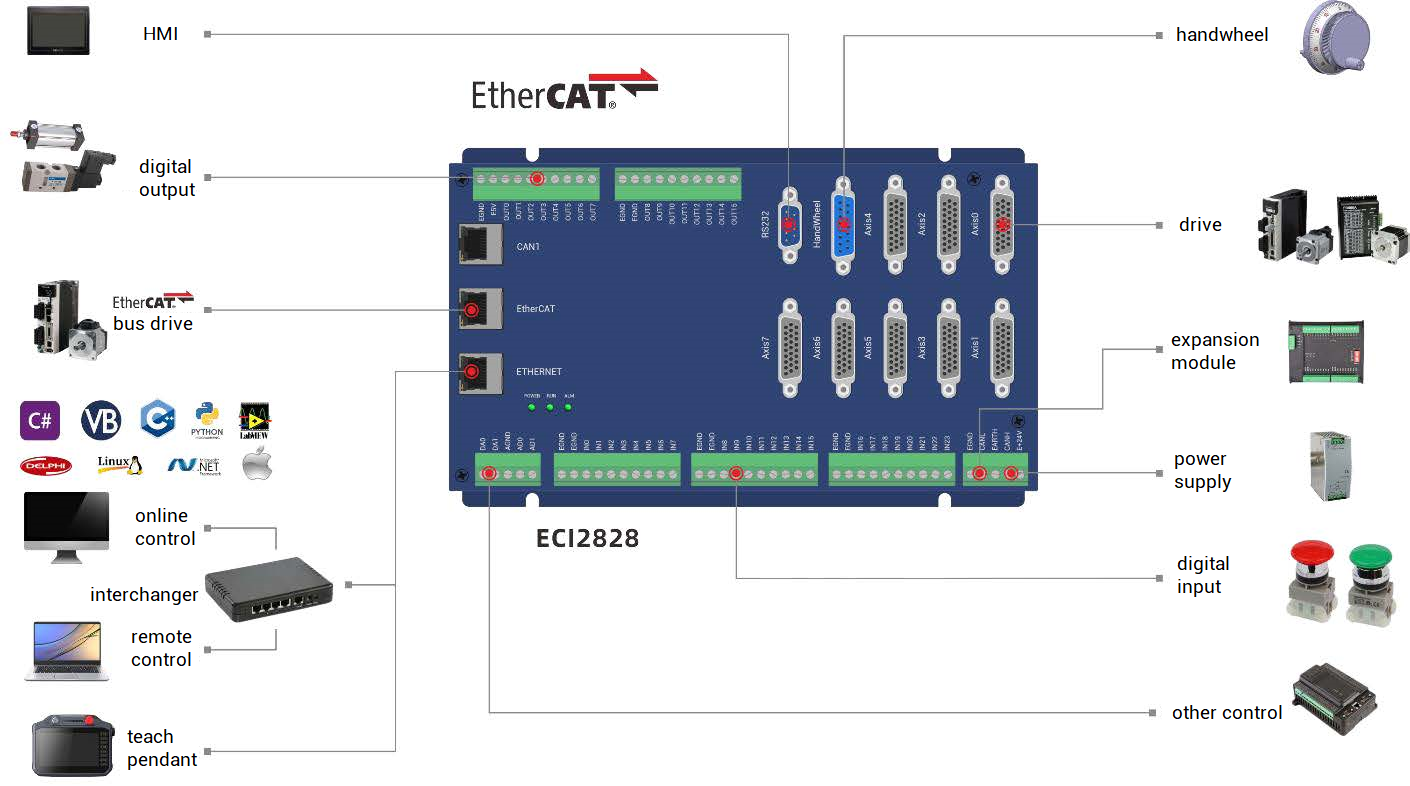

ECI2828 motion control card is linked with PC through ethernet and RS232, then card can receive the command from PC to run. When there is no enough motion axes, IO or analog resources, expansion modules can be connected through EtherCAT bus and CAN bus.

--Programming Method--

For Zmotion motion controller and motion control card, there are two programming methods , host computer programming languages or ZBasic, ZPLC, ZHMI that are developed by Zmotion. Here, upper computer programming platform QT is used for ECI2828, and VC, VB, VS, C++, C#, and others all can be used. It only needs to call dynamic library "zmotion.dl" when programming is running. While debugging, we could connect ECI2828 to ZDevelop that is one free programming software launched by Zmotion itself for debugging and observing.

(1) New Build Qt Project

a. build one new Qt project

b. select project path

c. select Qt compile set (kits)

d. select basic type

(2) Copy Files Related to Function Library to New Created Project

(3) Add Static Library (zmotion.lib) of Function Library to New Created Project

a. add function library 1

b. add function library 2

c. add function library 3

d. add head file related to function library to project

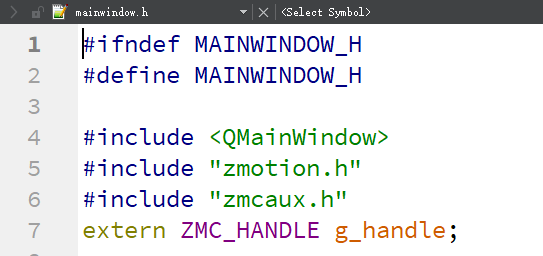

e. state head file and define connection handle

We talked about hardware support above, now let's see what we have and what we need to use in the software level.

For host computer development, Zmotion provides one uniform PC function library, there are PC programming manual and examples of each platform and each programming language. They can be referred from here or contact us directly.

Generally, ethernet is used to connect controller to IPC, the corresponding connection interface is ZAux_OpenEth(), if the connection is successful, the interface will return one link handle, then it can control the controller through this handle.

Next, let's see some basic operation PC commands.

(1) how to build the connection

(2) how to achieve multi-axis interpolation

(3) how to get axis position information

(4) how to get axis speed information

(1) Multi-Axis Interpolation Motion in Qt Interface

(2) Development Steps

a. call controller link interface "ZAux_OpenEth()" in construct function to build the connection with controller, when connected successfully, open timer to monitor controller axis information.

b. update each axis' position and speed information through the timer.

c. call multi-axis interpolation command to do multi-axis interpolation motion through open button.

d. call axis stop command to stop motion through slot function of stop button.

(1) Copy  Corresponding Linux Library to Project Folder

(2) Add Function Library's Static Library (libzmotion.so) to New Created Project.

a. add function library 1

b. add function library 2

c. add function library 3

(3) Compile Again, Then Run Directly.

(4) Debug & Monitor

Compile and run the routine, at the same time connect to ZDevelop software to debug. In this way, axis parameters and motion situation all can be watched in real-time.

--multi-axis interpolation X-Y position waveform--

--multi-axis interpolation X-Y position waveform (continuous interpolation is OFF)--

That's all, thank you for your reading -- EtherCAT Motion Control Card QT Development Tutorial (1) | Development Environment Configuration & Simple Motion Control Example
