For Zmotion EtherCAT motion edge controller ZMC432H, we had learnt its hardware information, API function encapsulation principle, RTSys (ZDevelop) development, debug, and diagnosis, and C++ motion control. Today, let's see other languages, " Python + QT ".
EtherCAT motion control edge controller ZMC432H supports self-researched and self-controlled software and hardware. And this EtherCAT edge controller is an independent multi-axis motion controller that is compatible with EtherCAT bus and pulse.
32 axes motion control can be achieved. At the same time, Zmotion remote HMI function is valid, which means network configuration display is provided to watch and adjust parameters in real-time.
ZMC432H has rich hardware interfaces and control functional modules, then effective and stable motion control and real-time data acquisition can be achieved to meet application requirements of both industrial control and industrial internet.
What's more, Linux system is built in ZMC432H. That is, it can be connected through local LOCAL interface, then, instruction interaction speed can be faster. The one interaction time of one single instruction and multiple instructions is about 40us.
ZMC432H hardware video description
1. Python + QT Motion Control Development
Configure Python + QT Development Environment & Install Required Tools
a. download python interpreter
b. install pyside 2 or pyside 6
This depends on python interpreter version, for interpreter with higher version, pyside should be used. There are 2 methods to install pyside2.
method 1: use win+r to open running interface, then input cmd (when installing python interpreter, configure environment variables well according to installment guidance, otherwise following commands can't be executed successfully), pip install pyside2 -i https://pypi.douban.com/simple/.

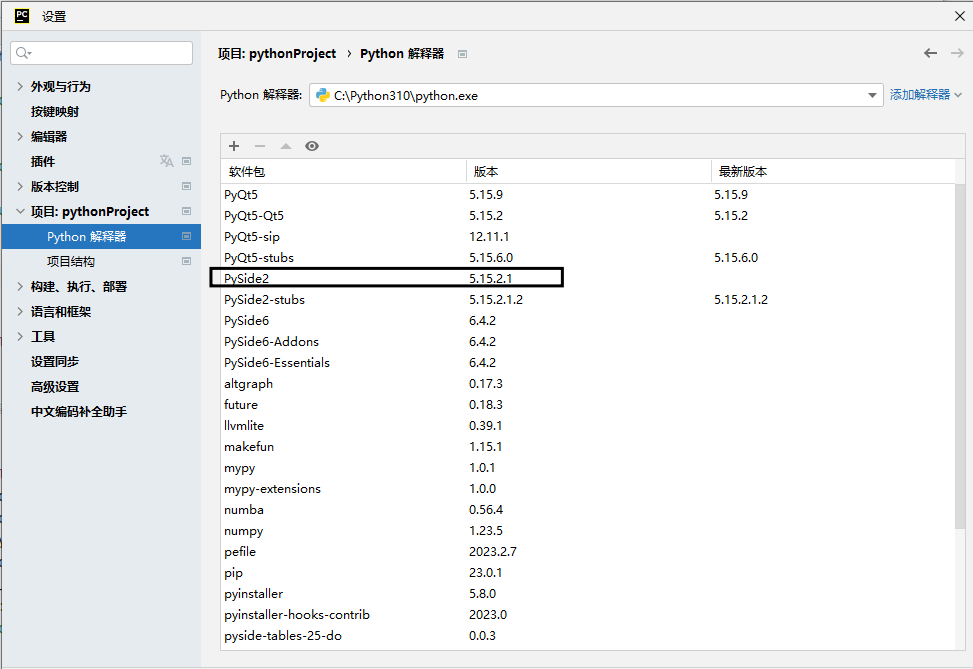

method 2: install in pycharm
c. install PyCharm Community Edition
And then in below interface, click "+" to add required tool, for example, pyside2.
d. In Pycharm, configure customized tools (used for QT interface editing)--
--open "Tool" editing as below steps--
--self-define Pyside2-uic--
Program filling & editing: Python install - \Scripts\pyside2-uic.exe
Arguments filling & editing: $FileName$ -o $FileNameWithoutExtension$.py
Working directory filling & editing: $FileDir$
--self-define QtDesigner--
Program filling & editing: Python install - \Scripts\pyside2-designer.exe
Working directory filling & editing: $ProjectFileDir$
--after configured custom tools, it can be used directly in "PyCharm" menu--
click "Tool -- Qt -- Qtdesigner" to enter UI design interface.
right click "ui" file, then click "Qt -- Pyside2 -- uic" to generate py file of ui file.
New Build Python Project and Add Function Library
a. use PyCharm Community Edition 2022 to open one new folder, or new build one directory after entering PyCharm Community Edition 2022, then add Python file in directory.
b. obtain Zmotion PYTHON function library and corresponding routines, you can download them from here or contact us. For Windows system, add zauxdll.dll, zmotion.dll and zauxdllPython.Py into new created folder.
Check PC Function Manual
The PC programming function library manual can be obtained from "download/software manual", or please contact us.
Then there are many commands:
a. connect to controller, then get link handle.
b. configure IO signals.
c. interfaces of homing motion, and homing mode details.
"+ 10" means it reverses after meeting position limit, that is, it will not stop when met position limit. For example, 13 = mode 3 + 10 (inverse finding), which is used when origin is in the middle.
One Single-Axis Homing Routine Developed by Python + QT
a. routine interface:
b. program example:
--load QT's UI file in Python--
from PySide2.QtWidgets import QMessageBox
from PySide2.QtCore import QFile, QTimer
from PySide2.QtUiTools import QUiLoader
q_state_file = QFile("mainweiget.ui")
q_state_file.open(QFile.ReadOnly)
self.ui = QUiLoader().load(q_state_file)
q_state_file.close()
Note: at this time, self.ui means ui in qt.
--in event processing function of link button, call controller connection interface function "ZAux_OpenEth()" to connect to controller, then open timer 1 to watch controller status after linked--
--watch controller state through timer--
--use event processing function of homing button to initialize parameters before homing and to call corresponding homing mode for homing operation--
--stop current motion through event processing function of stop button--
--clear coordinates of current axis through event processing function of coordinates clearing button--
2. Debug & Watch
compile and run the routine, at the same time, connect to controller through RTSys (ZDevelop), then watch controller state in ZDevelop.
Python + QT single-axis homing routine description
image 23
video description
