Product name ：ZHD500X

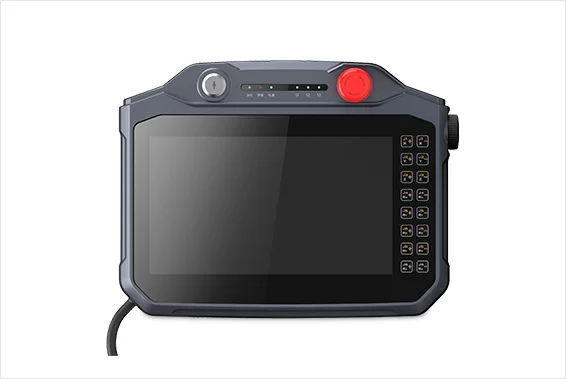

ZHD500X is a touch screen teaching box with network display. The teaching box must be used in conjunction with a controller that supports ZHMI functions. The software development of the controller requires ZDevelop3.10 or above.
The teaching box has a USB port, a TFT display with a resolution of 1024*600, 16 buttons, an emergency stop switch, a key selector switch, and a handwheel that can be pressed.
The ZHD500X supports a touch screen, which can be used in conjunction with buttons and touch, and a stylus can be used to facilitate operations in some scenarios.
Beautiful appearance + ergonomic shape design, which effectively improves the operator's comfort.
The 10.1 inch touch screen expands the visual range and improves operation fluency.
Use POE power supply, simplify the installation method, reduce the weight, and make the installation and operation easier.
Rich peripherals, means it can adapt to a variety of applications.
| Item | ZHD500X | |
| Display | Display size | 10.1" |
| Resolution | 1024*660 | |
| Luminance | 320 | |
| Touch | Resistive touch screen | |
| Display color | 24 bits true color | |
| Peripheral | Emergency stop | P |
| Selection switch | P | |
| Handwheel | P | |
| Enable switch | order selectably | |
| Interface | POE (active Ethernet) | P |
| USB | P |
There are peripherals of ZHD500X:
1. Emergency stop
2. Seletction switch (3 positions)
3. Enable button (itself doesn't have, it needs to evaluate)
4. Pat pasting button
5. Rotation encoder
6. Indicator light
7. 10.1 inch TFT display screen
8. Touch screen
9. Stylus
| Name | Version No | Format | Size | Download |
|---|---|---|---|---|
| ZHD500X Handheld Box Manual Version 1.0 | V1.0 | 535KB | Download |
