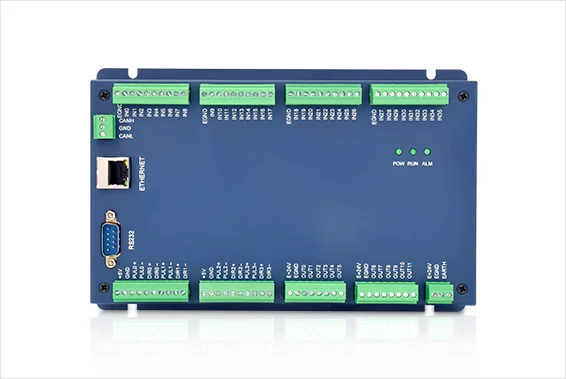

Product name ：ECI1408
Specification: 4-Axis Network Motion Control Card

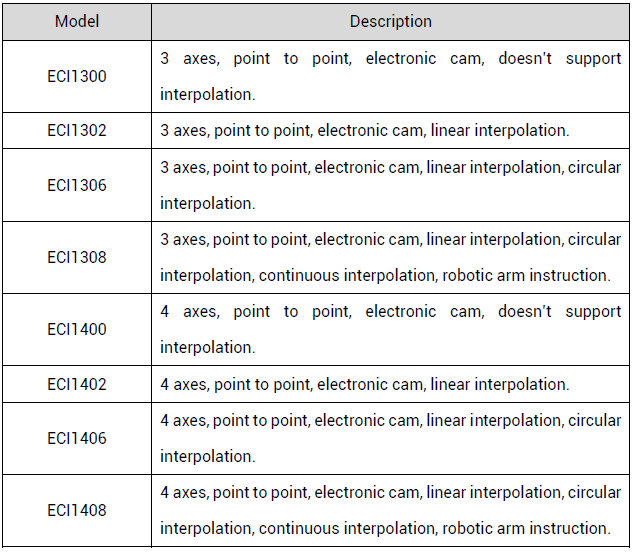

ECI1000 series control card itself supports 4 axes at most, but motion control can be extended to 6 axes to achieve linear interpolation, any circular interpolation, space arc, helical interpolation, electronic cam, electronic gear, synchronization follow, virtual axes, etc., and real-time motion control can be achieved through optimized network communication protocol.
ECI1000 series economical multi-axis motion control card can be used in those pulse applications within 6 axes, such as, electronic semiconductor equipment (testing equipment, assembly equipment, locking equipment, soldering machine), dispensing equipment, assembly line, etc.
4-6 axes motion control.
Pulse output mode: pulse / direction or dual pulses.
Support encoder input, which can be configured as handwheel input mode.
Maximum pulse frequency output of each axis: 5MHZ.
256 isolated inputs and 256 isolated outputs can be extended at most through CAN bus.
Axis position limit signal / origin signal port can be configured as any input at will.
The maximum output current of general digital outputs can reach 300mA, which can directly drive some kinds of solenoid valves.
Support linear interpolation, any circular interpolation, helical interpolation of 6 axes at most.
Support point to point, electronic cam, linear interpolation, circular interpolation, continuous interpolation.
Support file 3 single-task programming in ZBasic.
A variety of program encryption methods to protect the intellectual property rights of customers.
Features

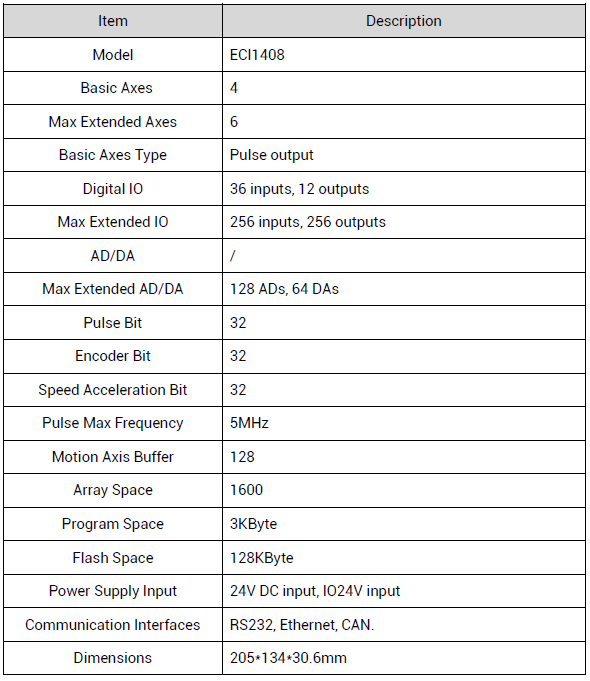

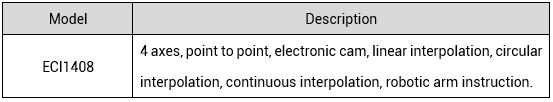

Parameters

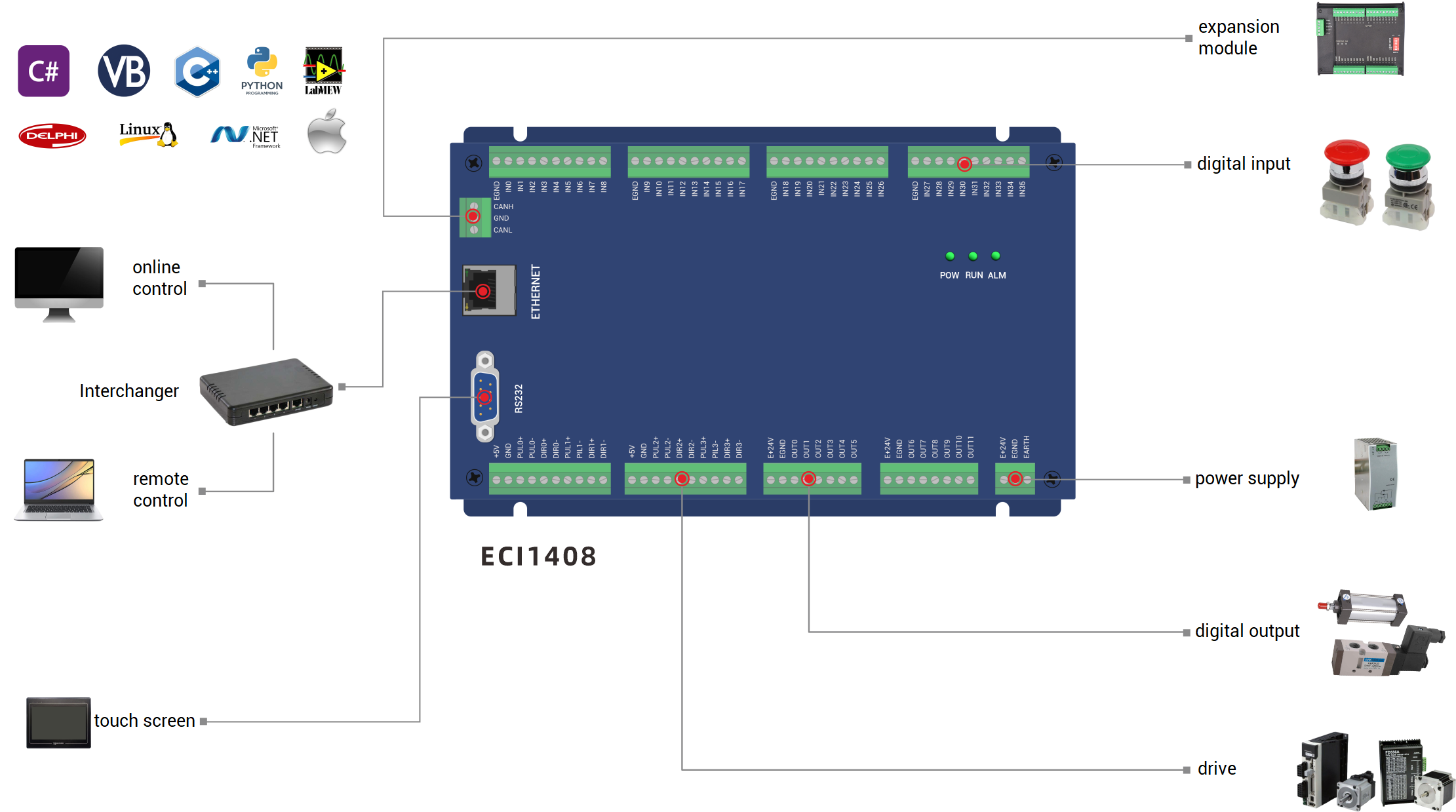

System Architecture
